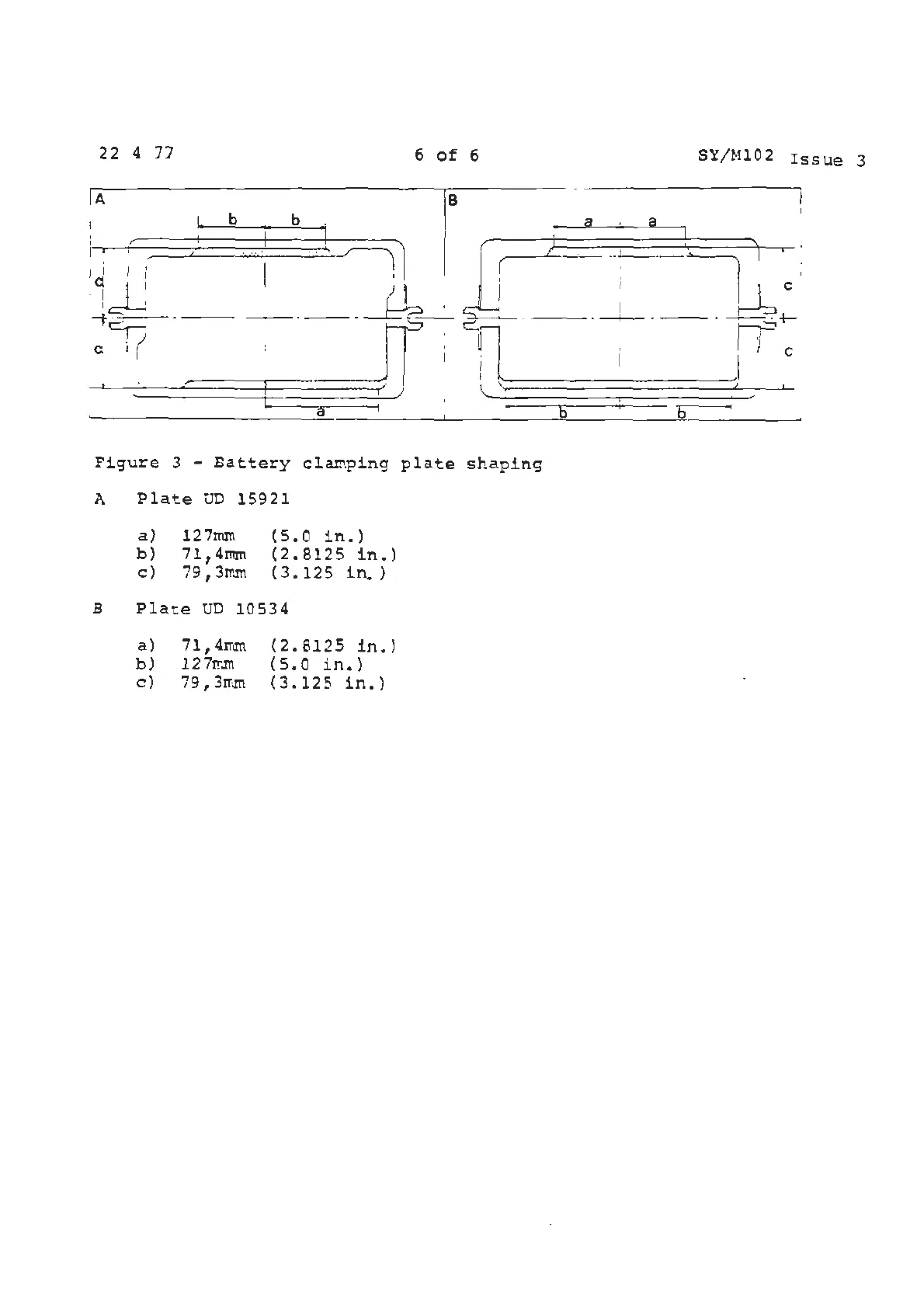

Figure 3 - Battery clar . ping plate shaping
A Plate UD 15921
a )
b)
c)
127mm
71
1
4mm
79, 3I!'Jt\
( s. 0 in.)
(2.8125 in.)
(3.125 in.}
B Pl ate UD 10 534
a) 71, 4rnm (2. 8125 in.)
b) 127~.m (s.o in. )
c) 79,3rrm (3.125 in.)
