Assembly on the right side
The mounting clamp is pre-
assembled for fitting on the right
side of the frame. The position of
the adjustment holes should not be
changed.
The umbrella part of the clamp
(with the plastic wing nut) is pre-
assembled in the mounting bracket
as follows:
• A screw in the square hole h;
• An Allen screw in hole a.
And that is how the mounting clamp can be assembled for the
right side of your Rollz Flex.
Assembly on the left side
Do you prefer to attach the umbrella
to the left side? Then use hole e
in the mounting bracket (figure 7).
Please ensure that the small spacer
ring X is placed between the two
clamps of the umbrella part, around
the long Allen screw (as showed on
figures 2 and 3).
Figure 7: Mounting
bracket (part of the
clamp).

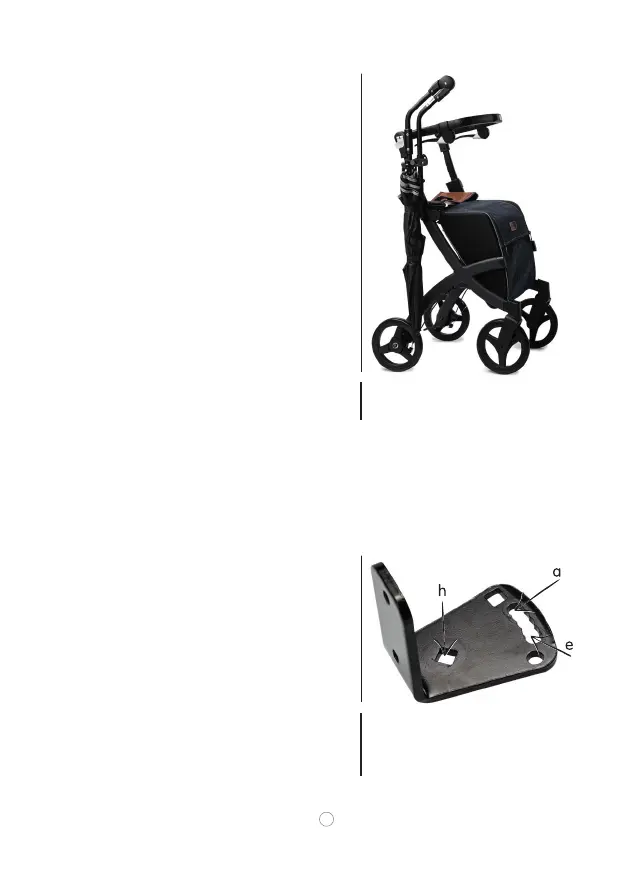

Figure 6: Rollz Flex
umbrella in the mounting
clamp.
