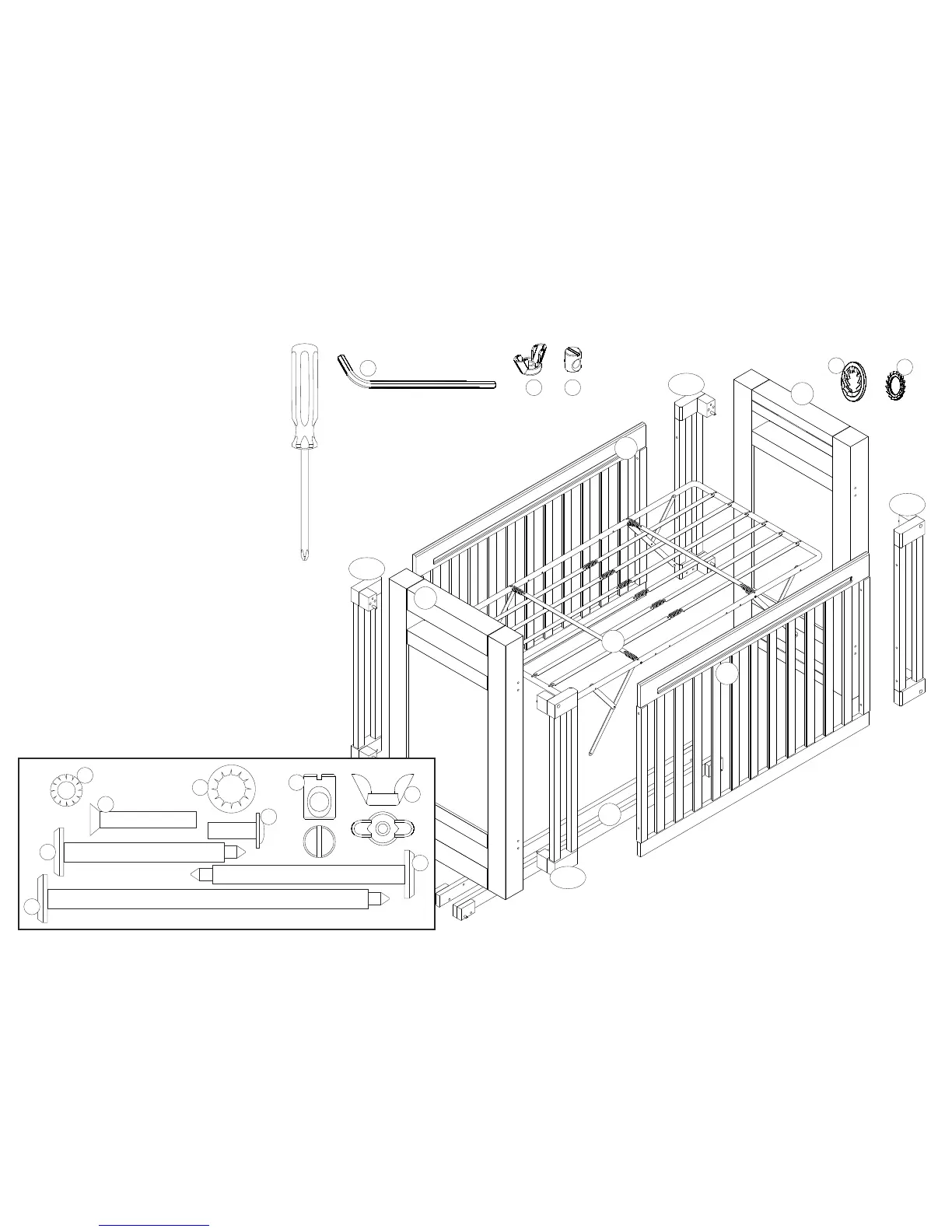

Please locate and confirm that
you have the following parts:
F. fixed side = 2
P. panel = 2
S. stabilizing bars = 2
M. mattress support = 1
CP. corner piece = 4
one bag of hardware with the following:
1. Allen wrench = 1
2. one storage pouch and two plastic ties
3. Allen bolts (1 31/32" or 50 mm) = 8
4. Allen bolts (2 3/8" or 60 mm) = 4
5. Allen bolts (3 15/16" or 100 mm) = 8
6. barrel nuts = 4
7. round head bolts (1 3/16" or 30 mm) = 4
8. round head bolts (19/32" or 15 mm) = 4
9. "butterfly" type nut = 4
10. bigger “internal star” lock washer = 20
11. smaller “external star” lock washer = 8
Required tools:
CAUTION:
Allen wrench (supplied), Phillips
screwdriver (not supplied), flat screwdriver
Do not use a power screwdriver which
can cause screws to break or strip
(not
supplied).
6
1
The item
number of your
product is located on
the inner side of the left
pannel, on a black and white
label. Please, refer to this number
in the event that you need to call
ROMINA FURNITURE or your local
distributor.
Note:
Thank you.
Note: The letter that identify
a part is the first letter of the
respective part name (such
method is employed to
facilitate parts recognition
between the drawings and
the parts list).
Phillips screwdriver (not supplied)
6
Note:
TIGHTEN COMPLETELY
During the assembly process whenever using screws or
bolts, check
each by placing the screw / bolt on the upper diagram which is
drawn in actual size. Be sure to use the proper size and shape
specified in the instructions.
Be sure to the screws / bolts when
you are asked to do this.
11
10
printed in full size
5
3
4
11
10
9
7
8
6
