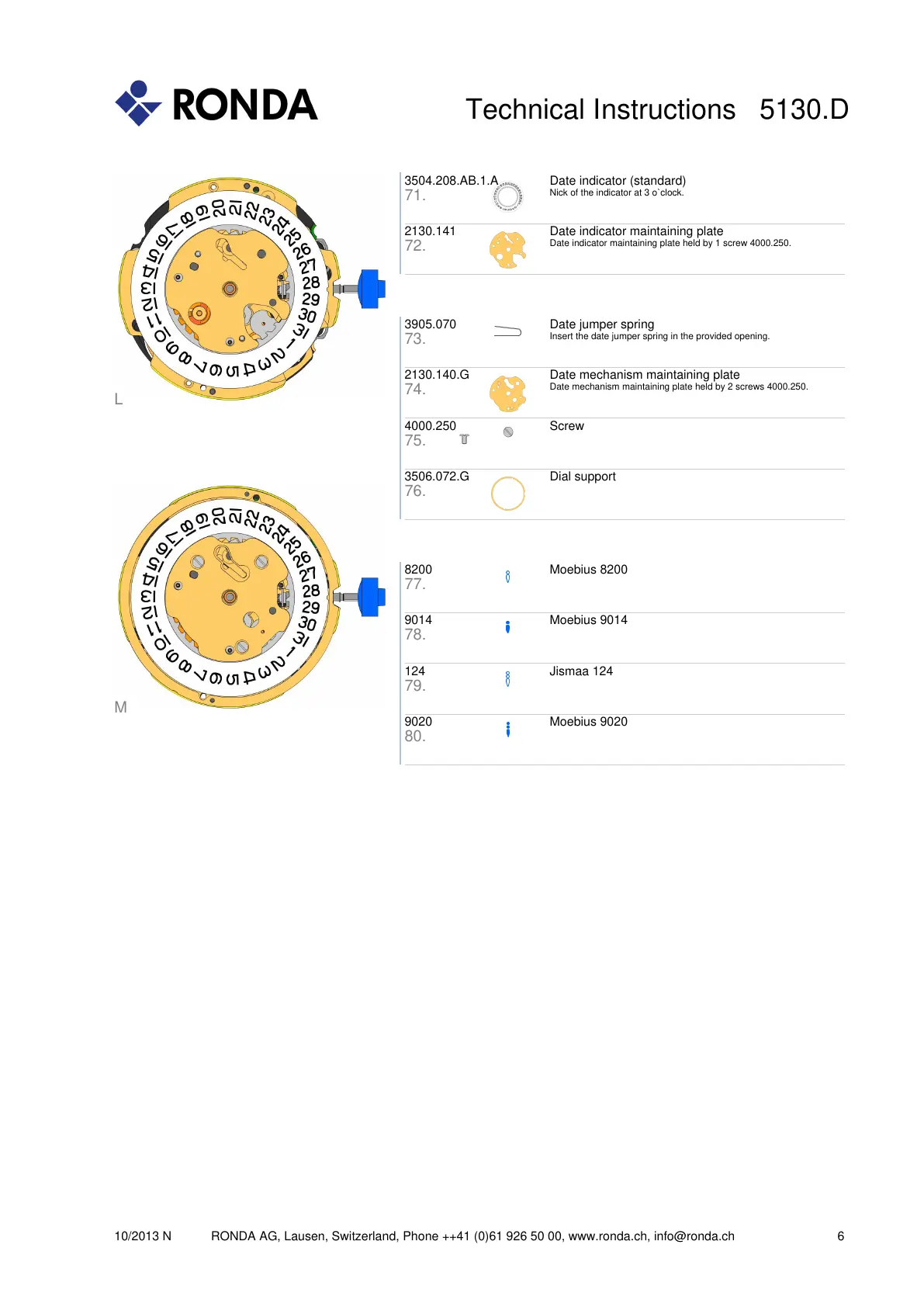

Technical Instructions 5130.D
10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 6
3504.208.AB.1.A Date indicator (standard)
71.
Nick of the indicator at 3 o`clock.
2130.141 Date indicator maintaining plate
72.
Date indicator maintaining plate held by 1 screw 4000.250.
3905.070 Date jumper spring
73.
Insert the date jumper spring in the provided opening.
2130.140.G Date mechanism maintaining plate
74.
Date mechanism maintaining plate held by 2 screws 4000.250.
4000.250 Screw
75.
3506.072.G Dial support
76.
8200 Moebius 8200
77.
9014 Moebius 9014
78.
124 Jismaa 124
79.
9020 Moebius 9020
80.
L
M
