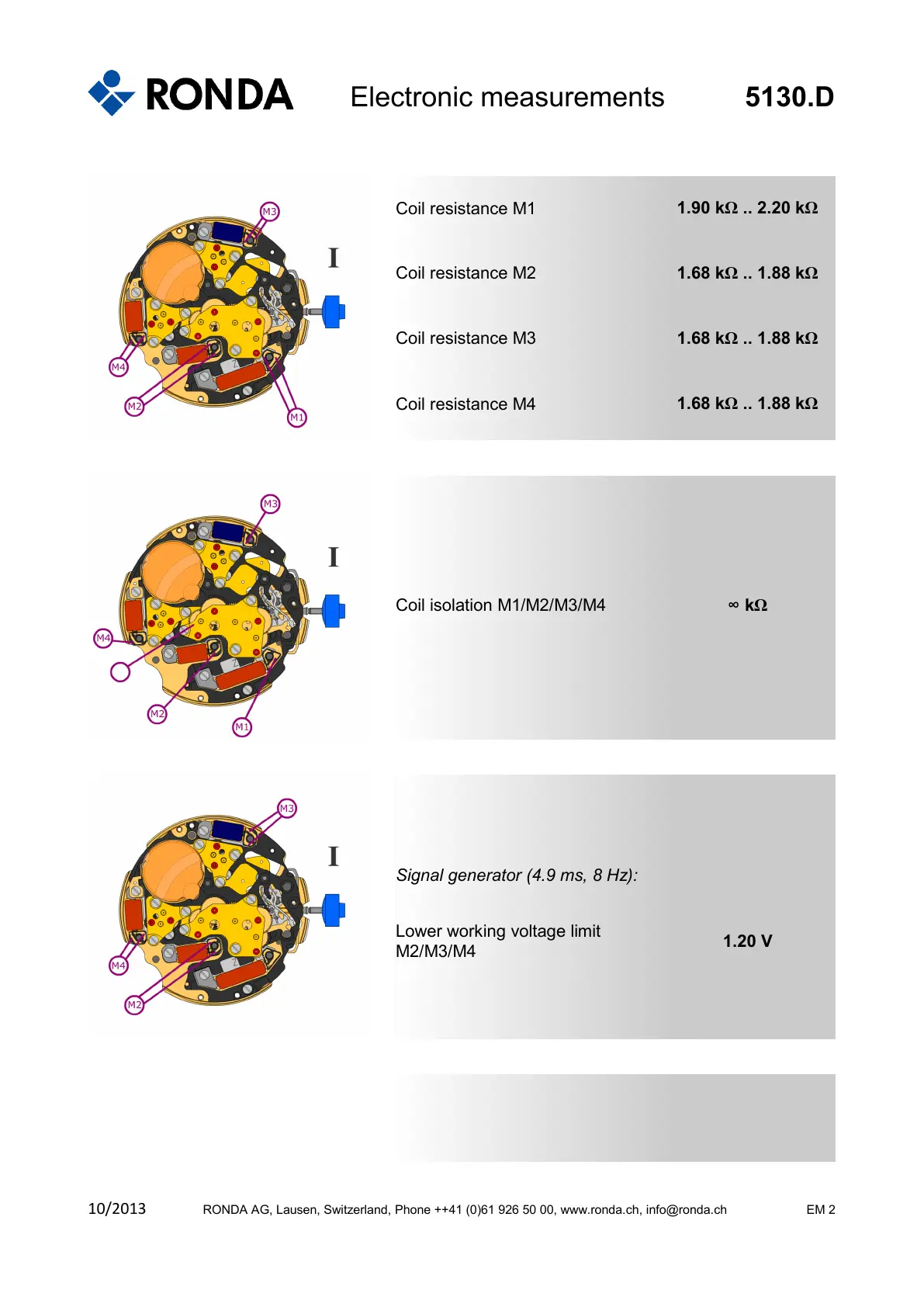

Electronic measurements
5130.D
Coil resistance
M1
1.90 kΩ .. 2.20 kΩ
Coil
resistance M2
1.68 kΩ .. 1.88 kΩ
Coil resistance
M3
1.68 kΩ .. 1.88 kΩ
Coil resistance
M4
1.68 kΩ .. 1.88 kΩ
Coil
isolation M1/M2/M3/M4
∞ kΩ
Signal generator
(4.9 ms, 8 Hz):
Lower working voltage
limit
M2/M3/
M4
1.20 V
