CONTINUED FROM PAGE 23 -- Attaching Desk Pivot Rod Plates to Kick Plate, and hooking the Kick Plate to the Bed Case
Attach the Desk Pivot Rod Plates to the kickplate by screwing them on with K123 screws.
Note that there are “left” and “right” pivot rods so follow the pictures carefully.
In the Furniture Biz, “left” and “right” are always reckoned from the point of view of the user standing in front and facing the completed product.
STEP1

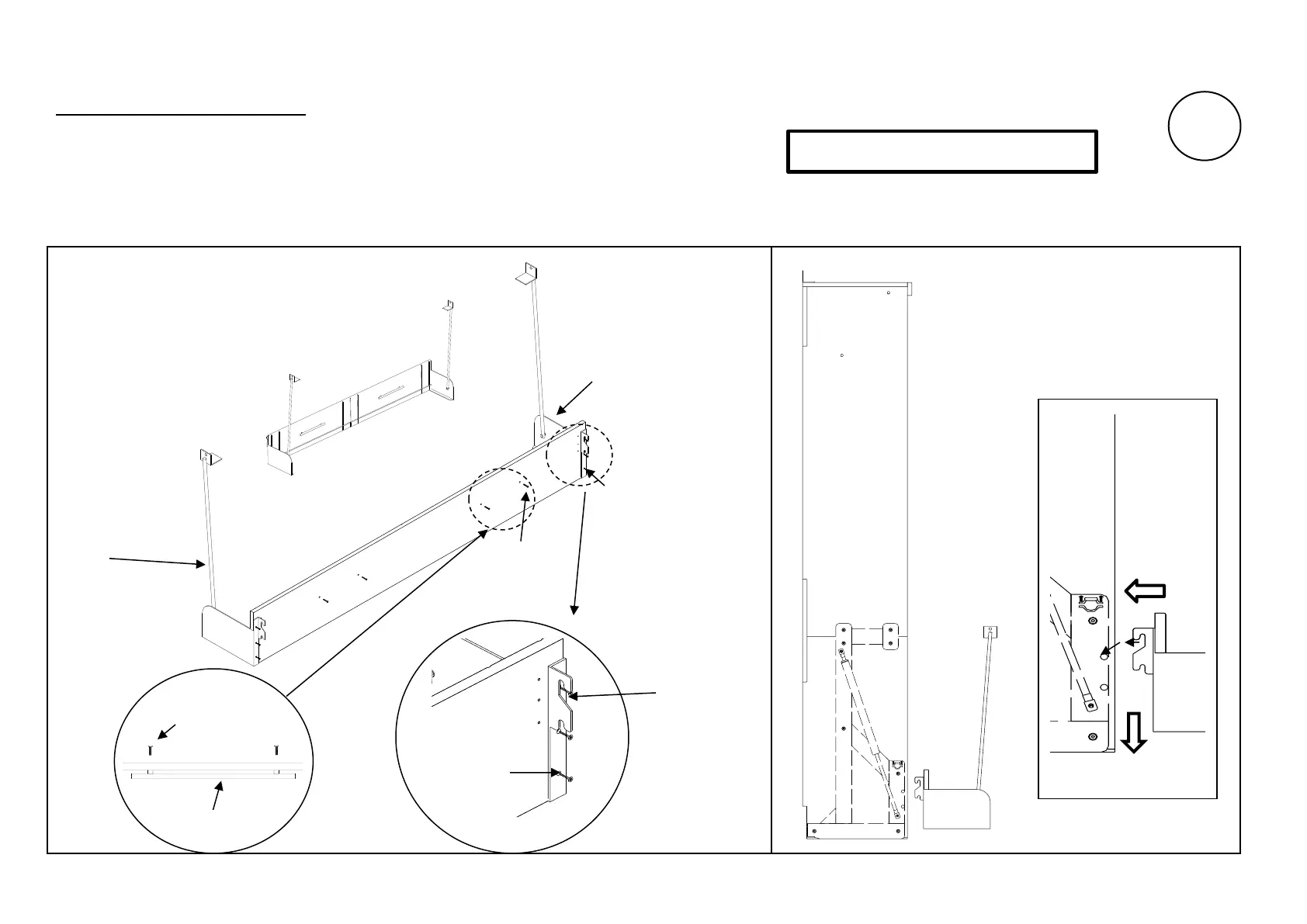

Install Desk-Rod Bases K159A & B with Hooks using
the K123 screws as shown below.
Install MDH-L handles with K118B screws.
To Next Page
