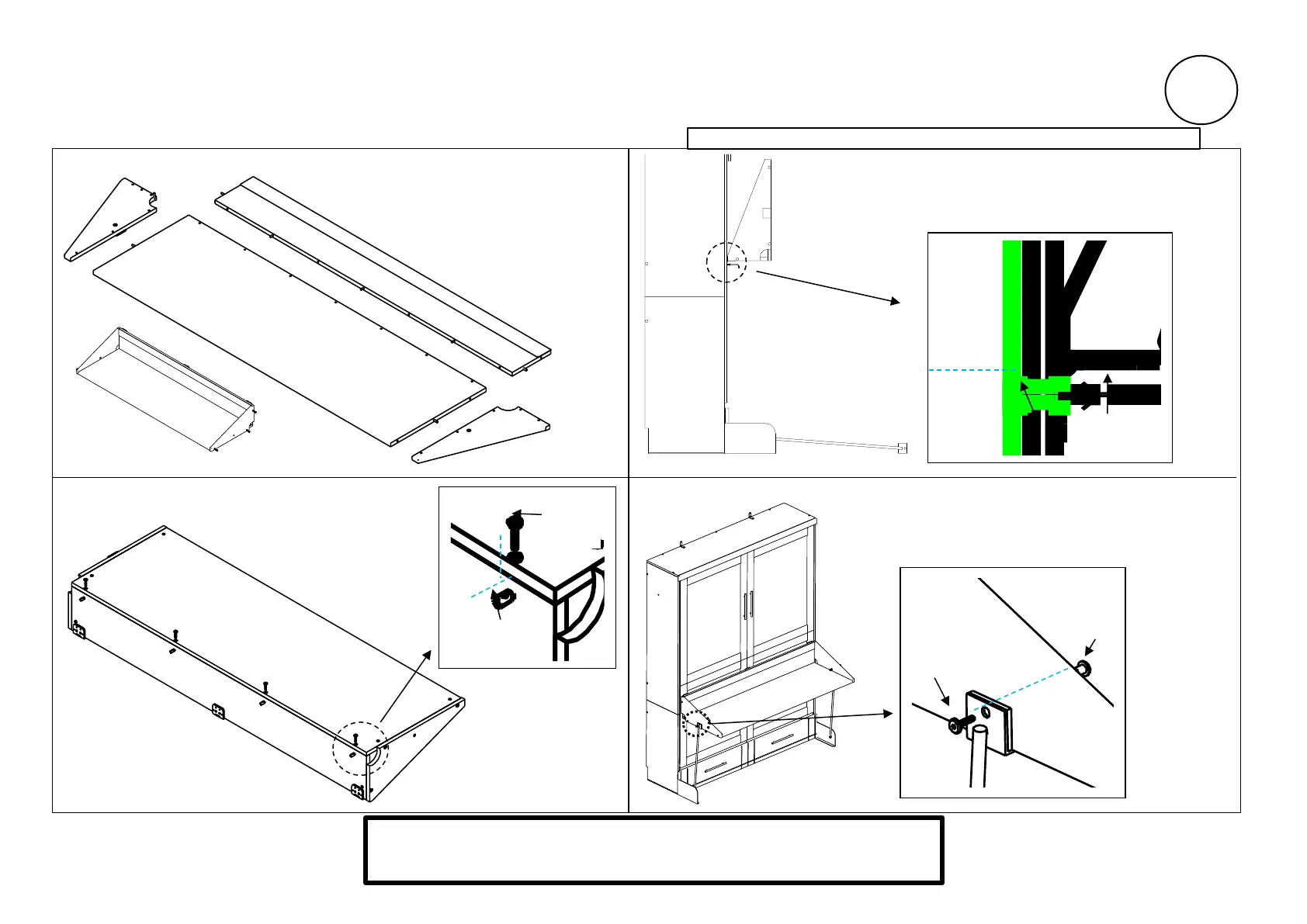

STEP 1:
A) Lay out the Desk Tray Parts on
the floor as shown.
STEP 2: A) Flip the desk tray over
B) Attach the desktop
STEP 3:With one person holding the desk tray in place,
Use the K160 Allen wrench to insert the K121B bolts connecting the
4 Desk hinges to the sleeves in the Bed Face.
STEP 4: Lower the Desk Tray while holding the Bed Face closed.
Use the K113A BOLT and K128 Binding Barrel to connect the
pivot rod support plate to the sides of the Desk Tray
Set up the Desk Tray and Connect to the Bed Face Hinges and the Desk Pivot Rods
Enjoy your new Murphy Desk Bed!!!
B) Connect back and side
panels with dowels
C) Attach side
panels to
desktop
HARDWARE BOX #5 & BUBBLE-PACK #5 CONTENTS SHOWN ON PAGE 32
