Refrigerator Doors: Removing, Reversing (optional) and Replacing
TOOLS NEEDED: ⁵⁄₁₆ in. hex-head socket wrench, No. 2 Phillips screwdriver, flat-head screwdriver, ⁵⁄₁₆ in. open-end wrench, flat 2 in.
putty knife.
IMPORTANT: Before you begin, turn the refrigerator control OFF, unplug refrigerator or disconnect power. Remove food and any
adjustable door or utility bins from doors.

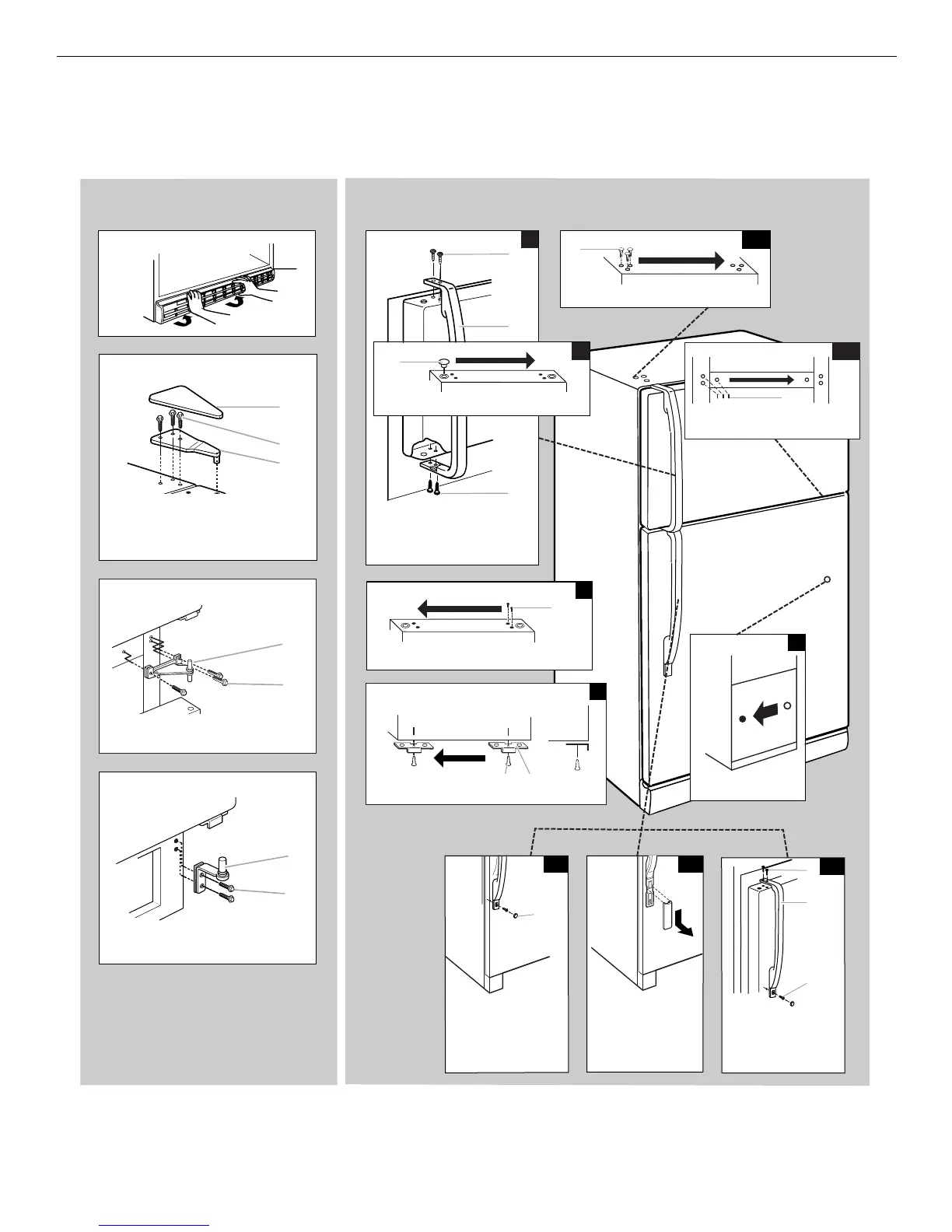

Door Removal &
Replacement
Door Swing Reversal (optional)
1. Door Hinge Hole Plug
1. Flat-Head Handle Screws
2. Freezer Handle
1. Cabinet Hinge Hole Plugs
1. Door Handle Sealing Screws
1. Door Stop Screw
2. Door Stop
