PCI 1394a Card 3+1 Ports RC-507 User Manual
3

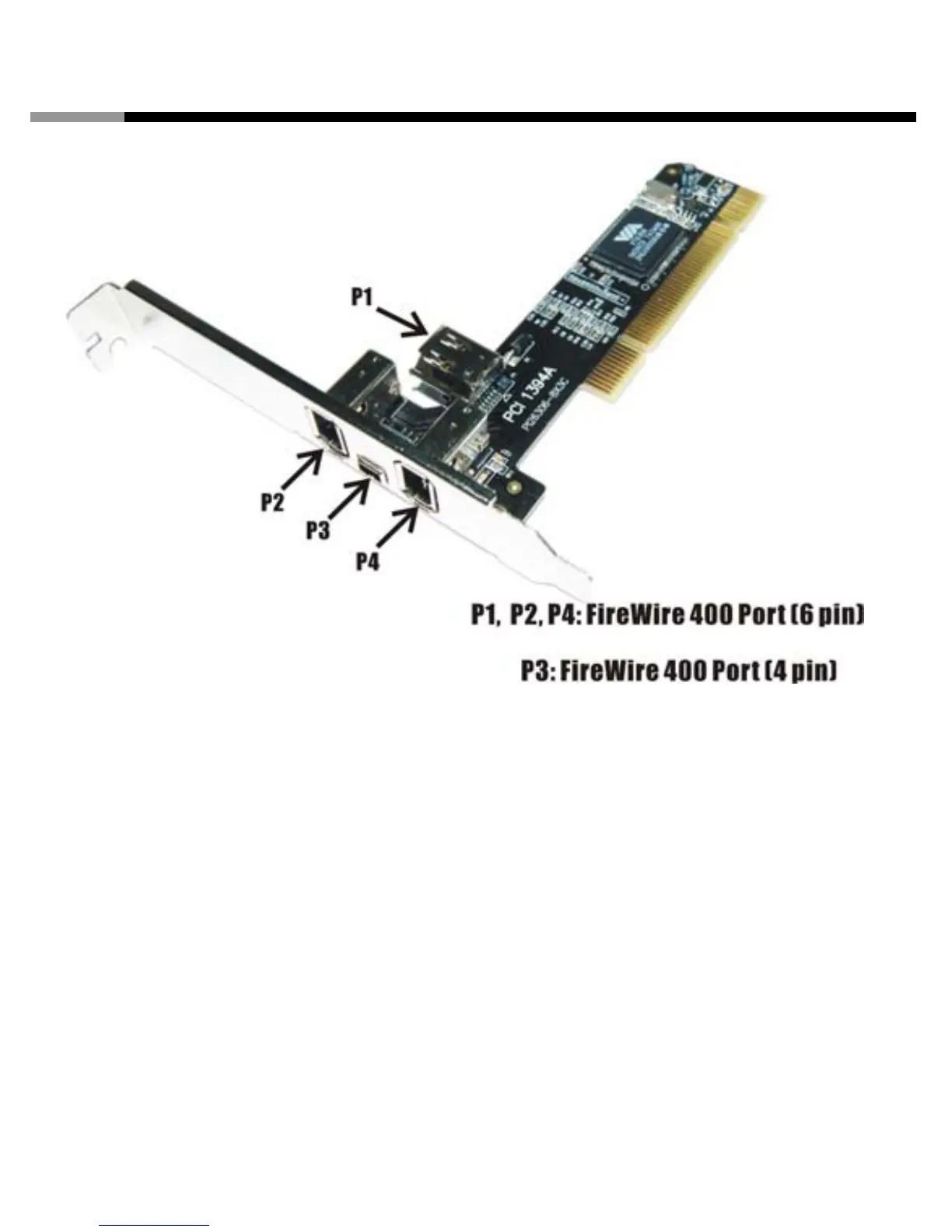

Note: The Internal Port (P1)) shares with first External Port (P2). DO NOT use P1 and P2
at the same time.
Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCI slot.
4. To install the card, carefully align the card’s bus connector with the selected PCI slot on the
motherboard. Push the board down firmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
