SATA II/ATA 133 PCIe Card RC216 User Manual
4

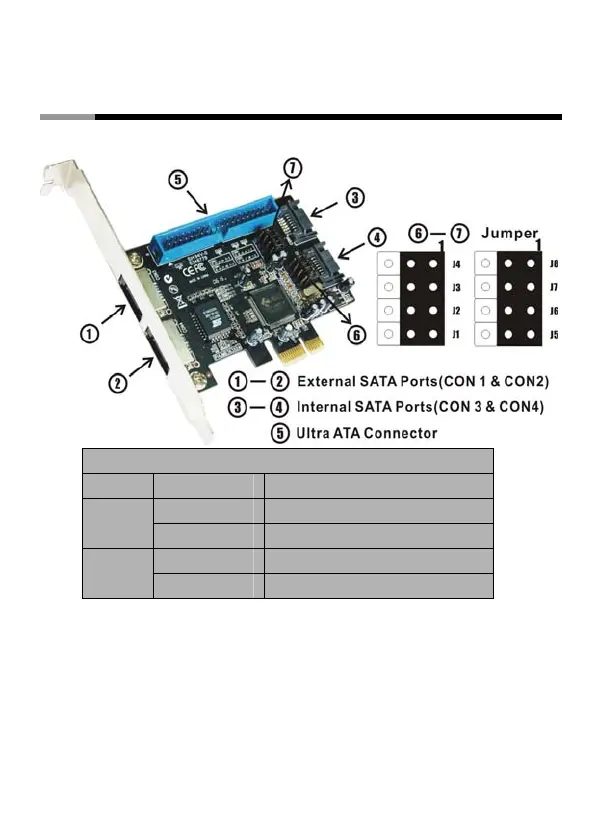

Hardware Description
G (Jumper Settings)
JP Description Active Port
1-2 close Enable SATA Port CON1 J1-J4
2-3 close Enable SATA Port CON3
1-2 close Enable SATA Port CON2 J5-J8
2-3 close Enable SATA Port CON4
Note: There are four SATA ports in PCIe SATA II 300 + PATA Raid Card.
We name these ports CON1 to CON4. Ports CON3 & CON4 are
internal SATA ports and CON1 & CON2 are external SATA ports. By
To Next Page
