4.8 Footrest Extension Assembly
Removal Guide
Maintenance Guide - Inner structure & installation

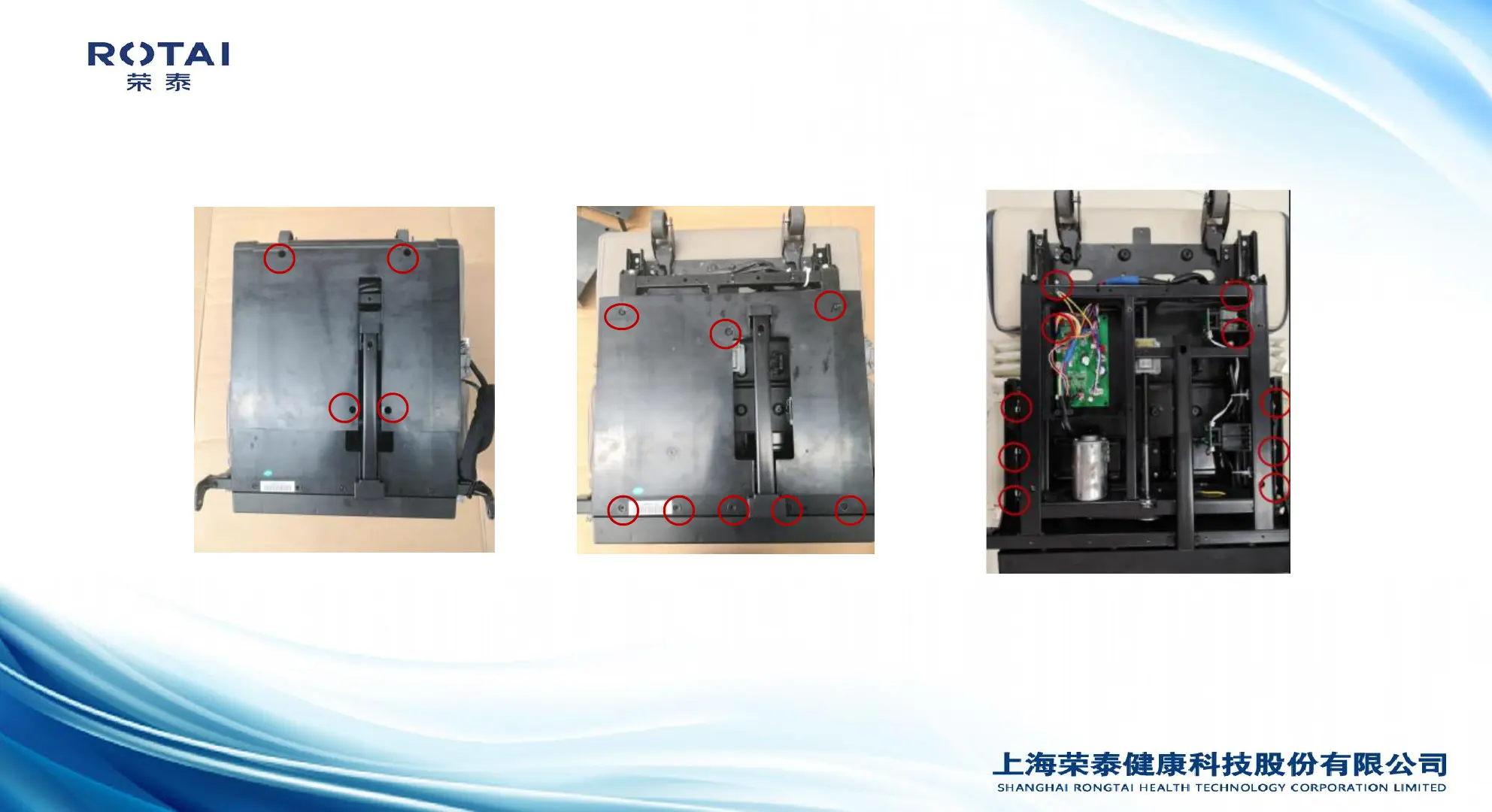

1. Unscrew these 4 bolts on the top
cover board.
2. Unscrew these 7 bolts on the
bottom cover board.
3. Unscrew the 6 bolts holding the
extension unit,then remove the left 4
screws.
To Next Page
