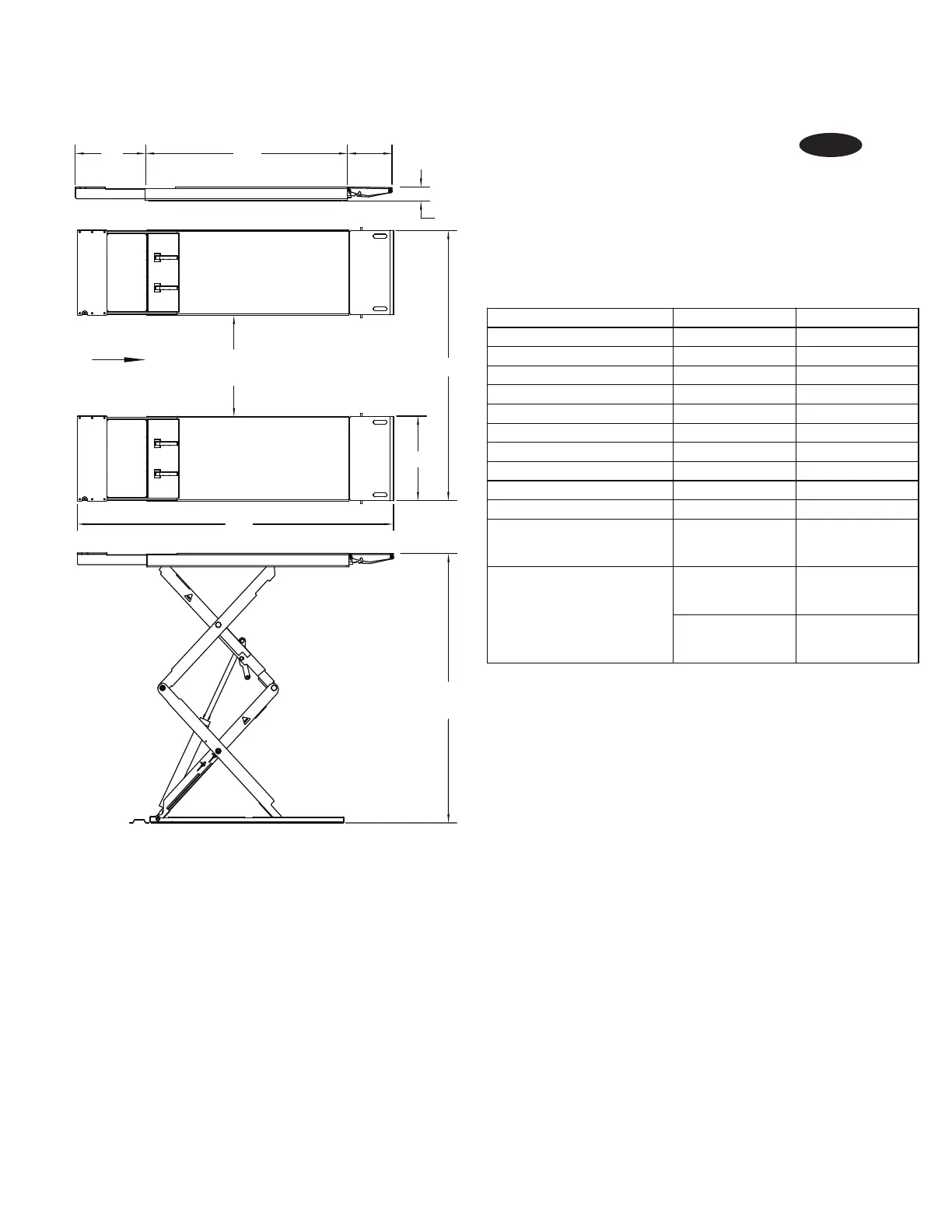

Fig. 1a
630
330528
1500
105
SPECIFICATION
DIRECTION
OF APPROACH
SURFACE MOUNT FLUSH MOUNT
COLLAPSED HEIGHT 105 -
RAISED HEIGHT 1940 1835
OVERALL LENGTH 2358 2358
PLATFORM LENGTH 1500 1500
RAMP LENGTH 330 330
OVERALL WIDTH 2010/2160 2010/2160
DISTANCE BETWEEN PLATFORMS 750/900 750/900
EXTENSION ARM LENGTH 528 528
CAPACITY AT 180 MM HEIGHT 3.5 TONS 3.5 TONS
LIFTING TIME 43 SEC. 43 SEC.
1Ø MOTOR
50 HZ / 60HZ, 3KW,
208-230V
50/60 HZ, 3KW,
208-230V
3Ø MOTOR
50 HZ, 3KW,
380V
50 HZ, 3KW,
380V
1940 SURFACE MOUNT
1835 FLUSH MOUNT
2358
*750
/900(
900 For BMW)
BETWEEN PLATFORMS
2010/2160/
*NOTE: 750mm WILL ACCOMMODATE MOST
VEHICLES. LIFT MAY BE ADJUSTED DURING
INSTALLATION BUT DISTANCE BETWEEN
PLATFORMS SHOULD NOT EXCEED 912mm.
60 HZ, 3KW,
380V
60 HZ, 3KW,
380V
DS35EX Scissor Lift
