1. General Lift Location

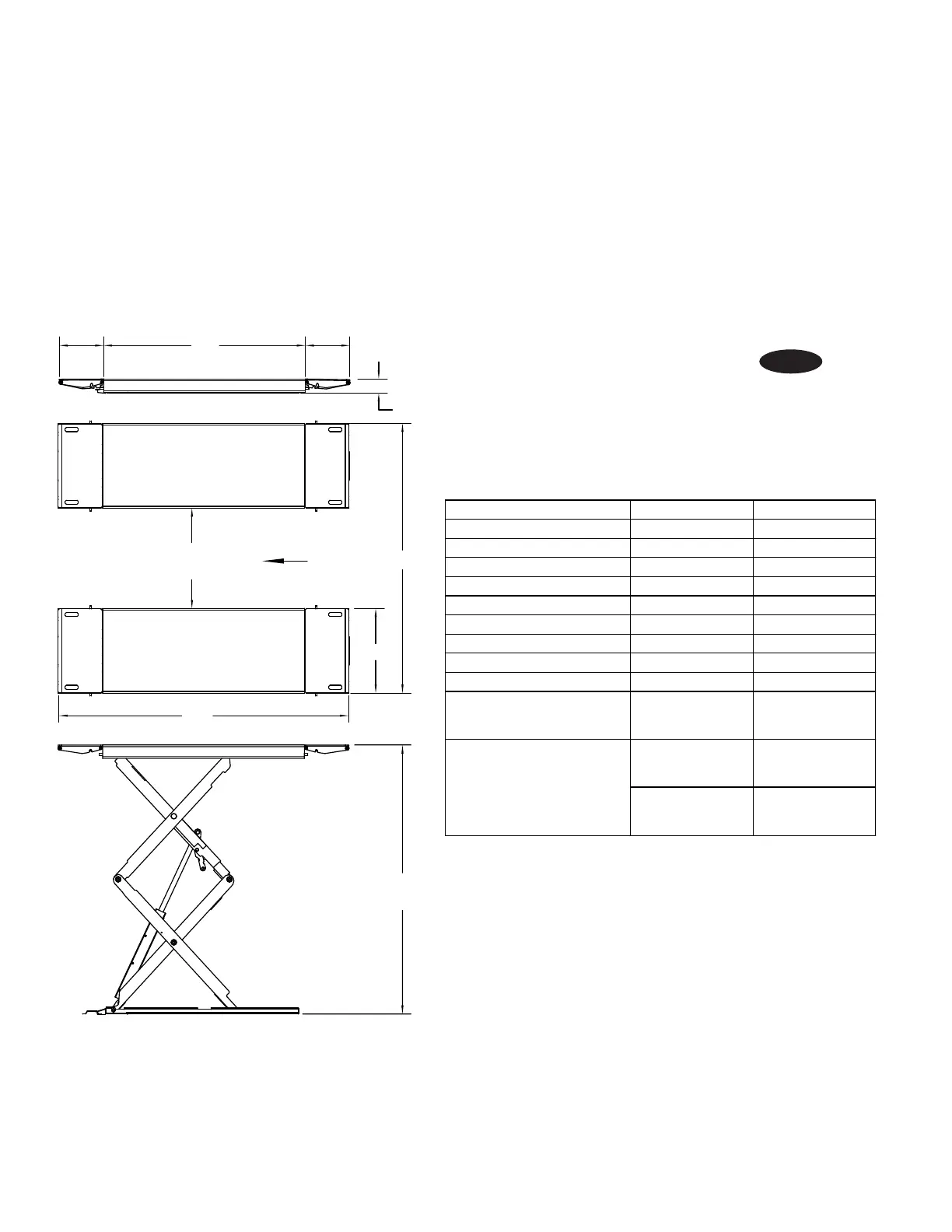

Use architects plan when available to locate lift. Fig. 1
and Fig. 1a shows typical lift dimensions.
Control cabinet may be placed on the left or right. This is
shown in Fig. 3.
Fig. 1
1940 SURFACE MOUNT
1835 FLUSH MOUNT
630
*750
BETWEEN PLATFORMS
2010
330330
1500
105
SPECIFICATION
DIRECTION
OF APPROACH
SURFACE MOUNT FLUSH MOUNT
COLLAPSED HEIGHT 105 -
RAISED HEIGHT 1940 1835
OVERALL LENGTH 2160 2160
PLATFORM LENGTH 1500 1500
RAMP LENGTH 330 330
OVERALL WIDTH 2010 2010
DISTANCE BETWEEN PLATFORMS 750 750
CAPACITY AT 180 MM HEIGHT 3.5 TONS 3.5 TONS
LIFTING TIME 43 SEC. 43 SEC.
1Ø MOTOR
50 HZ / 60HZ, 3KW,
208-230V
50/60 HZ, 3KW,
208-230V
3Ø MOTOR
50 HZ, 3KW,
380V
50 HZ, 3KW,
380V
60 HZ, 3KW,
380V
60 HZ, 3KW,
380V
2160
*NOTE: 750mm WILL ACCOMMODATE MOST
VEHICLES. LIFT MAY BE ADJUSTED DURING
INSTALLATION BUT DISTANCE BETWEEN
PLATFORMS SHOULD NOT EXCEED 912mm.
