Operating the Rototilt® quick coupler
The switch is identied by means of the symbol used
to mark it, see Figure 1.
The quick coupler functions Open/Close are
operated using this switch.
The switch for Rototilt® must be ON.
The buzzer sounds when the switch is activated.
IMPORTANT!
Before starting work. Read the safety
instructions Before use and During use.
IMPORTANT!
Pressurization of the Rototilt® hydraulic
system means that the quick coupler
locking function is also pressurized.
Warning decal
Always pressurize Rototilt® in order to activate
the locking cylinder in the quick coupler.
Switch and buzzer for the quick coupler
locking function
The switch (1) activates the quick coupler locking
function control valve on Rototilt® to the open or
closed position.
The blocking function locks the switch in the open
position and the blocking function should prevent
unintentional activation of the function.
Upon activation of the locking function, the warning
buzzer (2) sounds all the time ‘locks open’ is
activated. This is a safety function that alerts the
driver when the quick coupler locking function is
unlocked.

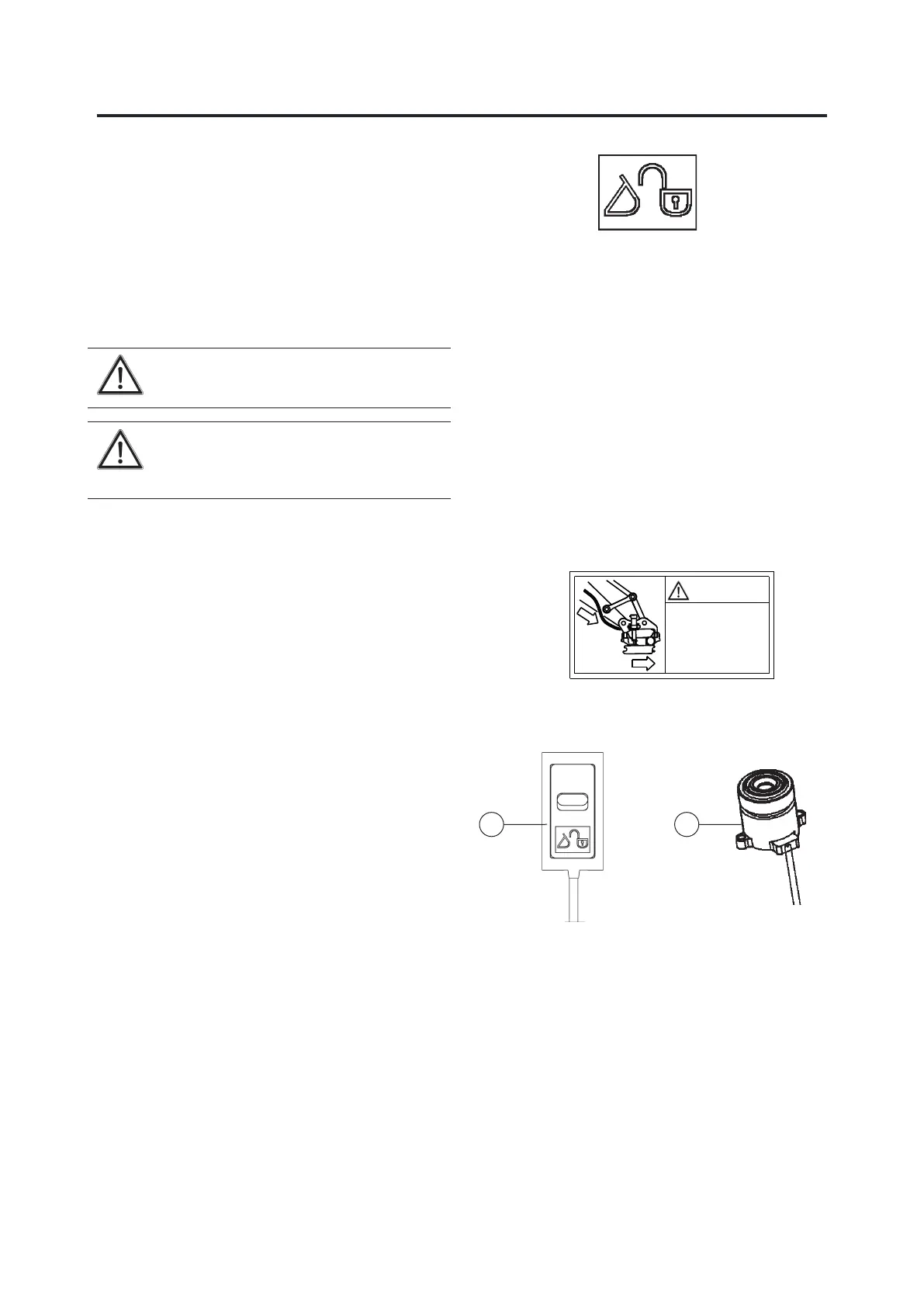

Figure 1.
IMPORTANT
Always pressurize
ROTOTILT®
to activate the
locking cylinder
after a tool change
