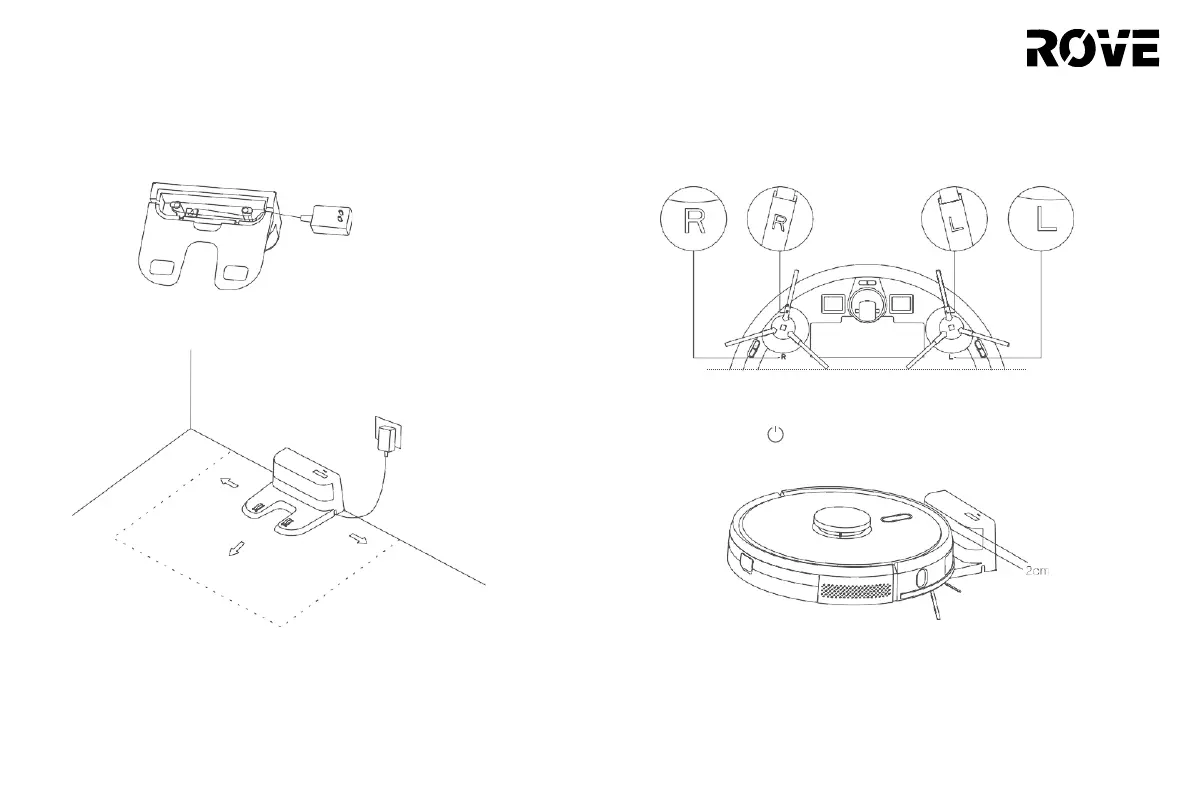

1. Connect the adaptor power cable with the charging base,
and then place any excess cable into the charging base’s
inner compartment.
2. Place the charging base against the wall on a flat surface.
Then connect the base to a power supply.
3. Install the Side Brushes
Align the left andright brushes with the corresponding markings on
the bottom cover of the device. Press side brushes down until they click.
4. Power On and Charging
Press and hold the button to turn on the device. Wait until the indicator
light turns on, and then place the device on the charging base.
Note:
This device cannot start if it does not have enough battery power. Place the device on the
charging base, and it will automatically turn on when it has enough power. The device can work
normally only when the battery is ≥20% charged. As shown in the figure, the front of the device
should face the charging base so that the charging contact of the robot is touching the wireless
power receiver. The distance between the front of the device and the charging base should be
around 0.8 inch.
8
Note:
• Ensure that the charging base has at least 0.5 m of free space on both sides,
and 1.5 m of free space in front of it.
• During installation, keep the power cable off the ground. When the power cable is
on the ground, it may be dragged by the robot, which will cause the charging base
to power off.
• The charging indicator light will remain on as long as the charging base has power.
>0.5
m
>0.5
m
>1.5 m
INSTALLATION INSTRUCTION
