Bulb Replacement
175
5
HEADLIGHTS AND SIDELIGHT

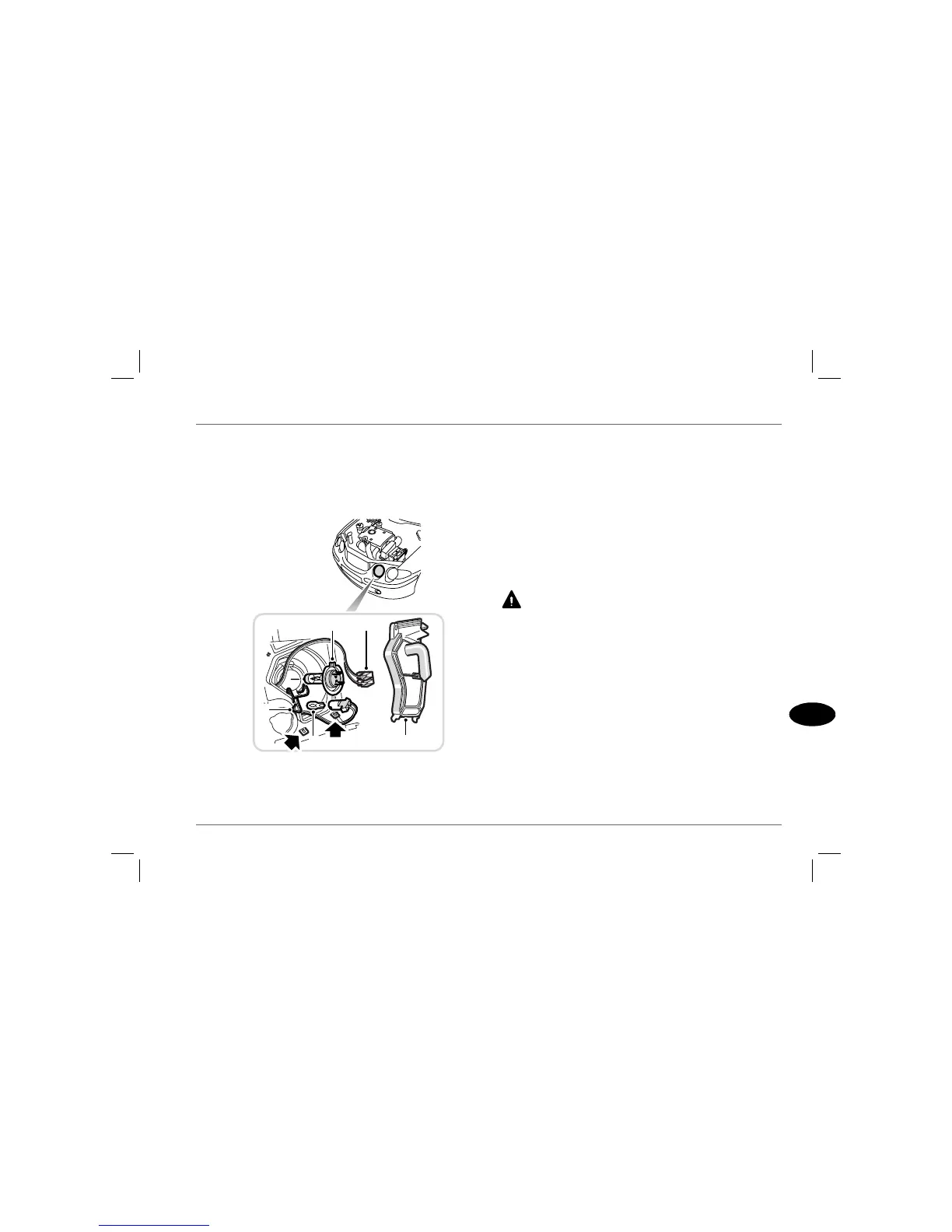

Your car is equipped with twin headlights, the inboard set being
the dipped beam lights and the outer set are the main beam. The
bulbs can be reached from inside the engine compartment.
Headlights - Dipped Beam
• Press the plastic cover release catch and pivot the cover (1) away
from the rear of the light unit.
• Pull the electrical connector (2) from the back of the headlight
bulb.
• Unhook the wire retaining clip (3), and pivot away from the
rear of the bulb.
• Remove the bulb (4).
When replacing the bulb, ensure that the rectangular tab is
vertically aligned at the top.
When replacing the electrical connector, check with the
illustration to ensure that it is fitted the correct way round
When replacing the plastic cover, angle the cover so that the two
hooked pegs at the base of the cover locate securely in the
corresponding sockets in the light unit (these are arrowed in the
illustration), then close the cover. Ensure that the catch is secure.
During use, Halogen headlight bulbs may shatter if the glass
has been scratched, or contaminated with oil or perspiration.
DO NOT touch the glass. If handled, clean with methylated spirits
and a clean cloth.
Sidelight
Replacement bulb: 5 watt.
The sidelight holder is directly below the dipped beam headlight
bulb. With the cover removed, pull the bulb holder from the light
unit and pull the bulb (5) from the holder.
HB0186
2
4
1
5
3
