182
Bulb Replacement

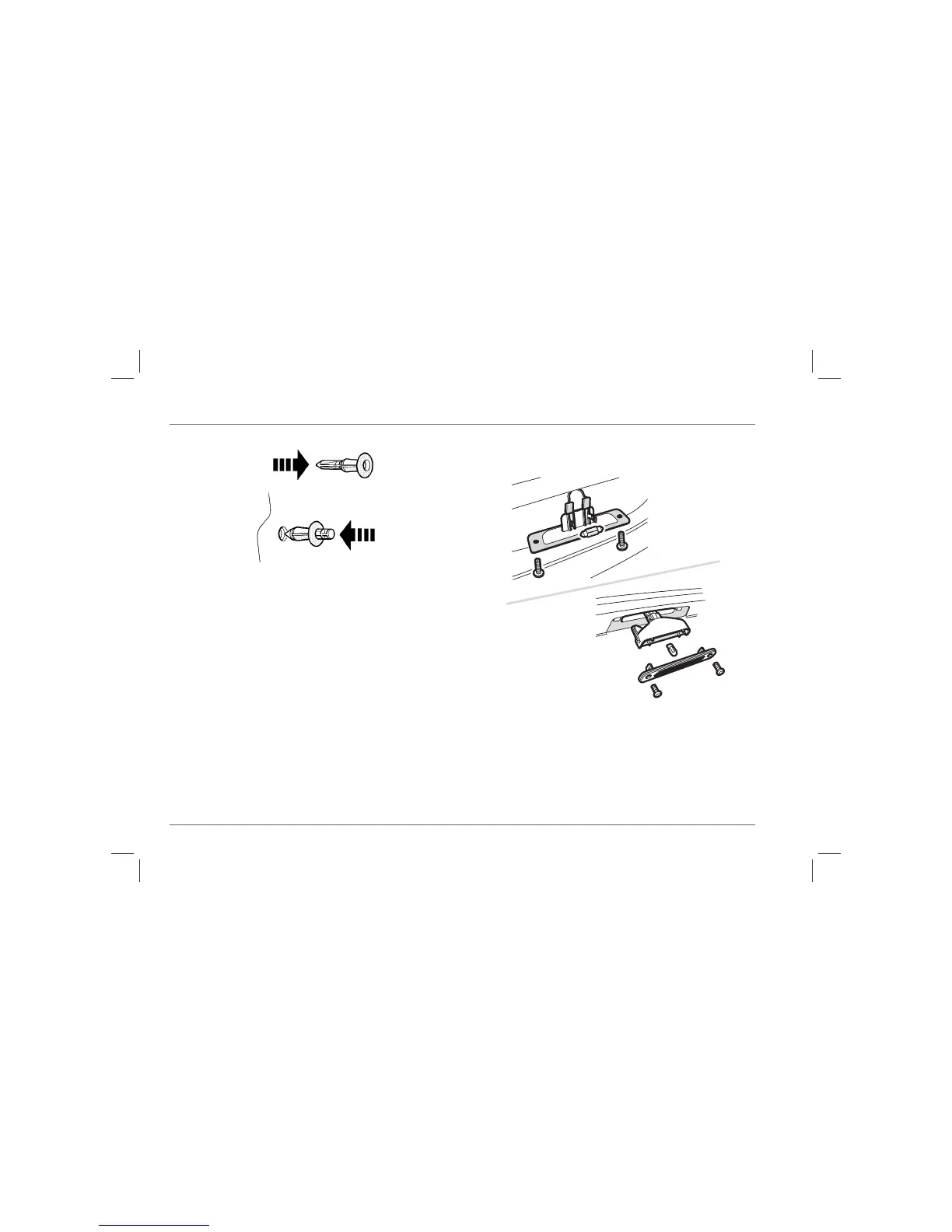

To replace the fastener, push on the pointed end (arrowed in
illustration ‘A’) until the centre protrudes from the collar (as
illustration ‘B’).
Insert the fastener through the moulded luggage compartment
lining and into the hole in the body, then push the centre of the
fastener (as arrow 'B') until it locks (flush with the collar).
NUMBER PLATE LIGHT
Replacement bulbs: 5 watt.
The upper part of the illustration represents the process for 4-door models,
the lower part represents 5-door models.
Remove both screws to release the light unit, and remove the
lens.Pull to remove the spent bulb.
HB0195
B
A
HB0190
