Load Carrying
57
1

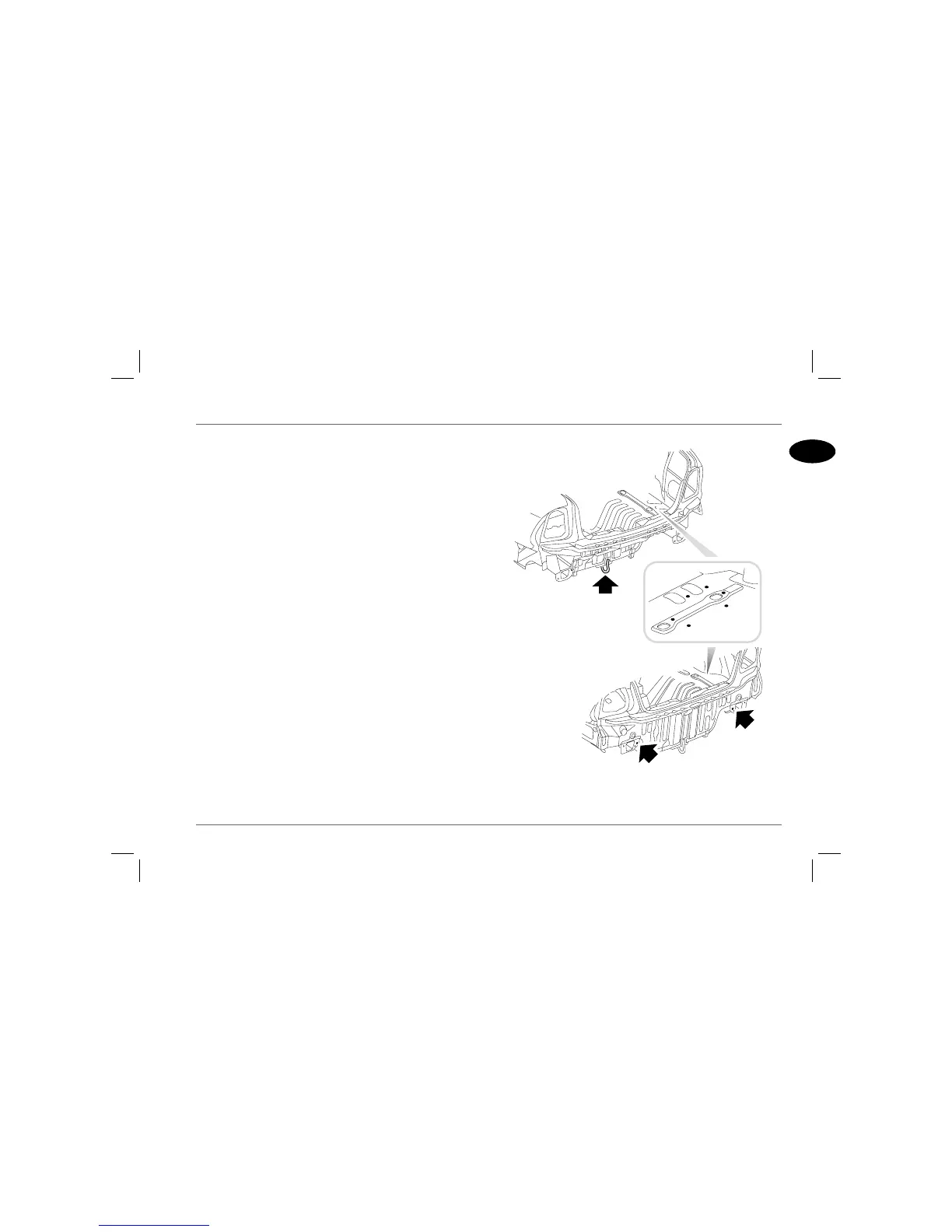

The illustration shows the bumper assembly and rear trim
removed.
• The inset shows the 6 mounting points located on the right
hand side of the luggage compartment - the mounting points
for the left hand side are symmetrically identical.
• The main illustration identifies the exterior rear mounting
points for both 4-door (A) and 5-door (B) models.
If a towing hitch with a detachable tow bar is fitted, always detach
the tow bar when the car is not being used for towing.
A = 4 door models
B = 5 door models
