Fuses
175
4
Checking or renewing a fuse
NOTE: Turn off the starter switch
and all electrical equipment
before changing a fuse.
1. Turn off the starter switch and all electrical equipment.
2. Remove the fuse box cover (depress the two catches
arrowed in illustration on the previous page), then refer
to the chart to identify the suspect fuse.

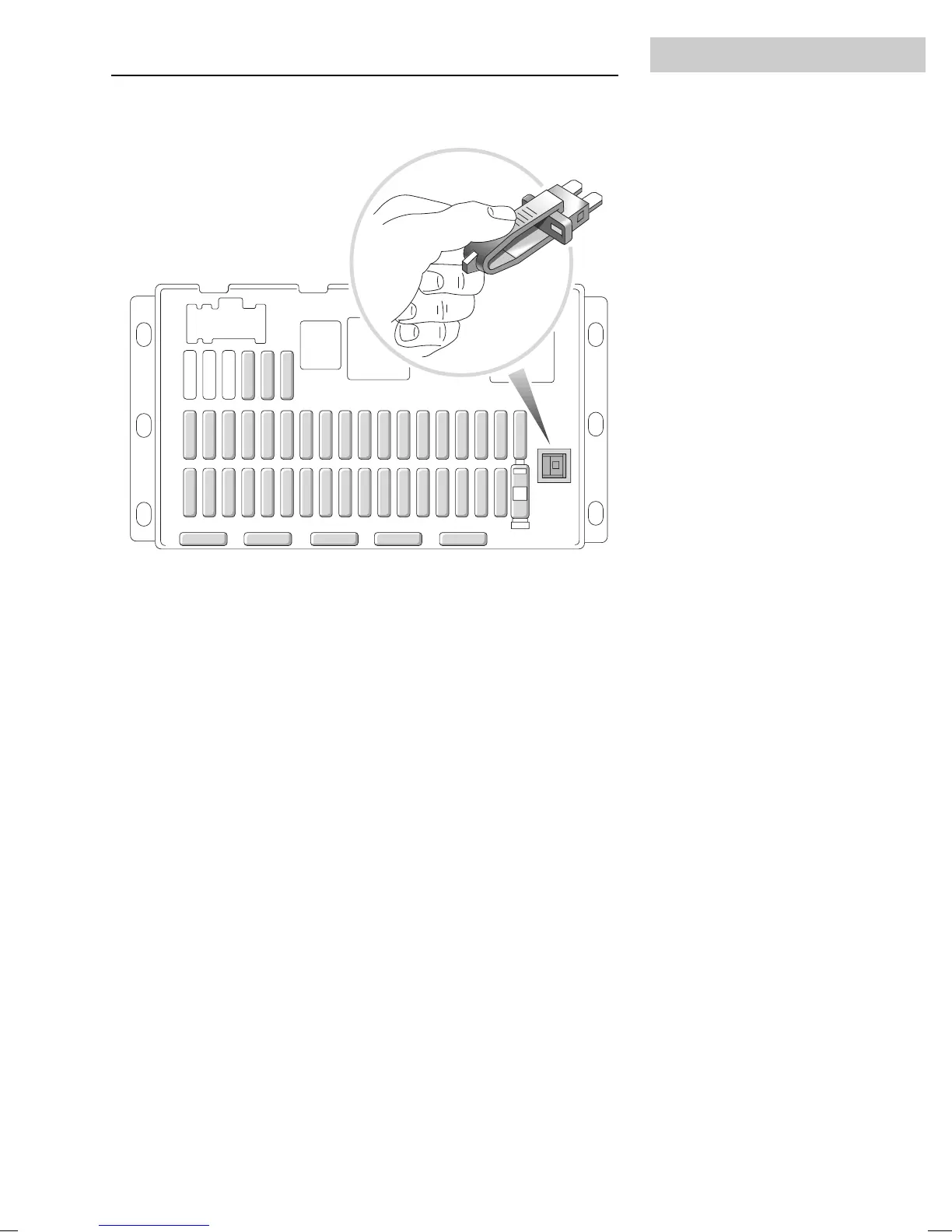

3. Press the removal tweezers (located in the fuse box) onto
the head of the fuse and pull to remove. A blown fuse can
be recognised by a break in the wire.
4. Replace a blown fuse with another of the same, or lower
rating. Note that there are a number of spare fuses located
along the lower side of the fuse box.
If a replacement fuse fails almost immediately, refer the
problem to your dealer.
