ENGINE
REPAIRS 1
CAMSHAFT THRUST PLATE
Service repair no - 12.13.23.
Remove
1. Remove timing chain and gears.
See this
section.

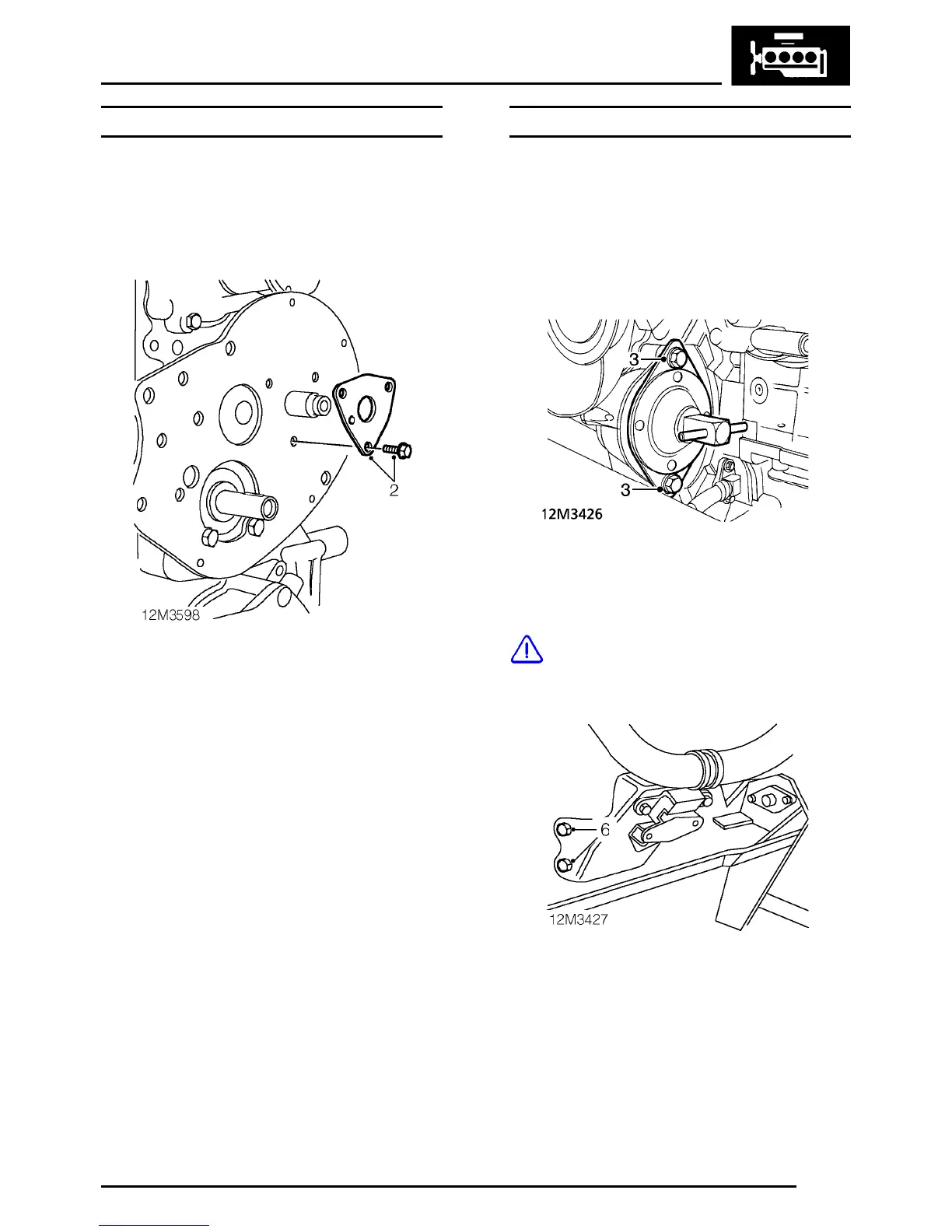

2. Remove 3 bolts securing camshaft thrust plate
and remove camshaft thrust plate.
Refit
1. Clean camshaft thrust plate and engine front
plate.
2. Lubricate face of camshaft thrust plate.
3. Fit camshaft thrust plate and tighten bolts to 11
Nm.
4. Fit timing chain and gears.
See this section.
CRANKSHAFT FRONT PULLEY
Service repair no - 12.21.01
Remove
1. Remove coolant pump pulley.
See COOLING
SYSTEM, Repairs.
2. Remove starter motor.
See ELECTRICAL,
Repairs.
3. Fit flywheel locking tool and secure with 2
bolts.
4. Position jack under engine.
CAUTION: Use a block of wood or hard
rubber pad between jack and engine.
5. Take the weight off engine LH mounting.
6. Remove bolts securing engine LH mounting
bracket to gearbox casing.
7. Raise engine to allow access to crankshaft
pulley bolt.
