ENGINE
2
REPAIRS

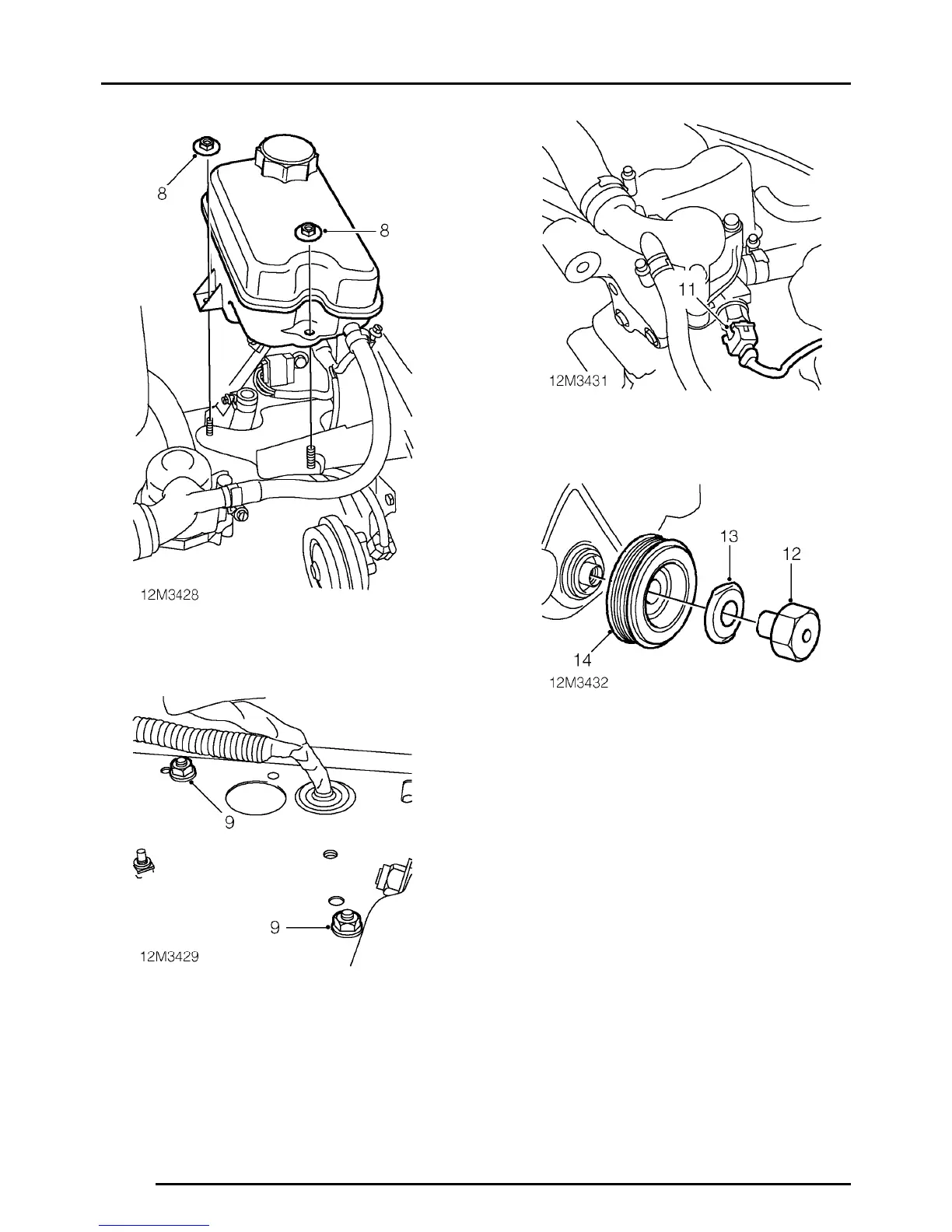

8. Remove nuts securing expansion tank to
mounting bracket and position tank aside.
9. Remove nuts securing expansion tank
mounting bracket to body and remove bracket.
10. Remove bolts securing horn bracket to body
and position horn aside.
11. Disconnect multiplug from ECT sensor.
12. Tap back lock washer from crankshaft pulley
bolt and remove bolt.
13. Remove lockwasher from bolt.
14. Remove crankshaft pulley.
