ENGINE
REPAIRS 5

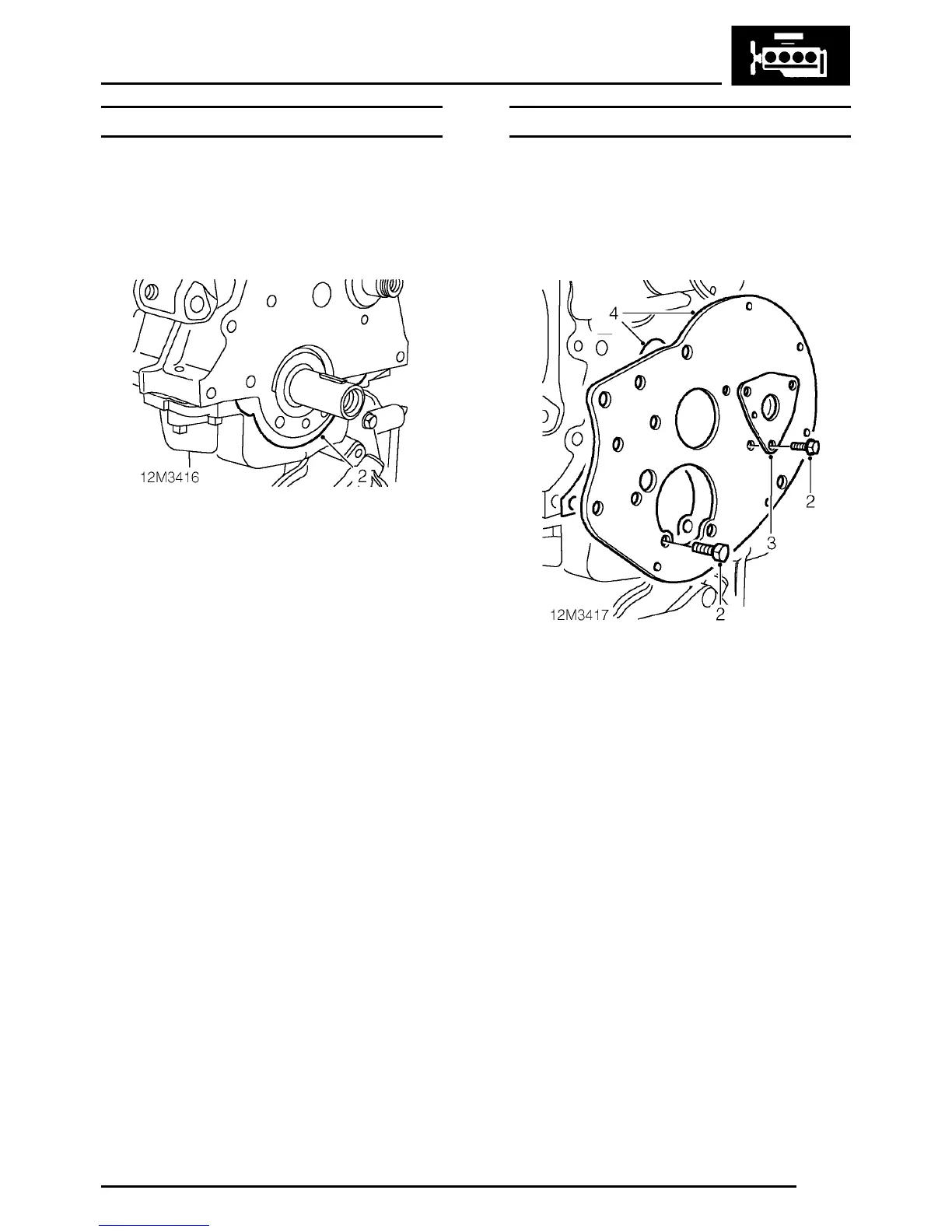

MAIN BEARING CAP OIL SEAL
Service repair no - 12.21.38
Remove
1. Remove front mounting plate gasket.
See this
section.
2. Remove seal from recess under front main
bearing cap.
Refit
1. Clean seal recess.
2. Apply RTV sealant to ends of new seal and
lubricate remainder of seal with clean engine
oil.
3. Fit seal into recess by first inserting the ends
and then working the seal into position until the
seal face is flush with cylinder block face.
4. Fit front mounting plate gasket.
See this
section.
5. Check and if necessary top up engine oil.
See
MAINTENANCEMaintenance.
FRONT PLATE GASKET
Service repair no - 12.25.10.
Remove
1. Remove timing chain and gears.
See this
section.
2. Remove 5 remaining bolts securing front cover
plate.
3. Remove camshaft thrust plate.
4. Remove front cover plate and discard gasket.
Refit
1. Clean front cover plate and mating face,
dowels and dowel holes.
2. Fit gasket and position front plate to cylinder
block.
3. Fit camshaft thrust plate.
4. Fit and tighten bolts to 11 Nm.
5. Fit timing chain and gears.
See this section.
