ENGINE
6
REPAIRS
CYLINDER HEAD GASKET
Service repair no - 12.29.02
Remove
1. Disconnect battery earth lead.
2. Remove bonnet.
See BODY, Exterior
fittings.
3. Remove air cleaner.
See ENGINE
MANAGEMENT SYSTEM - MEMS, Repairs.
4. Remove front pipe to manifold gasket.
See
MANIFOLD & EXHAUST SYSTEMS, Repairs.

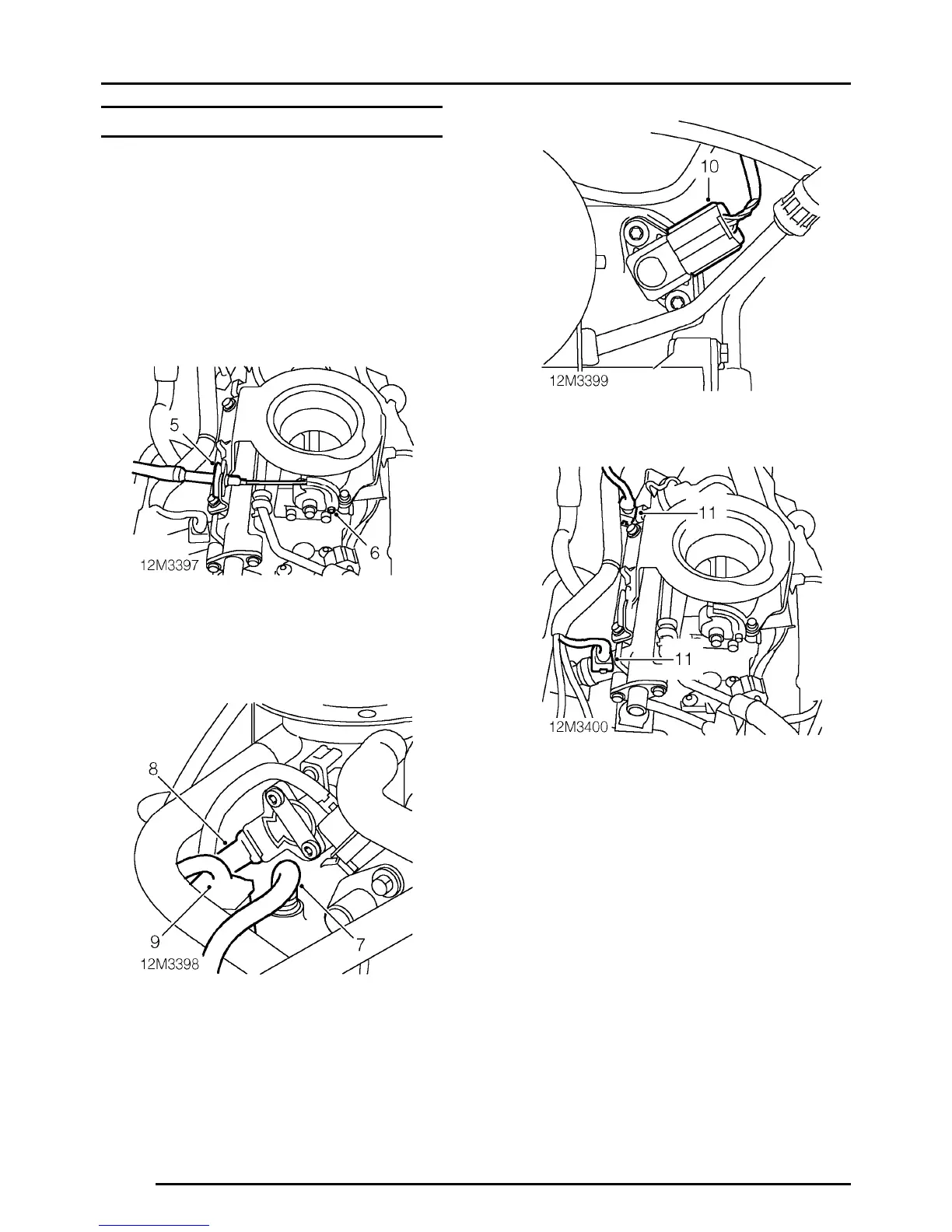

5. Release throttle cable adjustment nut from
abutment bracket.
6. Disconnect throttle cable from throttle cam and
position aside.
7. Depress plastic collar on quick fit connector
and disconnect brake servo vacuum pipe from
inlet manifold.
8. Disconnect multiplug from TP sensor.
9. Disconnect multiplug from IACV.
10. Disconnect multiplug from MAP sensor.
11. Disconnect 2 multiplugs from fuel injectors.
