ENGINE
REPAIRS 7

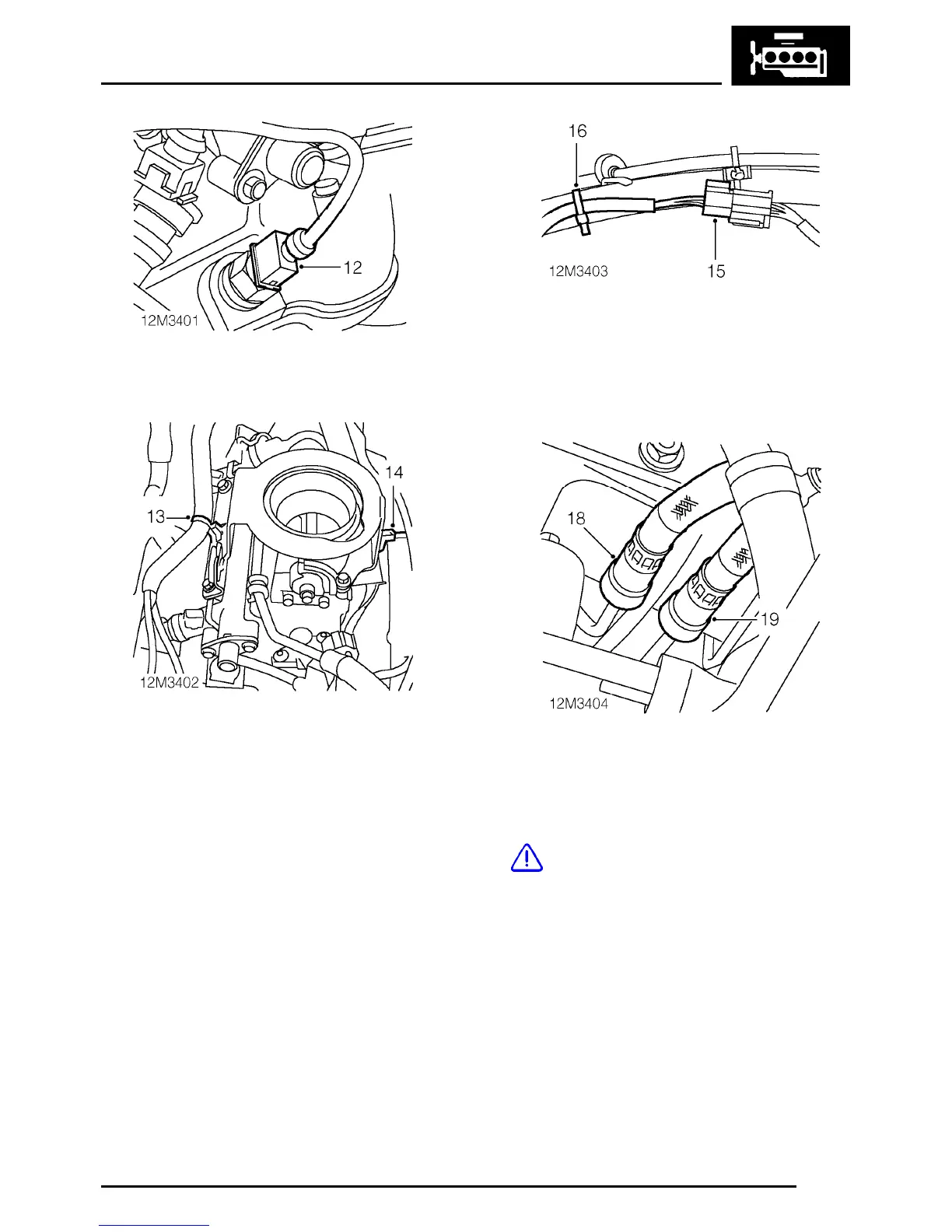

12. Disconnect multiplug from IAT sensor.
13. Release clip securing engine harness to air
cleaner bracket and move harness clear.
14. Release harness clip from rear of air cleaner
bracket.
15. Disconnect HO2S multiplug from harness.
16. Remove cable tie securing HO2S cable to
harness.
17. Position absorbent cloth around fuel line quick
fit connectors.
18. Release quick fit connector and disconnect fuel
return hose from fuel pipe.
19. Release quick fit connector and disconnect fuel
feed hose from fuel pipe.
CAUTION: Plug the connections.
