Washer jets & wiper blades
145

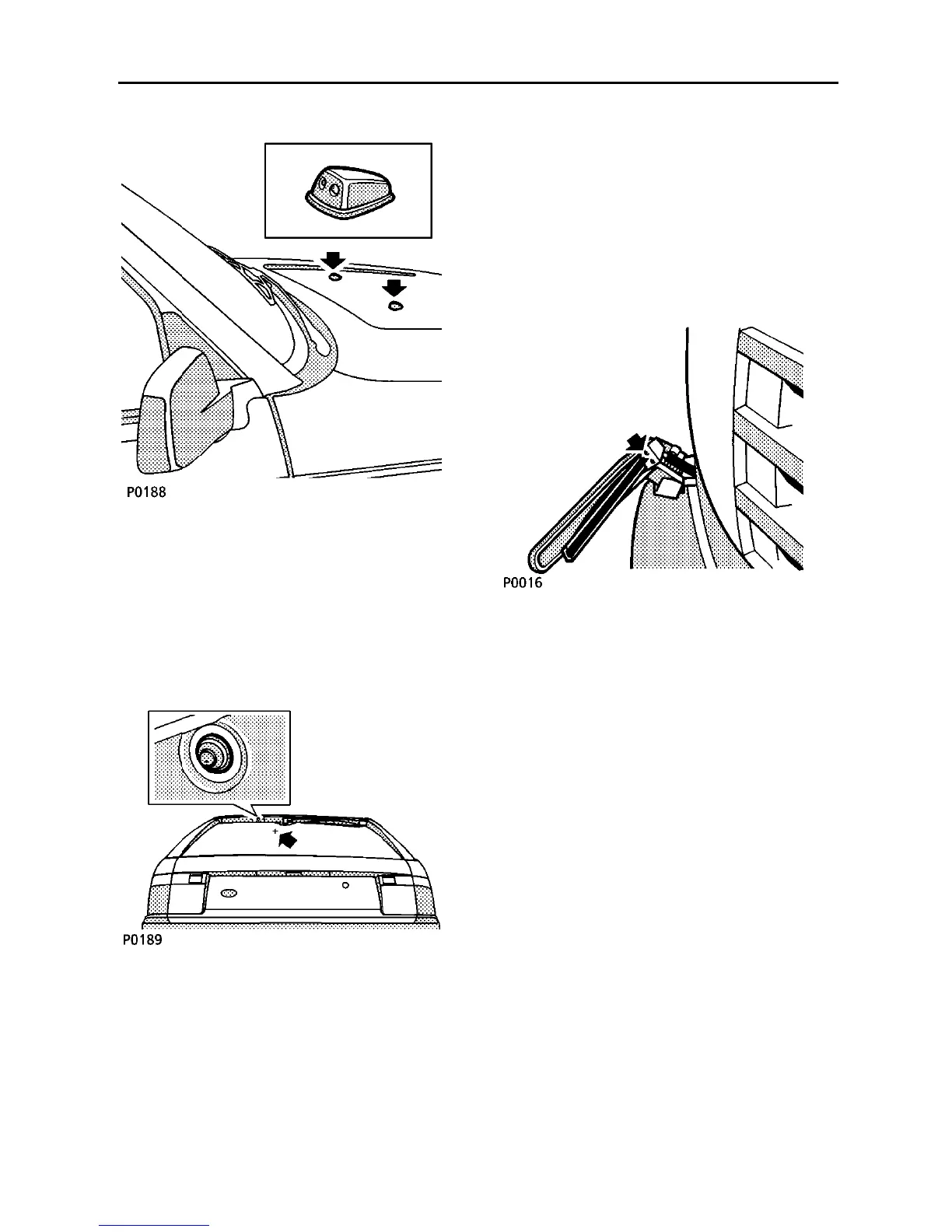

WASHER JETS
To adjust the front screen washer jets, insert a
needle into the jet orifice and lever gently to
position each jet, so that the spray is directed
towards the horizontal centre line of the
windscreen.
To adjust the rear screen washer jet, insert a
long needle-like probe into the jet orifice and
lever gently to position the jet, so that the
spray is directed towards the ’cross’ symbol
printed on the screen glass.
HEADLIGHT WIPERS
Each headlight wiper arm has two jets
(arrowed in illustration), which direct wash
fluid on to the headlight lens as the wiper arm
passes over it. These jets are set during
manufacture and must NOT be adjusted.
Should any jet become obstructed, insert a
needle or a strand of wire into the orifice to
clear it.
REAR WIPER BLADE REPLACEMENT
The rear wiper arm is inaccessible in its
stowed position (under a cover at the top of
the tailgate). To change the wiper blade, it is
necessary to stop the wiper arm during its
travel as follows:
Set the rear screen wiper operating, then open
the upper tailgate when the wiper is in a
near-vertical position. The wiper will stop as
soon as the tailgate is opened.
Turn the starter switch to the ’0’ position to
prevent the wiper from operating, lower the
upper tailgate and then replace the wiper
blade (as described for front wiper blade
overleaf). The wiper will continue operating,
as soon as the starter switch is returned to
position ’I’.
