40

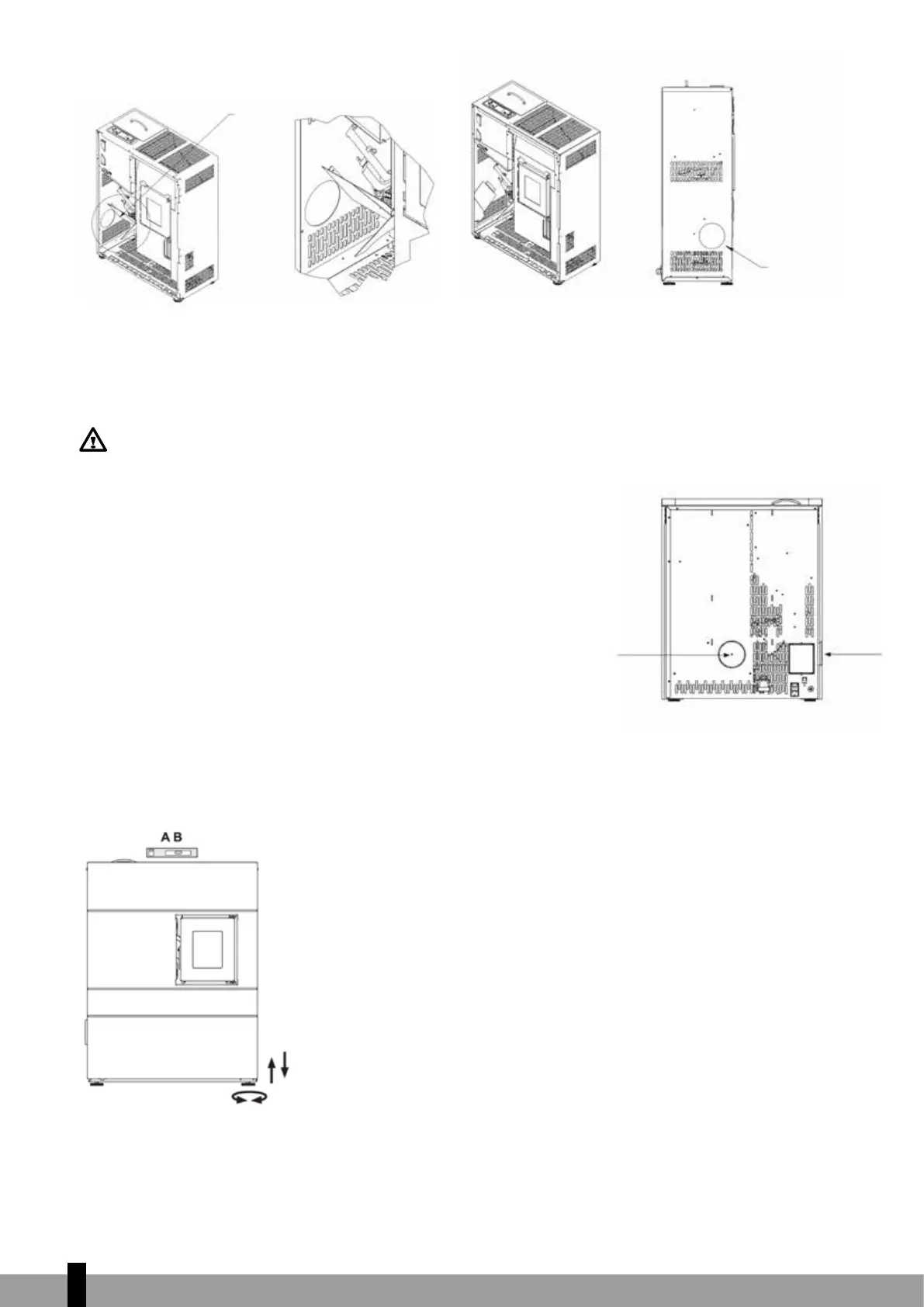

Bend the metal sheet (E) by pivoting on the side fixed by the screws. Close the hole on the side panel by fixing the end with a
3rd screw (F). Screw F is already in the metal sheet. It should first be removed then put back on.
“F” lock
screw
“E” metal
sheet to be
bent
Fig. 10a + 10b Fig. 10c + 10d
Reassemble the tangential fan and fix it with its screws.
Put the front panel back on.
ATTENTION! The installation, adjustment and maintenance of the appliance must be carried out by professional-
ly qualified personnel, in compliance with the standards and regulations in force. Incorrect installation can cause damage
to people, animals, and things, towards which the manufacturer cannot be held responsible.
3.5.2 ROOF EXHAUST WITH TRADITIONAL
CHIMNEY
The flue for the expulsion of flue gases must be developed in compliance with
the EN 1856-1-2- EN 1857- EN 1443- EN 13384-1-3- EN 12391-1 standards both
regarding the dimensions and the materials used in its construction.
DILAPIDATED chimneys, made with unsuitable materials (fibrocement, galvani-
zed steel, etc... with rough and porous internal surfaces) are not allowed and
compromise the proper operation of the stove.
3.6 STOVE LEVELLING
The stove must be levelled, with the help of a spirit level, by regulating the adjustable feet (if included) Fig. 12).
A B = Spirit Level
Fig. 12
3.7 CONNECTION TO UTILITIES
3.7.1 ELECTRICAL CONNECTION
It is sufficient to connect the stove to the electrical system using the supplied plug.
Flue Gas
Outlet
(option)
Flue Gas
Outlet
(As standard)
Fig. 11
