7

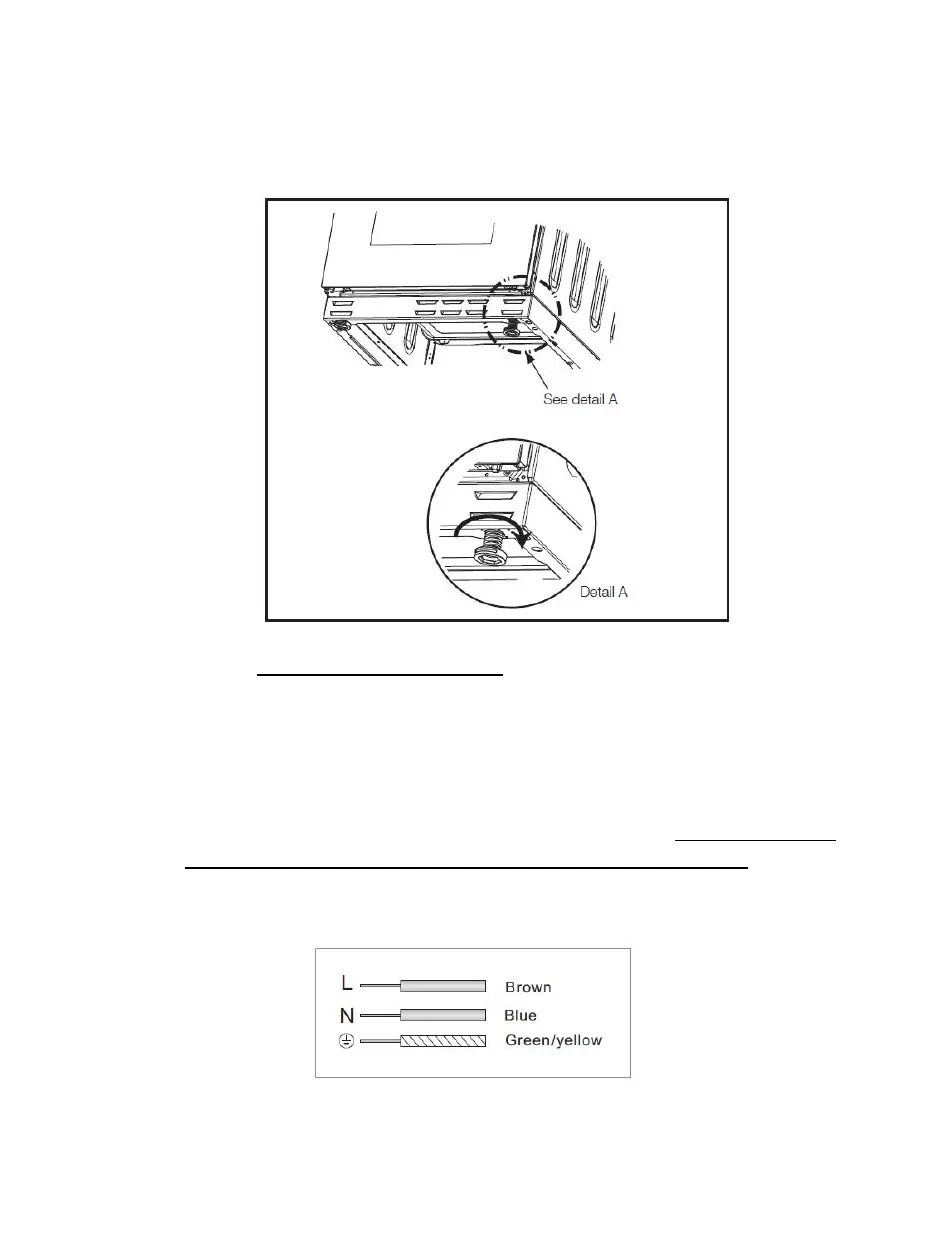

Adjust the height and stability of the cooker by adjusting the
two front feet as shown below. Rotate in a clockwise direction
to decrease the height and in an anti-clockwise direction to
increase the height.
1.2. Electrical Connection
This appliance can be fitted with a 13 Amp plug and plugged
into a standard, switchable 13 Amp socket.
Alternatively, the product can be ‘hard wired’ into a suitable
fused spur adjacent to the appliance housing. In this case the
product must be installed by a Qualified Electrician.
Please note that a switchable spur should be accessible
above the work surface in order that the power can be turned
off.
