9
RGM-3600 Operational Manual

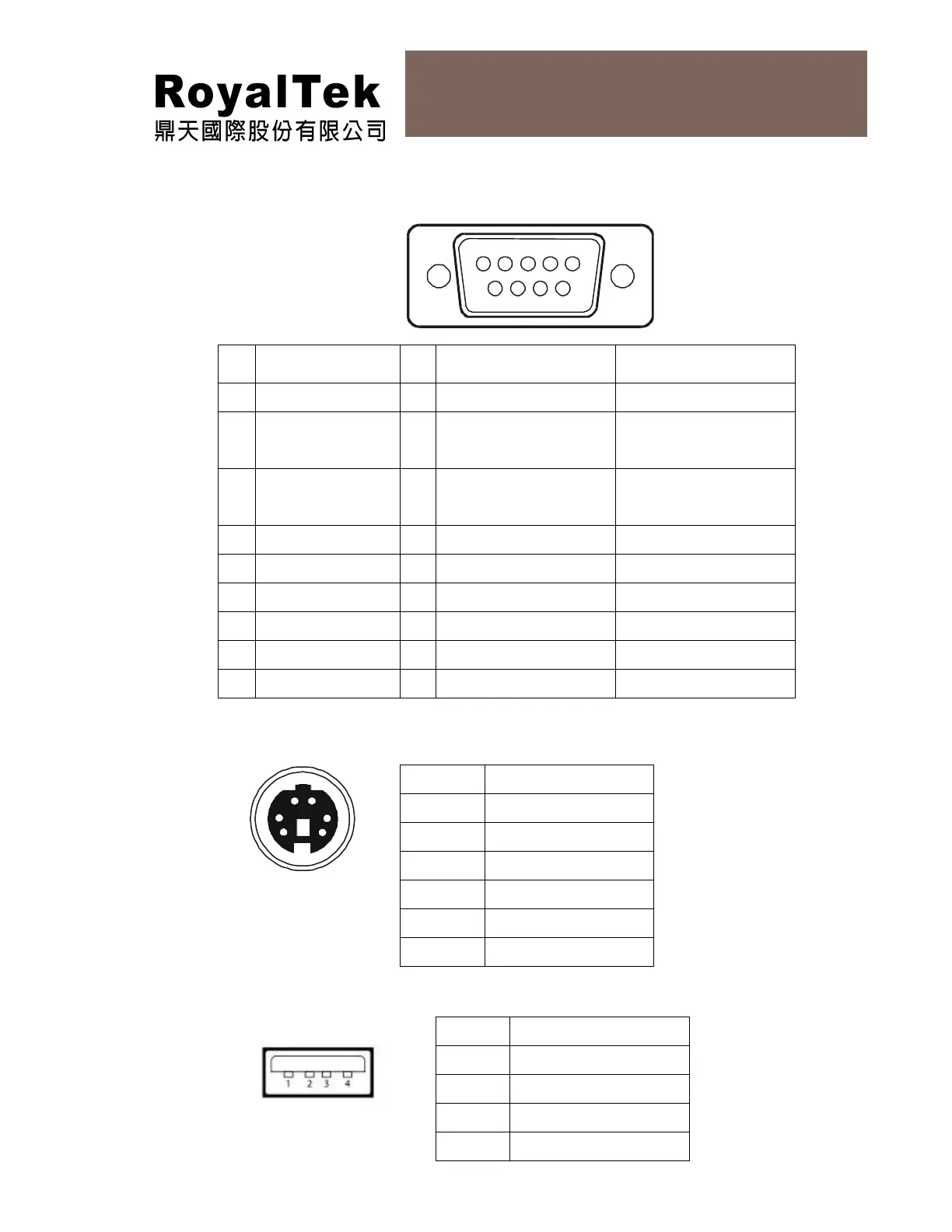

- (Y cable) 9 pin D-SUB Interface Pin Number:
Table 2
Pin
NO
Signal Name I/O
Description Characteristics
1
No connect
2
TX O
Serial Data Output High: -3V ~ -15V
Low: +3V ~ +15V
3
RX I Serial Data Input High: -3V ~ -15V
Low: +3V ~ +15V
4
No connect
5
GND G
Ground
6
No connect
7
No connect
8
No connect
9
No connect
- (Y cable) 6Pin Male PS2 Interface Pin Number:
- USB Interface Pin Number:
Pin # Signal Name
1 NC
2 NC
3 GND
4 VCC
5 NC
6 NC
Pin #
Signal Name
1 V
bus
(4.75-5.25volts)
2 D-
3 D+
4 GND
15
69
234
78
2
4
6
