Page 13
9
4
3
1
2
8
7
6
5
12 13
14
10 11

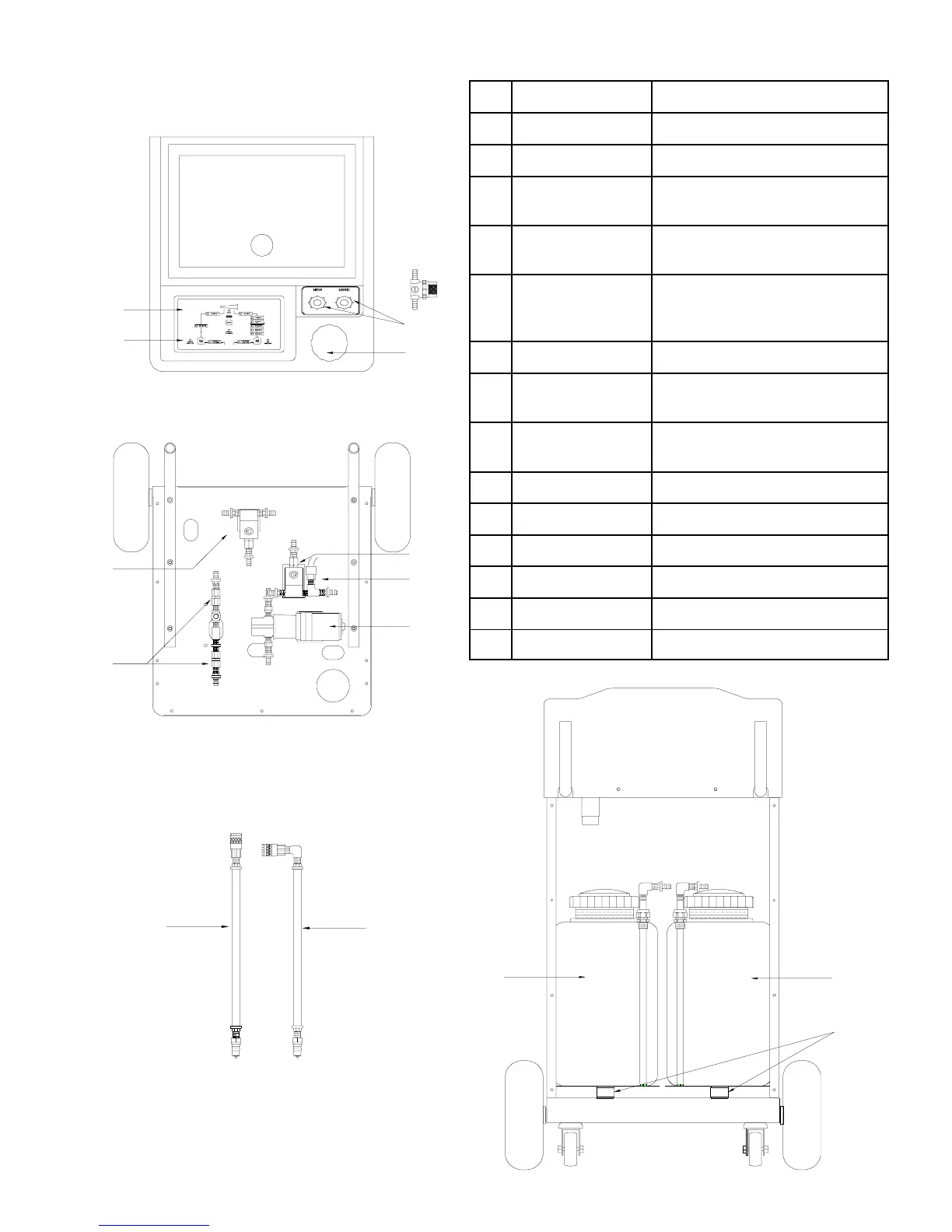

PARTS IDENTIFICATION ATX-2
Part No. Description
1 024-80077-00 Keypad Overlay ATX-2
2 024-80079-00 Circuit Board ATX-2 (12VDC)
3 025-80331-00 3-Way Solenoid 0.650CV
1/4 FPT (12VDC)
4 022-80112-00 Check Valve
1/4 FPT X 1/4 FPT (Viton)
5 026-80247-00
026-80248-00
Glass Sight 3/8" Barb Plastic
w/clear Bowl
Filter Mesh Cylinder 80 SS
6 021-80164-00 Deck Fill Assy ATX
7 025-80332-00 3-Way Solenoid 0.135CV
1/4 FPT (12VDC)
8 022-80111-00 Pressure Switch
4-6 psig SPST
9 026-80245-00 Pump Gear .33 GPM 12VDC
10 300-80014-00 Hose Assy Straight
11 300-80015-00 Hose Assy 90 Degree
12 300-80001-00 New Fluid Tank Assy ATX-2
13 300-80002-00 Used Fluid Tank Assy ATX-2
14 031-80000-00 Load Cell 35 Kg
