It’s Under Control
®
T3x
Wireless Remote Control
Programming the T3x
THE TOUCHSCREEN DISPLAY AND HARD BUTTONS
The T3x touchscreen display and buttons are programmed using the RTI
Integration Designer
®
programming software. (Integration Designer software
available to authorized RTI dealers only).
FIRMWARE AND SOFTWARE UPDATES
Please verify that you have the most recent rmware and software installed
for this and all RTI products. Authorized RTI dealers can download the latest
rmware and Integration Designer from the dealer section of www.rticorp.com.
INSTALLING FIRMWARE
1. Turn off the T3x - Press and hold the “Backlight” button and the “OK” buttons
simultaneously.
2. Connect the T3x dock to a PC using a USB cable (USB A to Micro B).
3. Press and hold the “5-way Joystick” button.
4a. Place the T3x into the docking station.
Or
4b. Connect the T3x to a PC directly using an RTI programming cable. (Contact
your local distributor to purchase this cable. The programming cable is also
included with the RTI IRPRO programming kit).
UPDATING INTEGRATION DESIGNER PROGRAMMING
RTI’s Integration Designer data les can be downloaded to the T3x using the
following methods:
• Connect the docking station to a PC using a USB cable (USB A to Micro B) and
place the T3x into the docking station.
Or
• Connect an RTI programming cable to the T3x and a PC. (Contact your local
distributor to purchase this cable. The programming cable is also included with
the RTI IRPRO programming kit).
Or
• Wirelessly via the local area Ethernet network (LAN). NOTE: Initial
programming including network settings will need to take place using the
docking station or the RTI programming cable.
Powering On/Off the T3x
TO POWER THE T3x ON:
• Press and hold the “Backlight” button and the “OK” buttons simultaneously
until the remote turns on (approx. 1-2 seconds).
OR
• Place the T3x in the docking station - this will automatically power the unit on.
(Docking station does not need to be powered).
NOTE: If the unit does not power on, it may be necessary to charge the battery.
See charging information below.
TO POWER THE T3x OFF:
• Press and hold the “Backlight” button and the “OK” buttons simultaneously
until the remote turns off (approx. 5 seconds).
NOTE: During normal operation, powering the T3x off should not be necessary.
CH
CH
THE T3x DOCKING STATION
Dock Connector: A 10-pin dock connector is used to insure a reliable connection between
the remote and the dock during battery charging and software/rmware downloads.
Micro USB Port: The T3x dock has a micro USB port (located on the backside) for
connection of the AC power supply cable or a standard USB A to Micro B cable for
connection to a PC.
Programmable
Keypad
Buttons
Camera

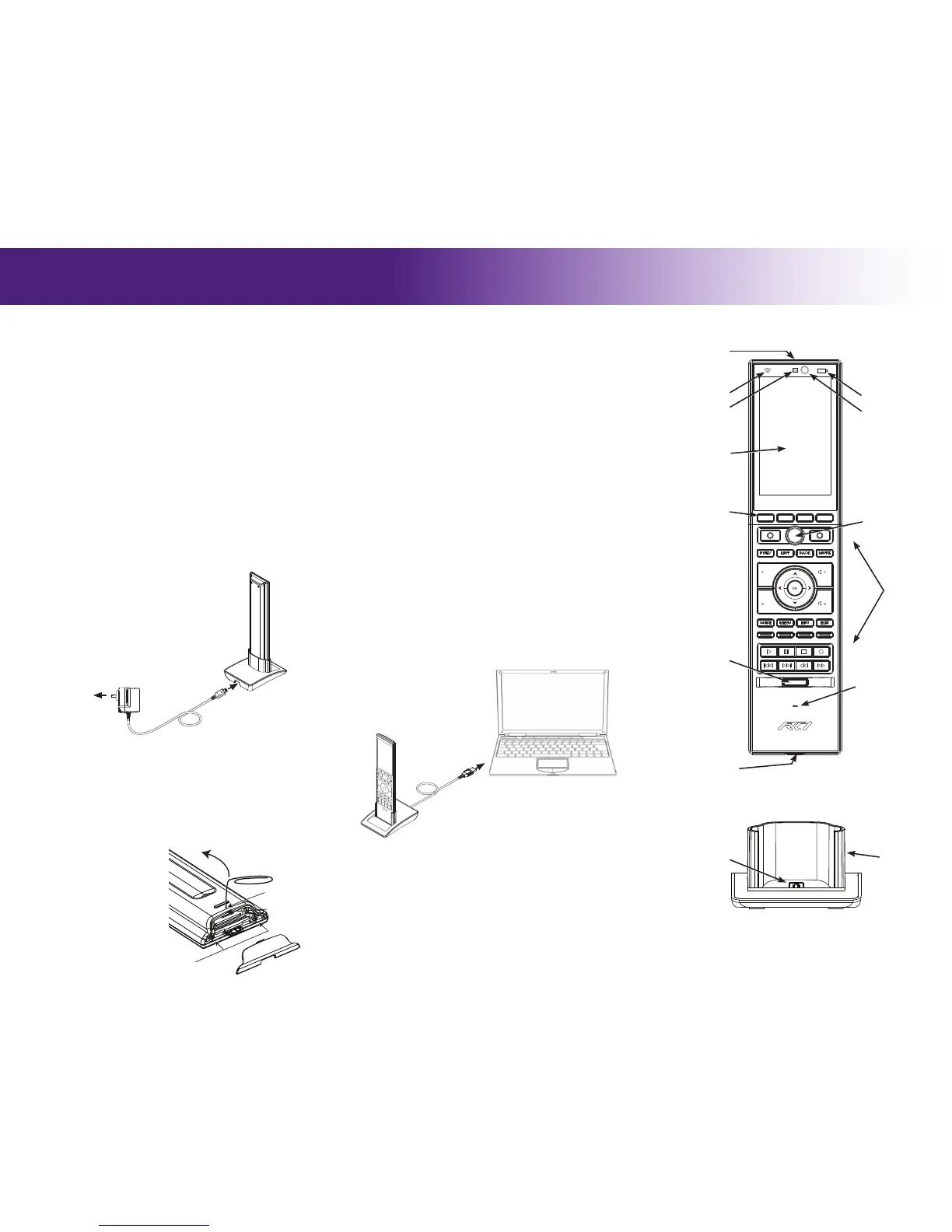

Front of T3x
Charging the T3x Battery
WHEN TO CHARGE THE T3x:
The T3x uses a Lithium-ion rechargeable battery which will not exhibit a memory
effect from being charged too often, therefore the remote control may be placed
into the dock when not in use.
• A low battery icon will illuminate at the top right of the T3x (above the display)
when the battery capacity becomes low and a charge cycle is required.
CHARGING THE T3x:
1. Locate and install the appropriate wall outlet plug onto the power supply.
2. Insert the micro USB end of the power supply cable into the USB port located
on the backside of the docking station.
3. Plug the power supply cable into a wall outlet.
4. Gently slide the T3x into the docking station clear plastic alignment sleeve
until the remote is seated on the dock connector.
NOTE: Plugging the T3x docking station into a PC
using a USB cable will also charge the T3x.
Backlight Button Color Guide:
Blue = Normal use
Red = Charging
Green = Fully charged
Multi-colored = Connected to a PC.
T3x Remote
(Backside)
Power Supply Cable
(With Micro USB Connector)
T3x Docking Station
(Backside)
To Wall Outlet
T3x Remote
USB A to Micro B Cable
T3x Docking Station
To PC USB port
PC
Downloading software/rmware updates
via the T3x docking station and USB cable
Replacing the T3x Battery
The following steps for removing the battery door should be performed by an
authorized service center or trained installer only.
REMOVE THE BATTERY DOOR:
1. Gently insert a small paper clip into the battery door latch hole until it stops
(see diagram).
2. Tilt the paper clip toward the top of the T3x to release the battery door latch.
REPLACE BATTERY:
1. Remove two (2) battery bracket screws
(Phillips head) and remove bracket.
2. Slide battery out of T3x by pulling on
plastic tab connected to battery.
3. Slide new battery into T3x with metal
contacts inserted rst and label
facing up.
4. Replace battery bracket and install
two (2) screws - in order to align
battery bracket properly, insert both
screws and tighten slightly, before
tightening fully.
5. Reinstall battery door - rst align the
wide end of the battery door against
the battery door opening, then
push the latch end of the door into
the T3x until it snaps in place.
T3x (Backside)
Battery Door
Battery Bracket Screws (2)
Battery Door
Latch Hole
Paper Clip
The T3x Control Panel
The control panel on the T3x allows many settings to be adjusted directly on the
remote control (see below). Please note: Settings adjusted via the T3x control
panel will be overwritten by the remote settings in Integration Designer after a
programming update takes place.
ACCESSING THE CONTROL PANEL
The Control Panel page can be displayed by holding down the “Backlight” button
until the page is displayed (approx. 5 seconds).
ADJUSTABLE SETTINGS
• Backlight Level • Time Out • Tilt Switch • Grip Sensor • Battery • Sound
• Calibrate Touchscreen • Network Information • Haptic Feedback
Battery Low Indicator
IR Transmission Window
Wireless Ethernet
Connection Indicator
Touchscreen Display
Backlight Button
Color Guide:
Blue = Normal use
Red = Charging
Green = Fully charged
Multi-colored = Connected
to a PC.
5-Way Joystick
Dock Connector Port
NOTE: The T3x dock connector port is used for battery charging and downloading
software/rmware updates into the remote. To insure a reliable connection between the
remote and the dock, the T3x utilizes a 10-pin connector that is compatible with a T3x
Docking Station or an RTI programming cable.
Dock Connector
Alignment Sleeve
Microphone
Light Sensor
Hard Buttons (4) with
Replaceable Keycaps:
NOTE: The keycaps on
these four buttons may
be replaced with the
keycaps that ship with the
T3x. Additionally, button
keycaps may be ordered
separately using the
RTI Laser Shark custom
engraving service.
