Z506 Reference Manual V2.1
9

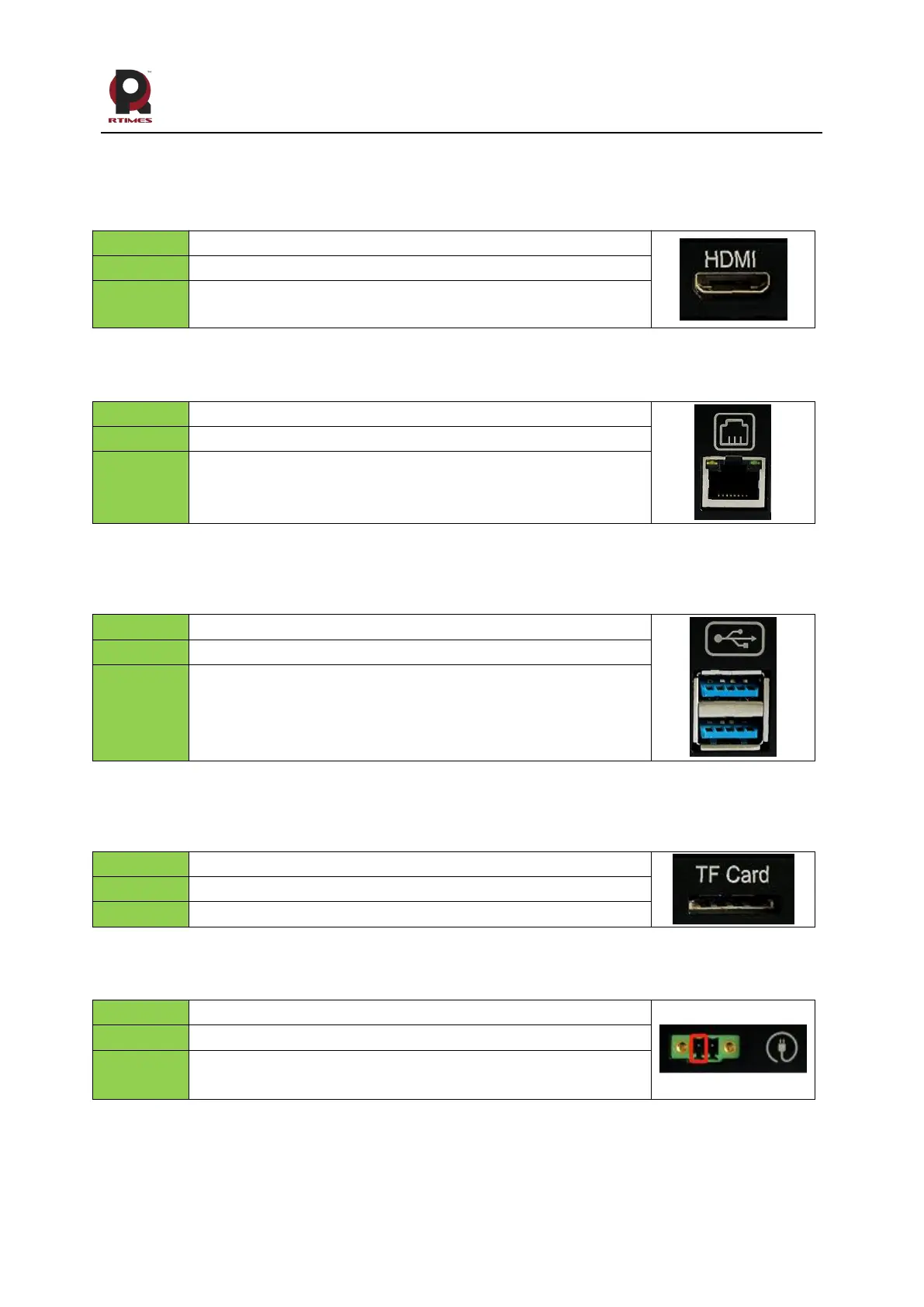

2 Connectors Description
2.1 Mini HDMI interface
Function
HDMI output interface
Marking
HDMI
Type
Mini HDMI connector
2.2 Ethernet connector
Function
Gigabit Ethernet connector
Marking
ETH
Type
RJ45
2.3 USB3.0 interface
Function
USB3.0 interface
Marking
USB3.0
Type
Type-A
The upper layer is USB2.0
The lower layer is USB3.0
2.4 SD Card Slot
Function
SD Card Slot
Marking
TF card
Type
Micro SD（TF）
2.5 Power input port
Function
Power input port
Marking
12V
Type
2 Pin interface
Note: The position of the red box in the right picture is positive.
