3.3.2 Allowed lifting and turning operations

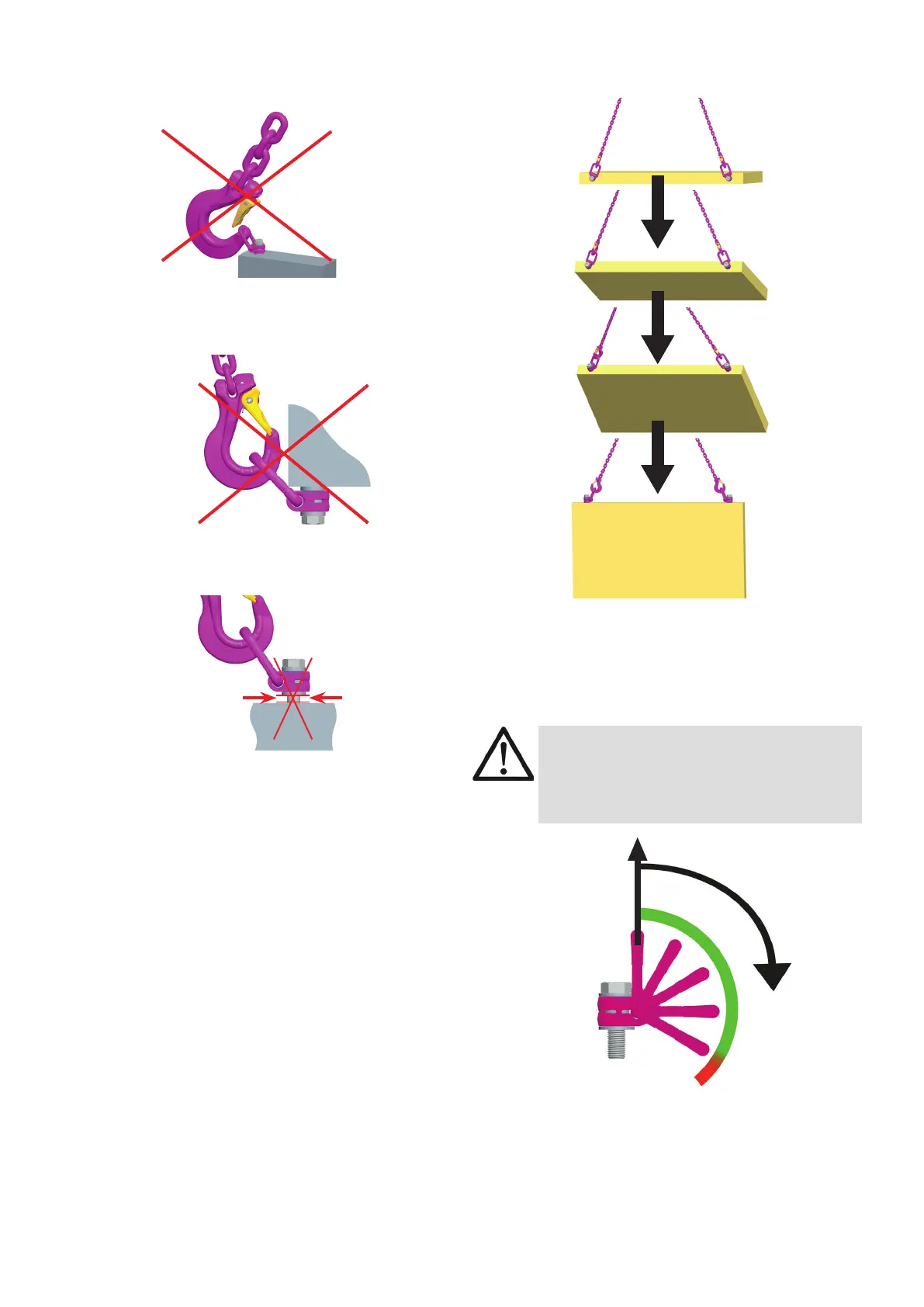

Pic. 5: Possible turning operation with the VLBG-PLUS
The following turning operations are allowed
• Turning operations where the load ring will be turned
into the load direction
WARNING
The load ring must not support itself at edges
or other attachments.
Also the attached lifting mean must not touch
the head of the bolt.
F
Pic. 6: Pivoting in load direction
• Turning operations where the VLBG-PLUS will be
turned around the bolt axle (exception: see chapter
3.3.3 Forbidden lifting and turning operations).
After a full turn by 180° the torque of the bolt must be
checked.
• Keep in mind that the lifting means in the VLBG-PLUS
must be freely movable.
Pic. 2: Use only suitable lifting means for hanging or
hooking into the VLBG-PLUS
• A bending load of the suspension ring is not permitted!
Pic. 3: The load must move freely and must not be loaded
at edges
• Always completely engage the lifting point.
Pic. 4: The lifting point must be completely screwed in.
