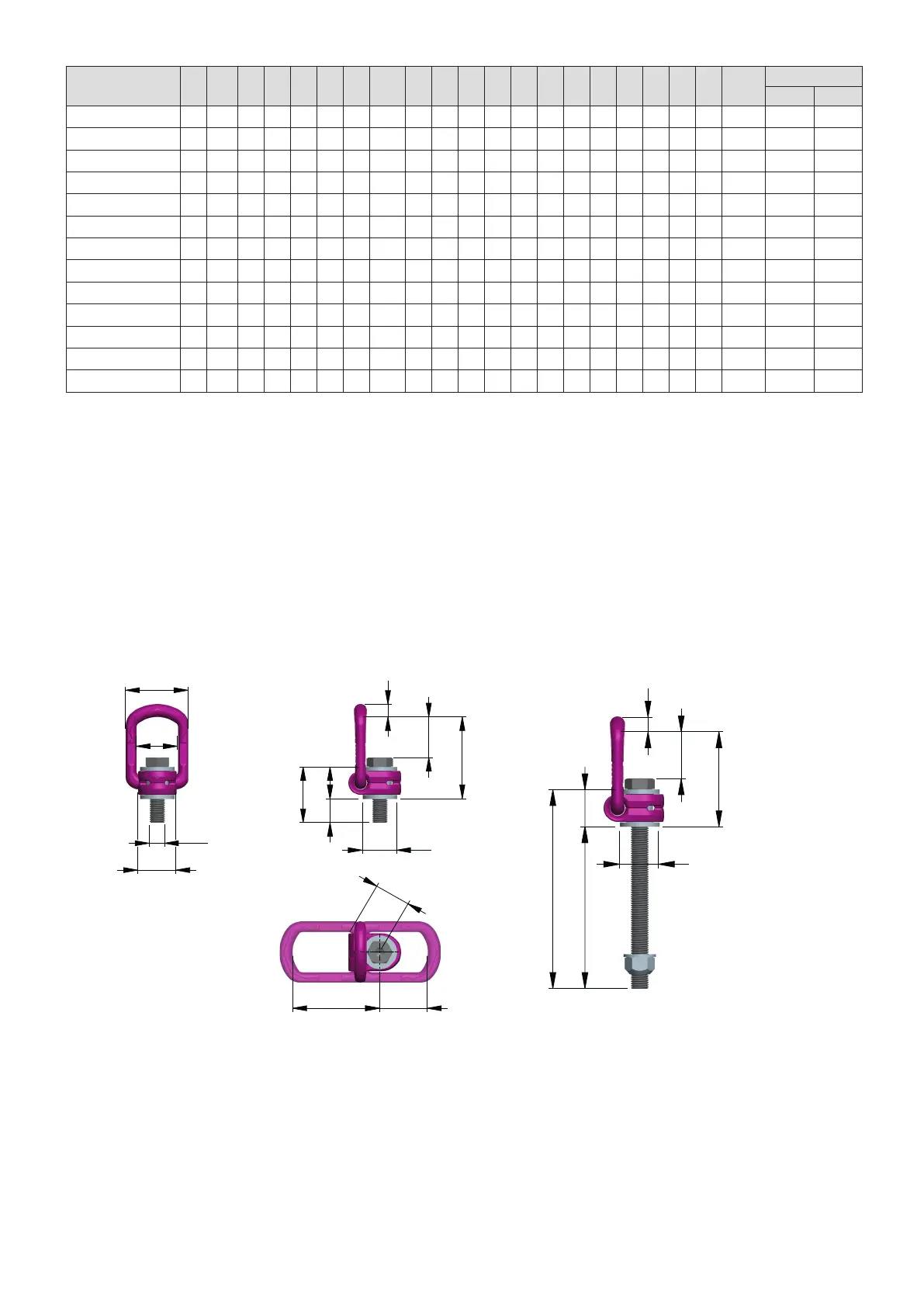

RUD VLBG-PLUS - Dimensioning and Technical Data; Dimensioning Table

7VLBG-PLUS
B
C
M
A
D
H
G
L
T
E
F
K
J
N
max.
max.
D
G
T
F
E
H
L
Table 3: Dimensioning Subject to technical modications
SW = wrench size
ISK = internal hexagon /
* from L=351 mm without internal hexagon
Type
WLL
[t]
weight
[kg]
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
G
[mm]
H
stand
[mm]
H
max
[mm]
J
[mm]
K
[mm]
L
Stand
[mm]
L
max
[mm]
M N
[mm]
SW ISK T
[mm]
torque Art.-No.
Standard Vario
VLBG-PLUS 0.63t M8 0.63 0.3 30 52 34 24 40 10 29 11 76 75 45 40 105 8 32 13 5 75 30 Nm 8504651 8600470
VLBG-PLUS 0.9t M10 0.9 0.31 30 52 34 24 39 10 29 15 96 75 45 44 125 10 32 17 6 75 60 Nm 8504652 8600471
VLBG-PLUS 1.35t M12 1.35 0.34 32 52 34 26 38 10 29 18 116 75 45 47 145 12 32 19 8 75 150 Nm 8504653 8600472
VLBG-PLUS 1.2t M14 1.2 0.5 34.5 56 38 30 39 13.5 36 24 34 86 47 60 70 14 38 24 10 85 150 Nm 8504654 8600473
VLBG-PLUS 2t M16 2 0.55 34.5 56 38 30 39 13.5 36 22 149 86 47 58 185 16 38 24 10 85 150 Nm 8504655 8600474
VLBG-PLUS 2t M18 2 1.3 50 82 54 45 55 17 43 37 222 113 64 80 90 18 48 30 12 110 200 Nm 8504656 8600475
VLBG-PLUS 3.5t M20 3.5 1.3 50 82 54 45 55 17 43 32 187 113 64 75 230 20 48 30 12 110 400 Nm 8504657 8600476
VLBG-PLUS 4.5t M24 4.5 1.4 50 82 54 45 67 17 43 37 222 130 78 80 265 24 48 36 14 125 760 Nm 8504659 8600478
VLBG-PLUS 6.7t M30 6.7 3.2 60 103 65 60 67 22.5 61 49 279 151 80 110 340 30 67 46 17 147 1000 Nm 8504661 8600480
VLBG-PLUS 8t M36 8 6.2 77 122 82 70 97 26.5 77 63 223 205 113 140 300 36 79 55 22 196 800 Nm 7983553 8600289
VLBG-PLUS 10t M42 10 6.7 77 122 82 70 94 26.5 77 73 273 205 113 150 350 42 79 65 24 196 1000 Nm 7983554 8600290
VLBG-PLUS 15t M42 15 10.9 95 156 100 85 109 36 87 63 413 230 130 150 500 42 100 65 24* 222 1500 Nm 7982966 8600291
VLBG-PLUS 20t M48 20 11.6 95 156 100 95 105 36 87 73 303 230 130 160 350 48 100 75 27 222 2000 Nm 7982967 8600292
