Ruida mainboard network connections instruction

3 / 4

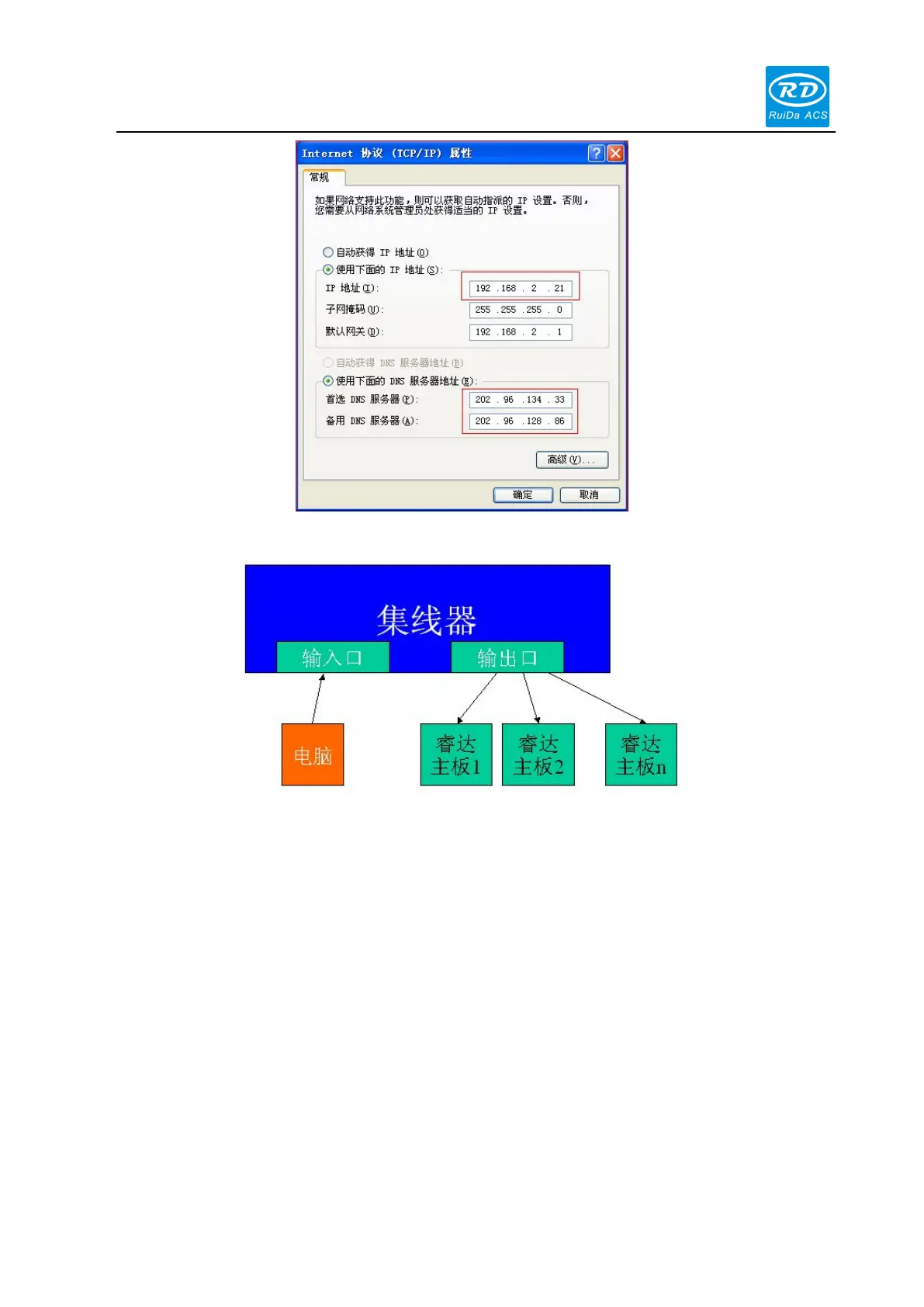

3. Ruida multiple-mainboard connects to computer via concentrator.

3.1 The input port: computer connects to concentrator; output port: Ruida multiple-mainboard connect to

concentrator.

3.2 Set each Ruida mainboard with different IP address: 192.168.001.100 ~192.168.001.149

3.3 Set the computer IP address: 192.168.001.2 ~192.168.001.049

4. Ruida multiple-mainboard connects to computer via router.
