Cable Connection
12 Pin Cable Connection

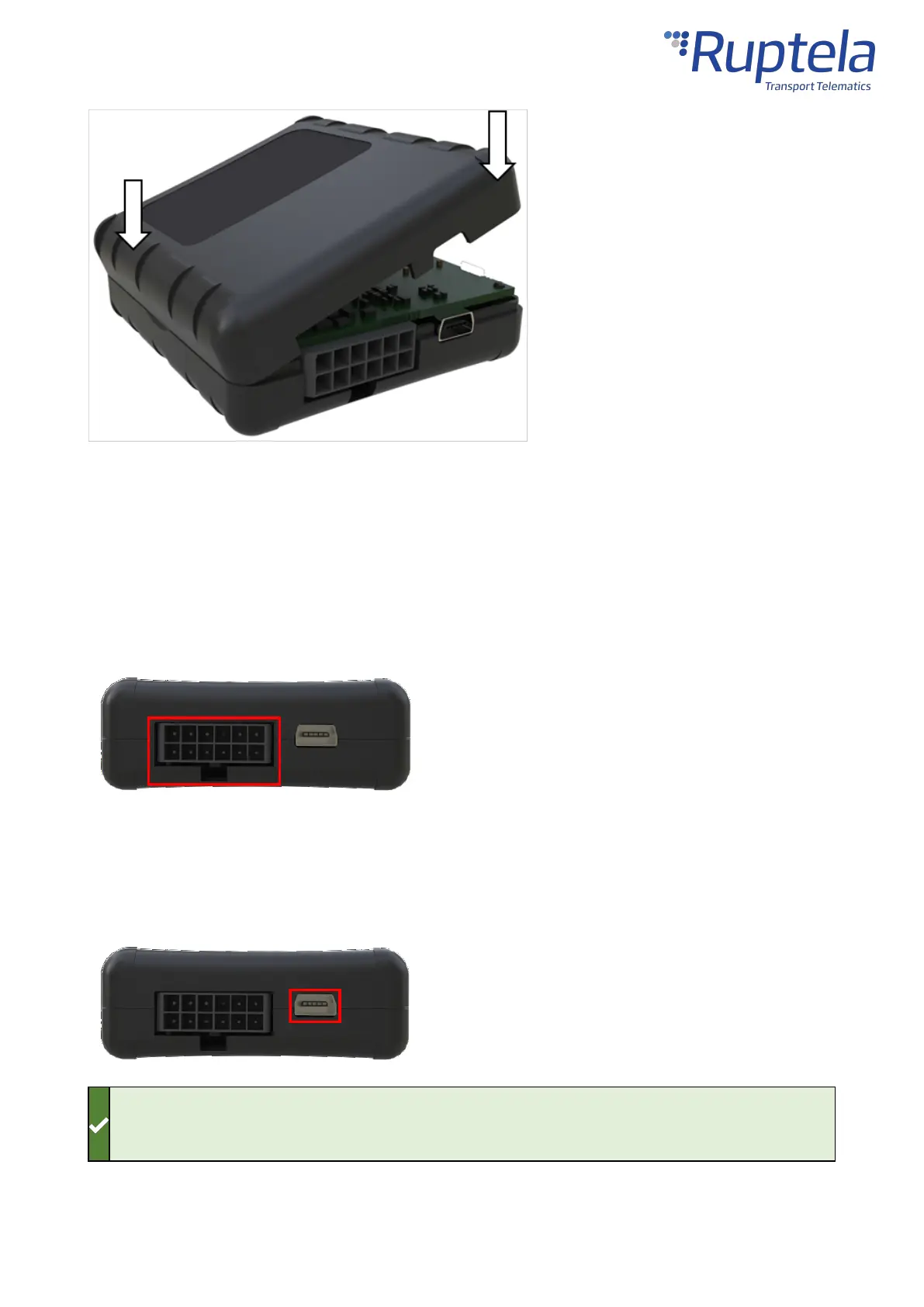

Connect the wiring harness to the 12 Pin Micro-Fit port on the device as shown in the image below. The
harness can be connected in only one way.
USB Cable Connection
Connect the USB cable to the mini USB port as shown in the image below. The cable can be connected in
only one way. Connect the other end to your computer.
The device can be configured when powered via USB, using an external power supply for
configuration is optional.

