RUPTELA Trace5 - Wiring Diagrams and Installation Assistant

37

Correct
Incorrect
Incorrect device installation may result in reduced tracking accuracy.

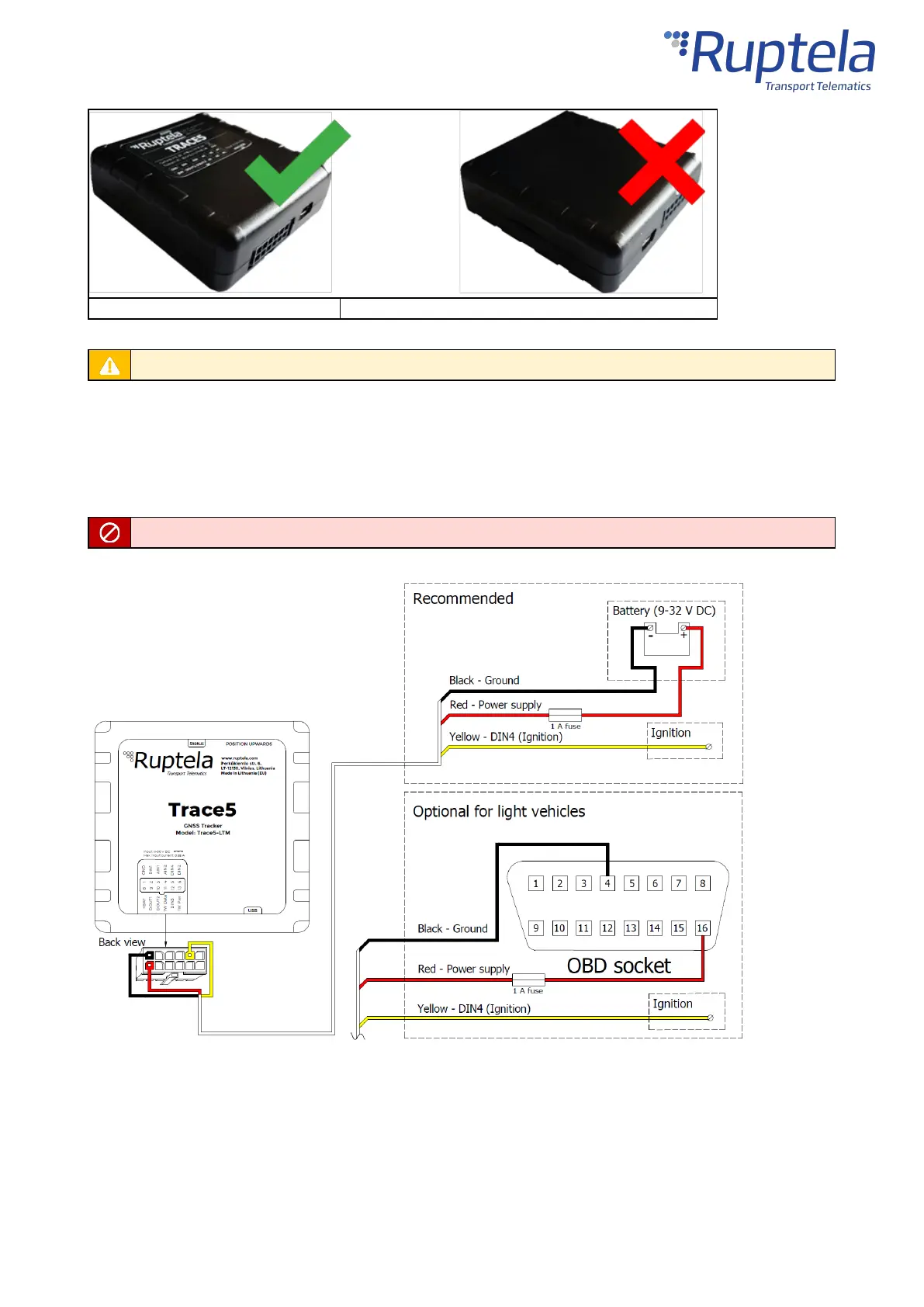

Wiring Diagram
Power input: 8-30 V DC.
It is mandatory to use an external automotive 1 A fuse.
Installation Assistant
