Linking fixtures to power in a chain
If you obtain a 14 AWG or 1.5mm
2
power input cable and 14 AWG or 1.5mm
2
throughput cables from Martin™ (see ‘Accessories’ on page 41), you can relay
mains power from one fixture to another by connecting fixtures to power in a
linked daisy-chain, MAINS OUT throughput socket to MAINS IN input socket.
Using 14 AWG or 1.5mm
2
cables from Martin™, you can link:
• Maximum eight (8) RUSH MH 5 fixtures in total at 100-120 V, or
• Maximum eighteen (18) RUSH MH 5 fixtures in total at 200-240 V.
If you install a power plug on the 14 AWG / 1.5 mm
2
power input cable, install
a grounding type (earthed) plug with integral cable grip that is rated minimum
16 A, 250 V.

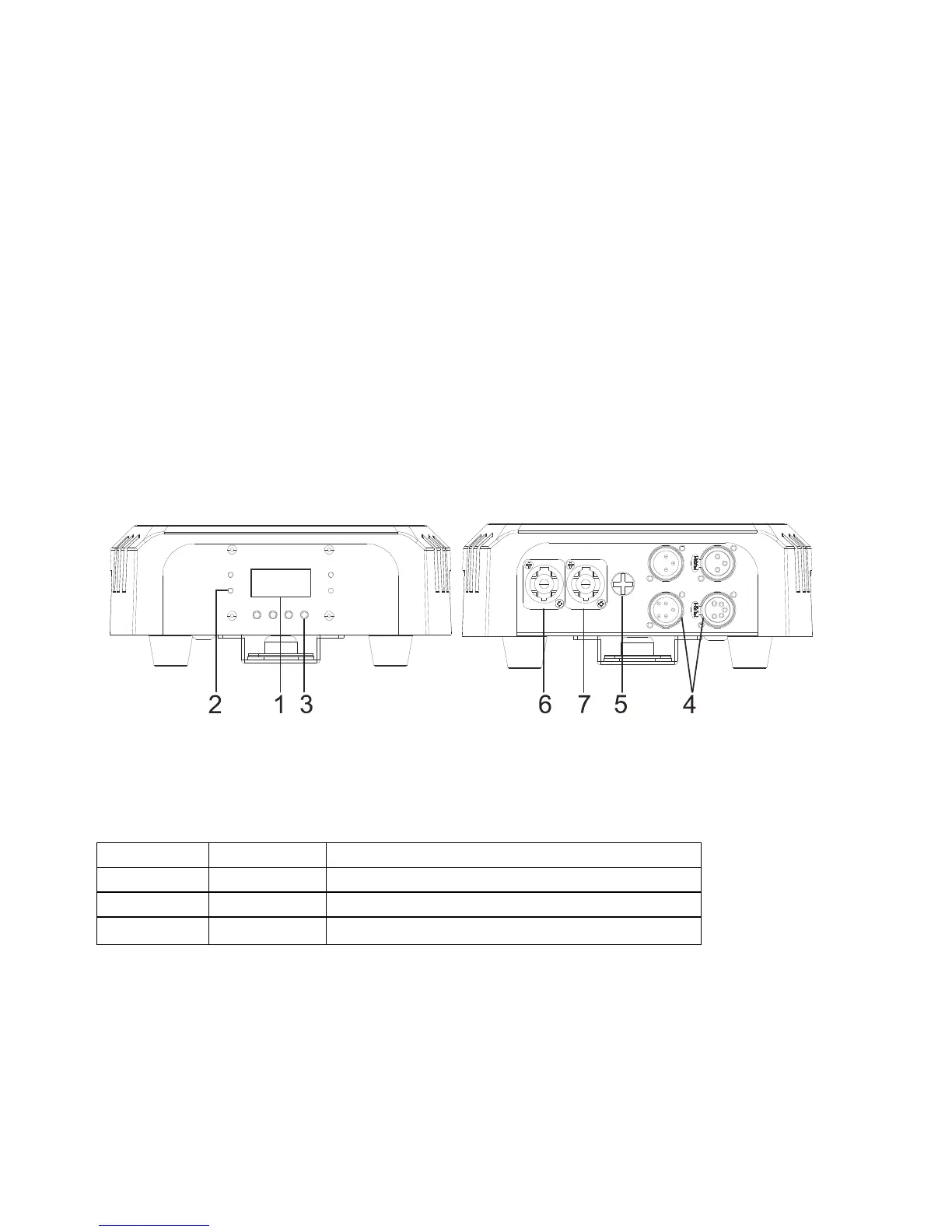

Fixture overview
1 - Display
2 - Status LEDs
The LEDs on the front of the base give the following indications:
DMX On DMX input present
MASTER On Master mode
SLAVE On Slave mode
SOUND Flashing Sound activation (Music trig)
