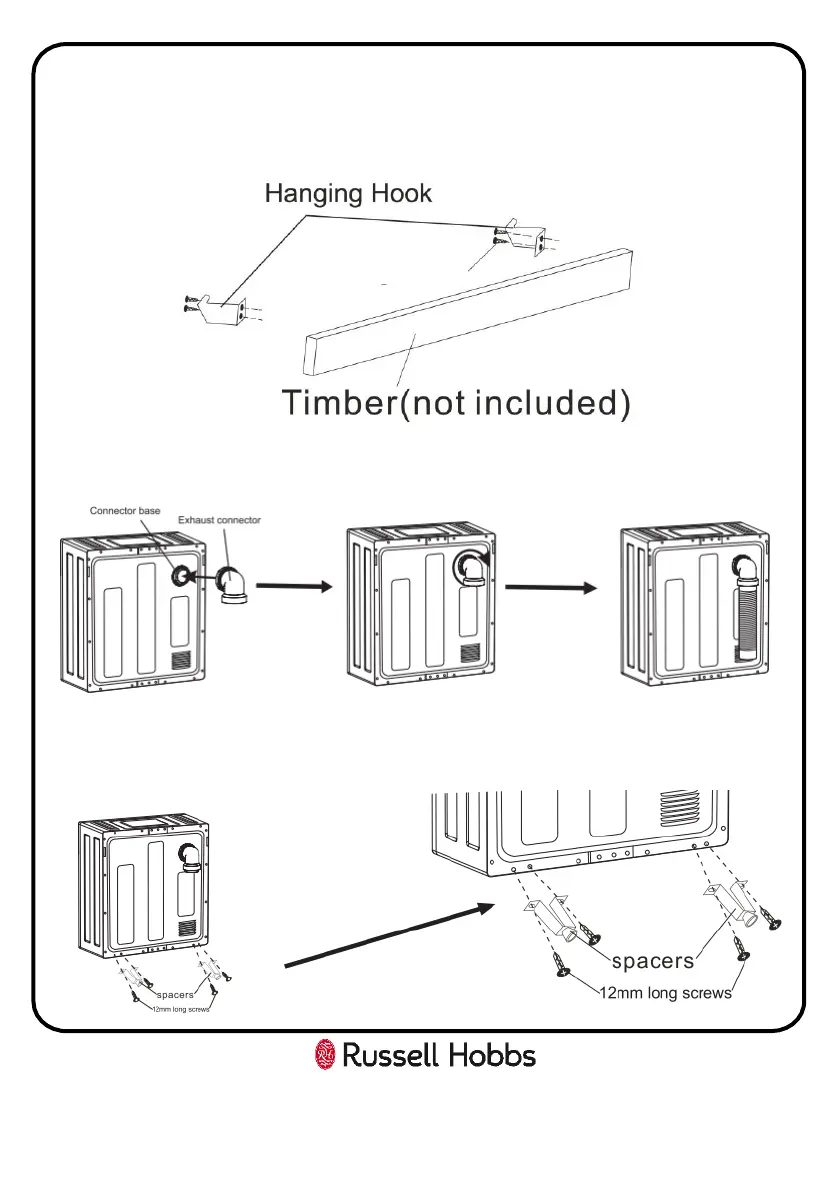

4. Install and fix the hanging hooks to the timber studs or timber slats
(ensuring the hooks are aligned) with the 4 x 25mm screws.
5. Install or adjust the exhaust connector direction by turning the exhaust
connector clockwise, until it inserts into the connector's groove.
6. Using 4 x 12mm screws provided, fix the 2 spacers to the rear of the
appliance.
16
Wall Installation
25mm screws
