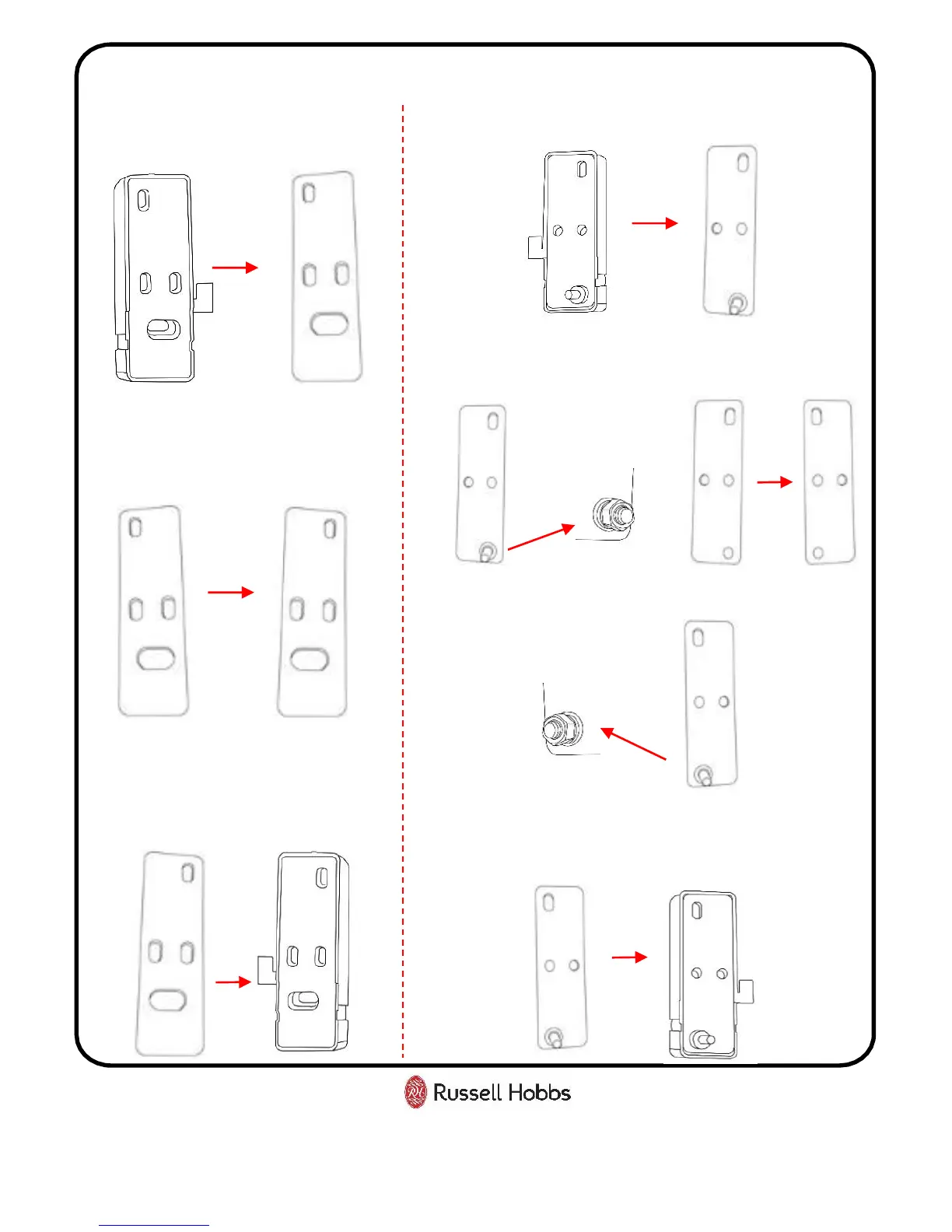

Step 1 - remove the metal plate from the foot.
Step 2 - remove the pin and washer from the
metal plate by removing the bolt at the back.
Then flip over the metal plate 180°.
Step 3 – fix the pin and back in to place with
the bolt.
Step 4 - put the metal plate that has been
flipped over 180° and has the pin and washer
fixed back in place in to the opposite foot.
Step 1 - remove the plastic
plate from the foot.
Step 2 - flip over the plastic
plate 180°.
Step 3 - put the plastic plate
that has been flipped over
180° in to the opposite foot.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
19
Door Reversal
The bolt is at the
back of metal plate
bolt should be on the
back of the metal plate
