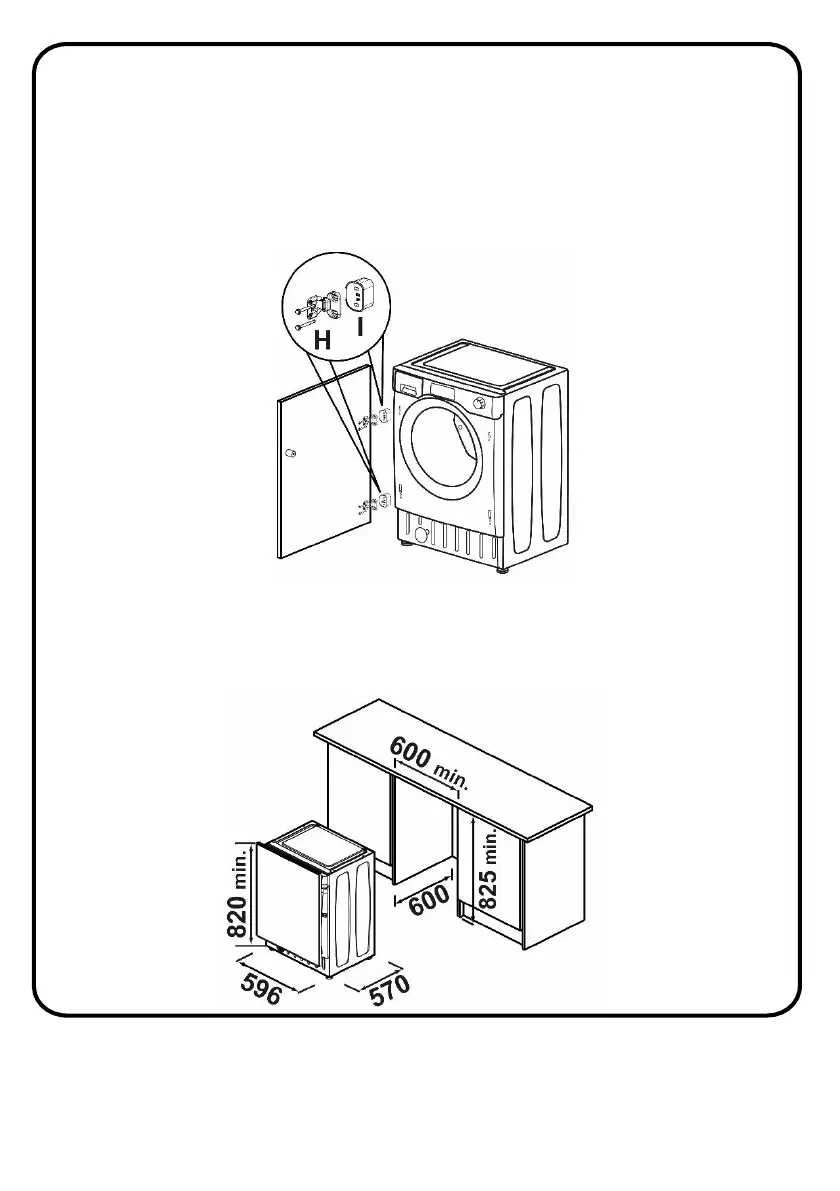

• Mount the furniture door to the front of the washer using the hinges.
Place the spacers under the hinges (I) and then fix in position with screw
(H). We suggest mounting the furniture door so that it opens towards
the left, which is the same direction as the porthole door. This will
leave more space when you are loading washing into the appliance.
• Slide the washer into a minimum aperture size of (H)825mm x
(W)600mm x (D)600mm. A furniture plinth may be run across the front
of the appliance, but its height will be dictated by the height the washer
is set at.
Instructions for mounting the furniture door
