Water inlet hose connection

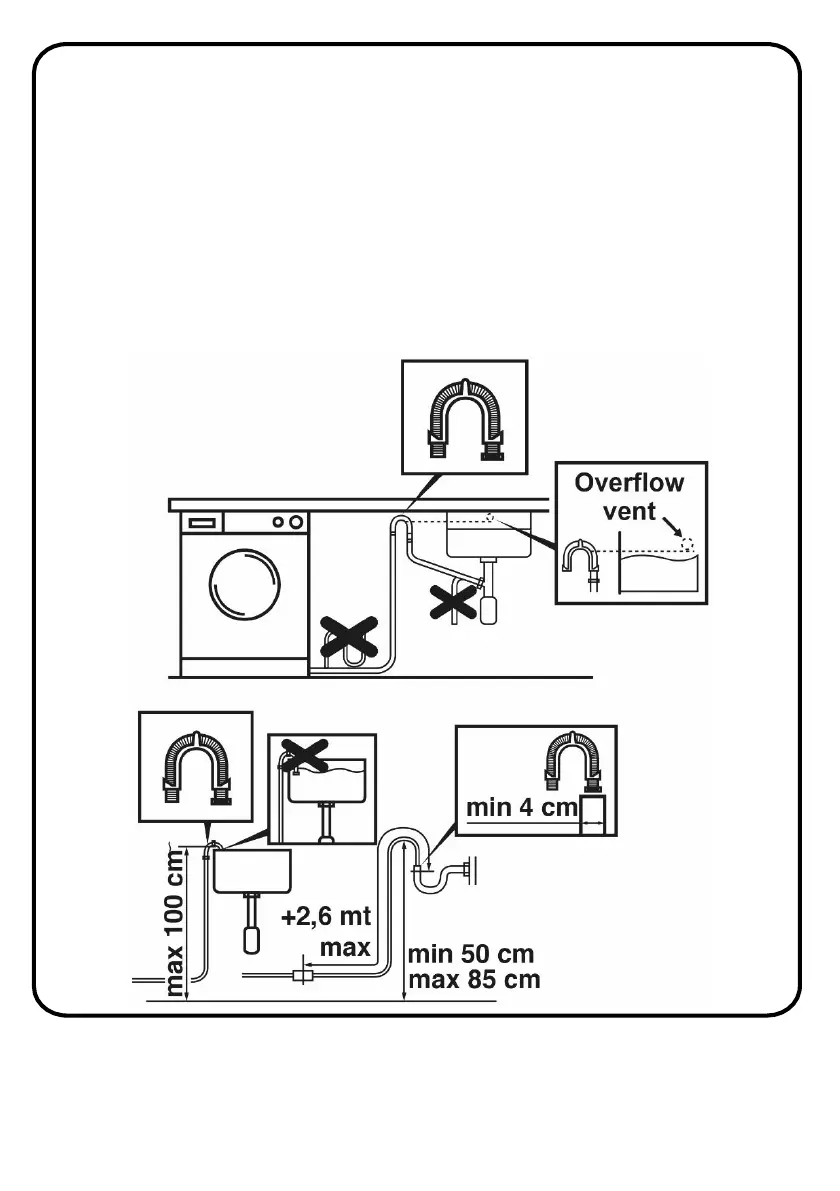

• The washing machine should be installed in its final position
such that the water fill hose is not kinked or trapped. The
corrugated drain hose should be inserted into suitable drain
pipe of between 50cm and 85cm height above the floor using
the curved drain hose support. If an under sink connection is
used the drain hose must be routed above the sink overfill
openingto prevent back siphoning. Care must be taken to avoid
kinking or trapping the drain hose (fig. 6).
15
Fig 6.
