===:e!)' •.,.........,••.••ovlde the proper draft
operate. For your Russo to
?nJIDEm,
a draft of between .04 w.e.
- needed.
iameter of the chimney must not be
Your Russo Coal/Wood Stove can safely and
effectively be connected to either pre-fabricated/
factory-built or a Class A masonry chimney. Only
(UL) Underwriters Laboratories listed and ap-
proved factory-built chimneys should be used.
Installations of these chimneys should be made
exactly to the manufacturer's specifications.
NOTE: A stove pipe should never be used for a
chimney.
Masonry chimneys must be lined for safety. A
masonry chimney should be inspected and
cleaned before installation and burning of your
stove.
Many performance problems that occur with
/
stoves are a result of poor draft or faulty chimney
I
systems. Please assure your chimney system is

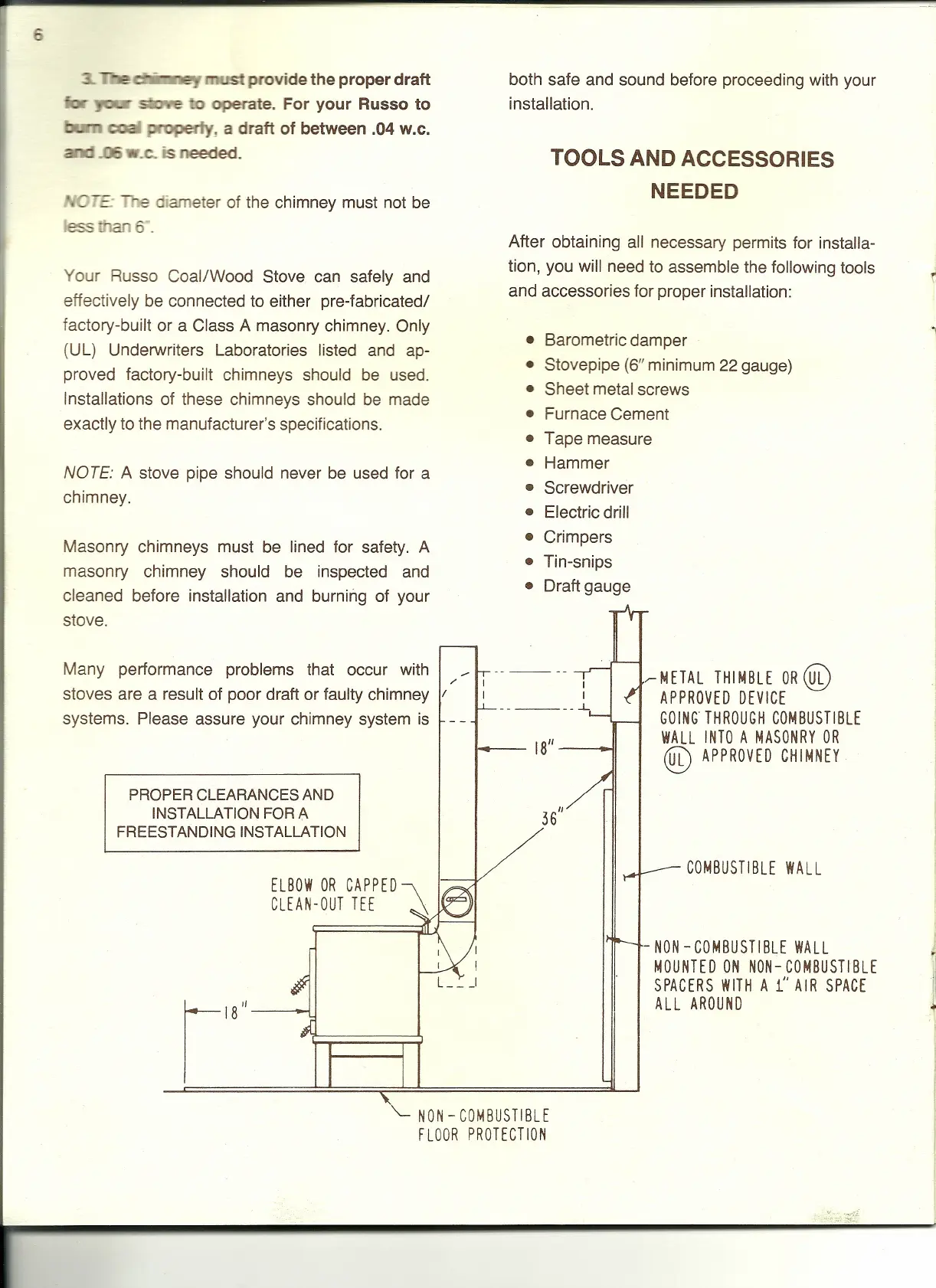

PROPER CLEARANCES AND
INSTALLATION FOR
A
FREESTANDING INSTALLATION
ELBOW OR CAPPED \.
CLEAN-OUT TEE
.x
"- NON-COMBUSTIBLE
FLOOR PROTECT ION
both safe and sound before proceeding with your
installation.
TOOLS AND ACCESSORIES
NEEDED
After obtaining all necessary permits for installa-
tion, you will need to assemble the following tools
and accessories for proper installation:
• Barometric damper
• Stovepipe
(6/1
minimum 22 gauge)
• Sheet metal screws
• Furnace Cement
• Tape measure
• Hammer
• Screwdriver
• Electric drill
• Crimpers
• Tin-snips
• Draft gauge
I
I
______ ...L
r-
METAL THI MBLE OR
®
APPROVED DEVICE
GOING' THROUGH COMBUSTIBLE
WALL INTO A MASONRY OR
~ APPROVED CHIMNEY
4
18"
---11--11
COMBUSTIBLE WALL
-NON-COMBUSTIBLE WALL
MOUNTED ON NON- COMBUSTIBLE
SPACERS WITH A
r
AIR SPACE
ALL AROUND
