3

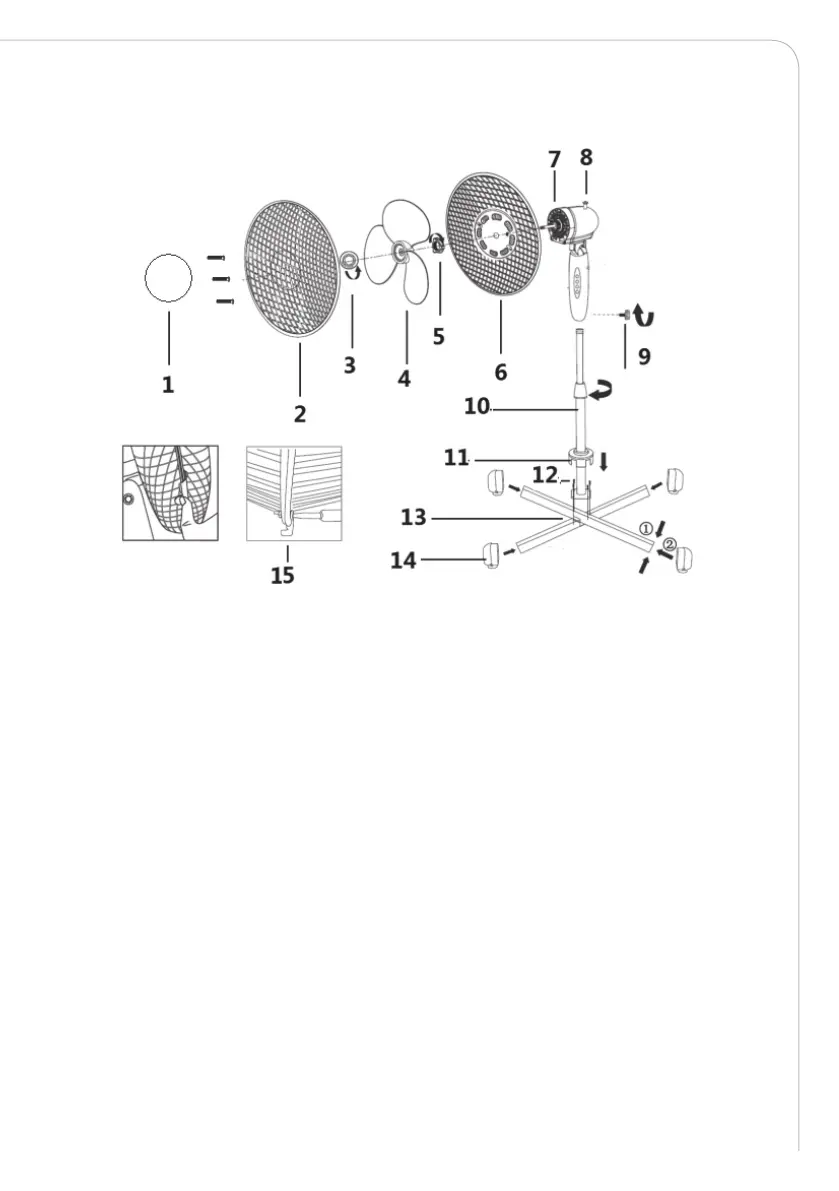

PARTS AND ASSEMBLY
1. Logo Plate
2. Front grill
3. Blade cap
4. Blade
5. Nut
6. Rear grill
7. Motor
8. Oscillation knob
9. Control box Screw
10. Tube
11. Small plastic base
12. Screws (4 pcs)
13. Cross base (2 pcs)
14. Cross base feet (4 pcs)
15. Grill clip
