REPLACING THE CHAIN DRUM
REPLACING THE DISPOSABLE CHAIN DRUM
Information guide on how to replace the Chain Drum.
Genuine Rustibus® parts only! Machine may vary from pictures

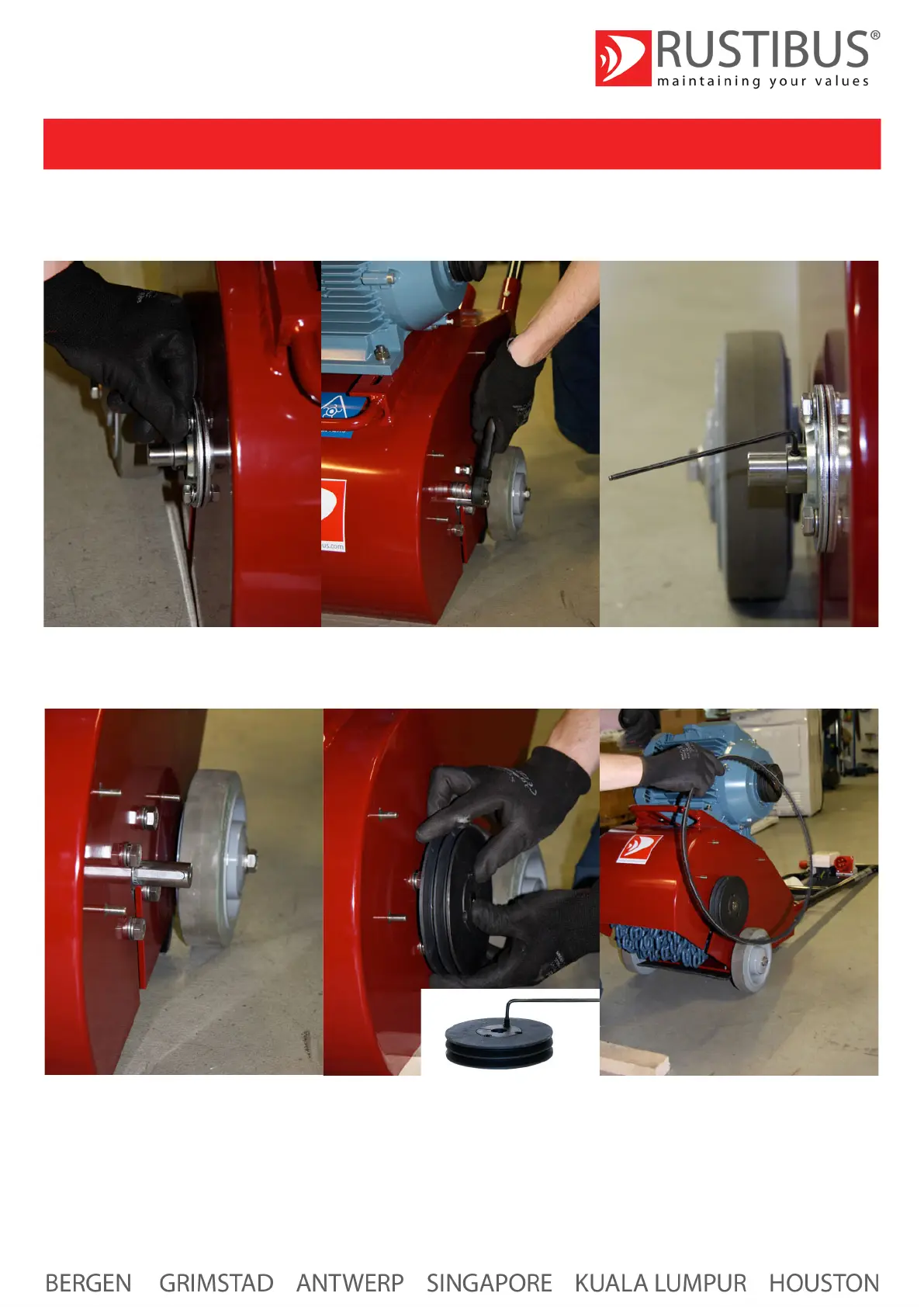

6. Put on the bolts, but don´t fasten
them more then necessary aswell.
9.Position the *key*(*g.1) on the
shaft with the square bearing.
7. Now fasten the bolts on the square
beraing tight.
8. Go back and fasten the round
bearing completely. Also the allen
screw (*g.2).
10.Put on the Pulley and make sure
its level. Cross thight the pulley in
the 2 *umbrako-holes.
*g.1
*g.2
*
*
11. Lay down machine like the
picture so the chain drum is free to
rotate.
(On the LOW machine you have to
put the machine in a upright
position (on the power weight/at
front) so the chain drum is free to
rotate).
