Ryobi 320BVr - Page 71

E25
PARTS LIST
1
5
8
3
10
18
7
11
24
23
25
20
1
21
19
14
3
22
21
Item Part No. Description
1 753-04450 Engine Cover Assm (includes 2)
2 791-181345 Screw
3 753-04451 Handle Assm (includes 2)
4 791-182419 Throttle control Assm (includes 5-7 & 9)
5 791-182420 Upper Throttle Control Plate
6 791-00048 Throttle Control Lever
7 791-182423 Screw
8 791-182405 Rocker Switch Assm
9 791-182422 Lower Throttle Control Plate
10 791-00049 Throttle Cable
11 791-182408 Engine Mount Plate (includes 12 & 13)
12 791-182409 Washer
13 791-181903 Screw
14 753-04453 Impeller Blade
15 791-181350 Washer
16 791-182413 Lock Washer
17 791-182414 Bolt
18 753-04456 Vacuum Door Spring
Item Part
No. Description
19 753-04455 Vacuum Door Lock
20 753-04454 Vacuum Door
21 791-182424 Mounting Plate Hardware
22 791-182647 Blower Tube
23 753-04457 Vacuum Bag Adaptor
24 791-180466 Upper Vacuum Tube
25 791-180467 Lower Vacuum Tube
* 791-612930 Cable Tie
* 753-04458 Vacuum Bag Assm
(includes 23, Bag, & Cable Tie)
* Items Not Shown

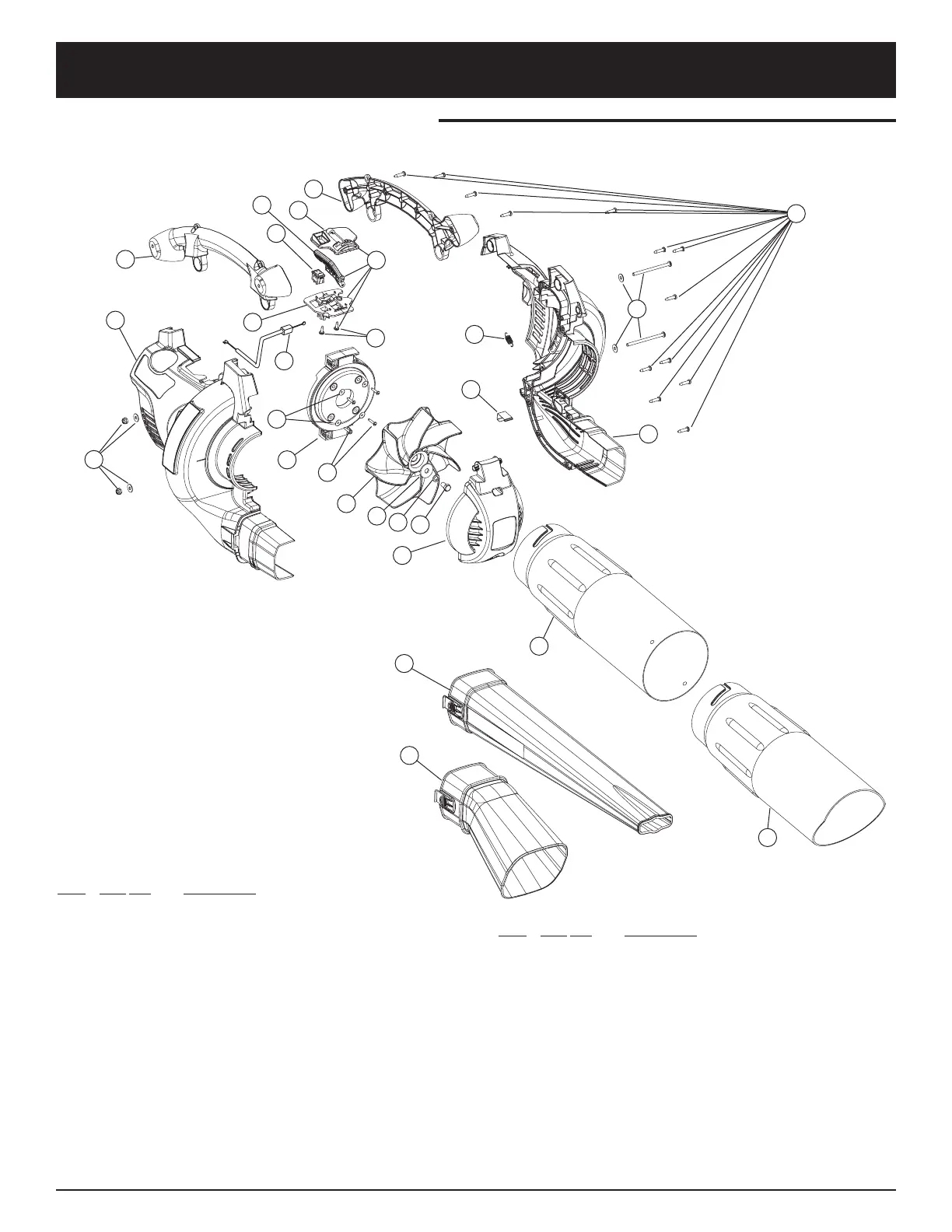

HOUSING PARTS - MODEL 320BVr
2-CYCLE GAS MULCHING BLOWER VACUUM
6
13
12
15
16
17
2
4
9
