Ryobi CS30, SS30, BC30 User Manual

Page 11
ATTACHING THE FRONT HANDLE - CS30
AND SS30

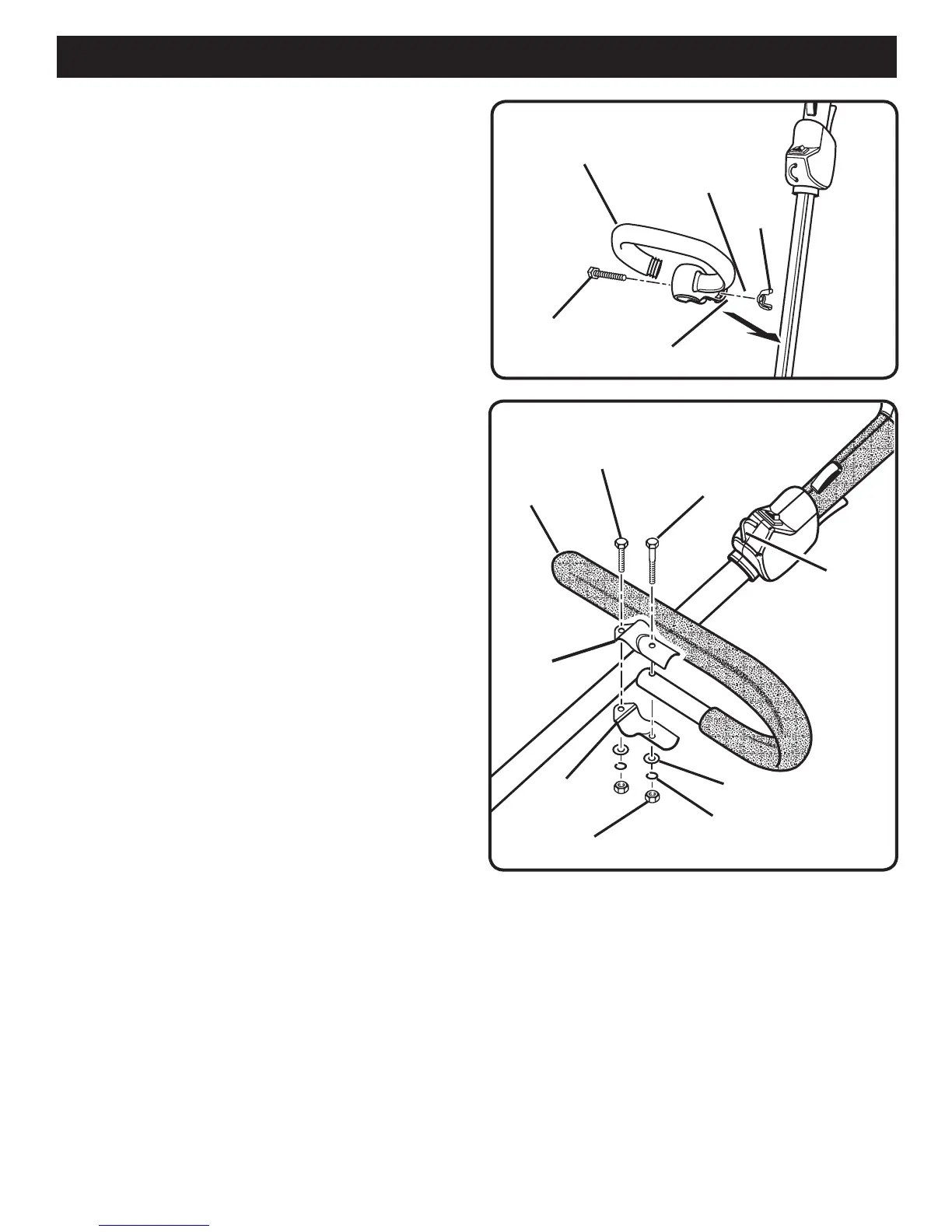

See Figure 4.
1. Remove the front handle, bolt, flat washer, lock washer,
and wing nut from the Owner’s Kit.
2. Install the front handle onto the top side of the drive shaft
housing and move it to a comfortable position.
3. Place the bolt through the front handle
NOTE: The hex bolt head fits inside the hex recess molded
into one side of the handle.
4. Install the flat washer, lock washer, and wing nut.
5. Tighten wing nut securely.
ATTACHING THE “J” BARRIER HANDLE -
BC30
See Figure 5.
A barrier handle must be used for ensuring the best control
and maximizing operator safety when using a brushcutter.
1. Hold the top and bottom clamp snugly in position on the
shaft housing so that handle will be located to the operator's
left.
2. Insert the end of the handle between the clamps.
3. Align the bolt holes and push the long bolt (1/4-20 x 1-1/2 in.)
through the handle side.
4. Place short bolt (1/4-20 x 1 in.) through opposite side of
clamp. Install flat washer, lock washers and hex nuts to
hold the assembly in place.
5. After assembly is complete, adjust the position of the
handle for best balance and comfort.
6. Tighten first the long bolt and then the short bolt.
ASSEMBLY
WING
NUT
FRONT HANDLE
BOLT
Fig. 4
Fig. 5
CLAMP
FLAT WASHER
LOCK WASHER
HEX NUT
STRAP
HANGER
BOLT
1/4-20 x 1 1/2 in.
CLAMP
FRONT
HANDLE
BOLT
1/4-20 x 1 in.
LOCK
WASHER
FLAT WASHER
