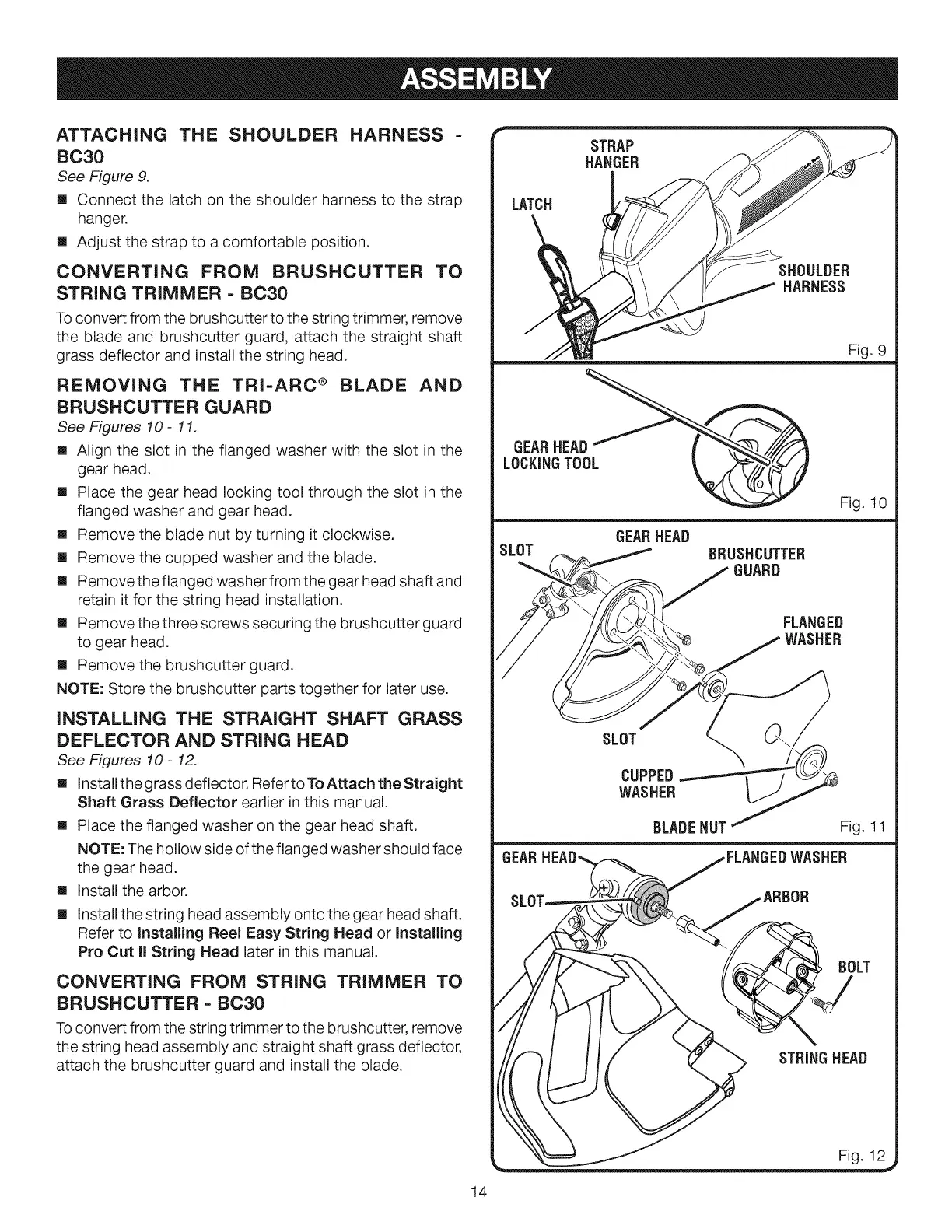

ATTACHING THE SHOULDER HARNESS =
BC30
See Figure 9.
[] Connect the latch on the shoulder harness to the strap
hanger.
[] Adjust the strap to a comfortable position.
CONVERTING FROM BRUSHCUTTER TO
STRING TRIMMER = BC30
Toconvert from the brushcutter to the string trimmer, remove
the blade and brushcutter guard, attach the straight shaft
grass deflector and install the string head.
REMOVING THE TRI=ARC ® BLADE AND
BRUSHCUTTER GUARD
See Figures 10- 11.
[] Align the slot in the flanged washer with the slot in the
gear head.
[] Place the gear head locking tool through the slot in the
flanged washer and gear head.
[] Remove the blade nut by turning it clockwise.
[] Remove the cupped washer and the blade.
[] Remove the flanged washer from the gear head shaft and
retain it for the string head installation.
[] Remove the three screws securing the brushcutter guard
to gear head.
[] Remove the brushcutter guard.
NOTE: Store the brushcutter parts together for later use.
INSTALLING THE STRAIGHT SHAFT GRASS
DEFLECTOR AND STRING HEAD
See Figures 10- 12.
[] Install the grass deflector. Refer to ToAttach the Straight
Shaft Grass Deflector earlier in this manual.
[] Place the flanged washer on the gear head shaft.
NOTE: The hollow side of the flanged washer should face
the gear head.
[] Install the arbor.
[] Install the string head assembly onto the gear head shaft.
Refer to Installing Reel Easy String Head or Installing
Pro Cut II String Head later in this manual.
CONVERTING FROM STRING TRIMMER TO
BRUSHCUTTER = BC30
Toconvert from the string trimmer to the brushcutter, remove
the string head assembly and straight shaft grass deflector,
attach the brushcutter guard and install the blade.
STRAP
HANGER
LATCH
HARNESS
GEARHEAD_
LOCKINGTOOL
GEARHEAD
BBUSHCUTTEB
GUARD
Fig. 9
Fig. 10
FLANGED
WASHER
GEAR WASHER
BOLT
Fig. 12
14
