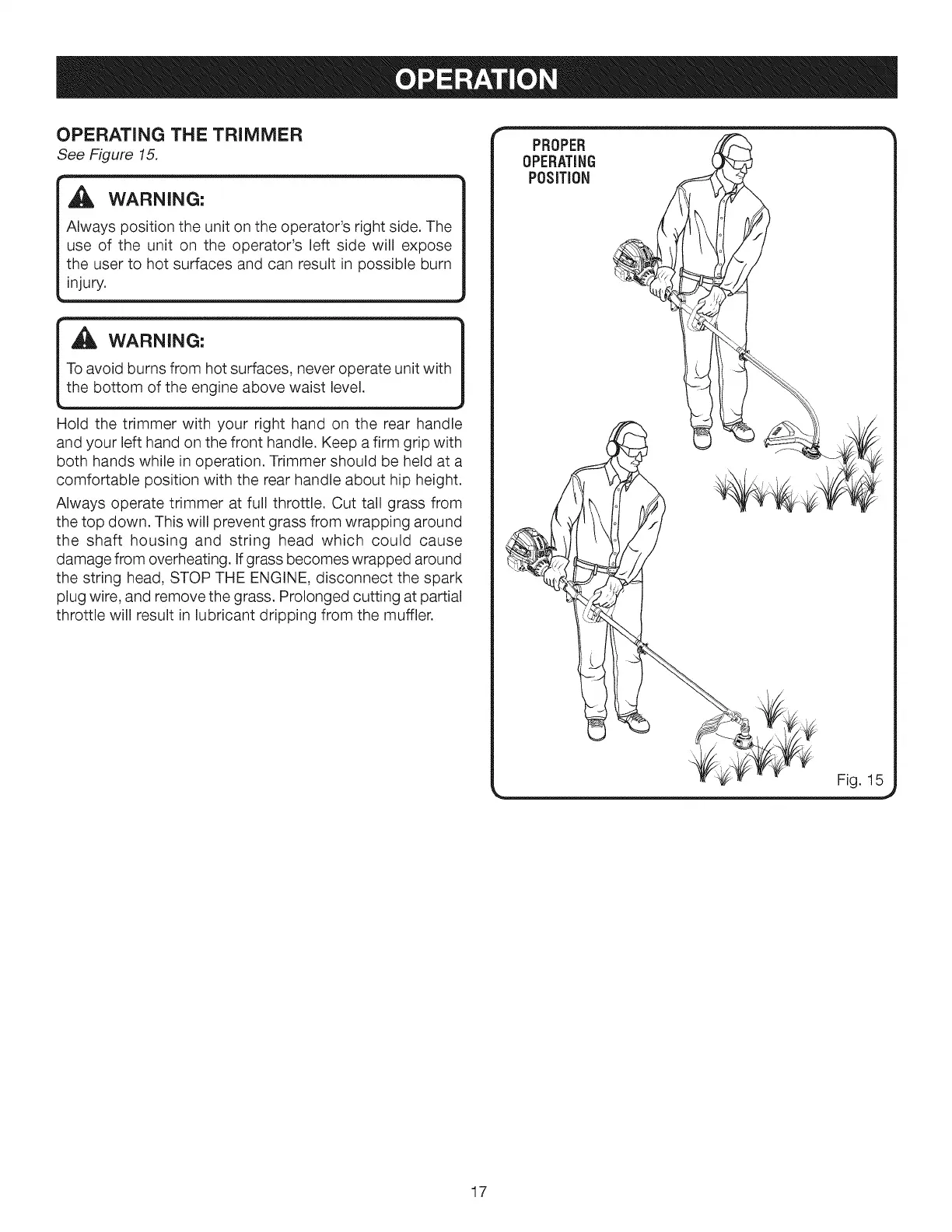

OPERATING THE TRIMMER
See Figure15.
,_ WARNING:
Always position the unit on the operator's right side. The
use of the unit on the operator's left side will expose
the user to hot surfaces and can result in possible burn
injury.
_IL WARNING:
To avoid burns from hot surfaces, never operate unit with
the bottom of the engine above waist level.
Hold the trimmer with your right hand on the rear handle
and your left hand on the front handle. Keep a firm grip with
both hands while in operation. Trimmer should be held at a
comfortable position with the rear handle about hip height.
Always operate trimmer at full throttle. Cut tall grass from
the top down. This will prevent grass from wrapping around
the shaft housing and string head which could cause
damage from overheating. If grass becomes wrapped around
the string head, STOP THE ENGINE, disconnect the spark
plug wire, and remove the grass. Prolonged cutting at partial
throttle will result in lubricant dripping from the muffler.
PROPER
OPERATING
POSiTiON
Io
Fig. 15
17

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ryobi CS30 and is the answer not in the manual?

Ryobi CS30 Specifications

General IconGeneral
Engine Displacement30cc
Engine Type2-cycle
Cutting Swath17 inches
Line Diameter0.095 inches
Shaft TypeStraight
TypeGas Trimmer
Power SourceGasoline
