Ryobi CS30 User Manual

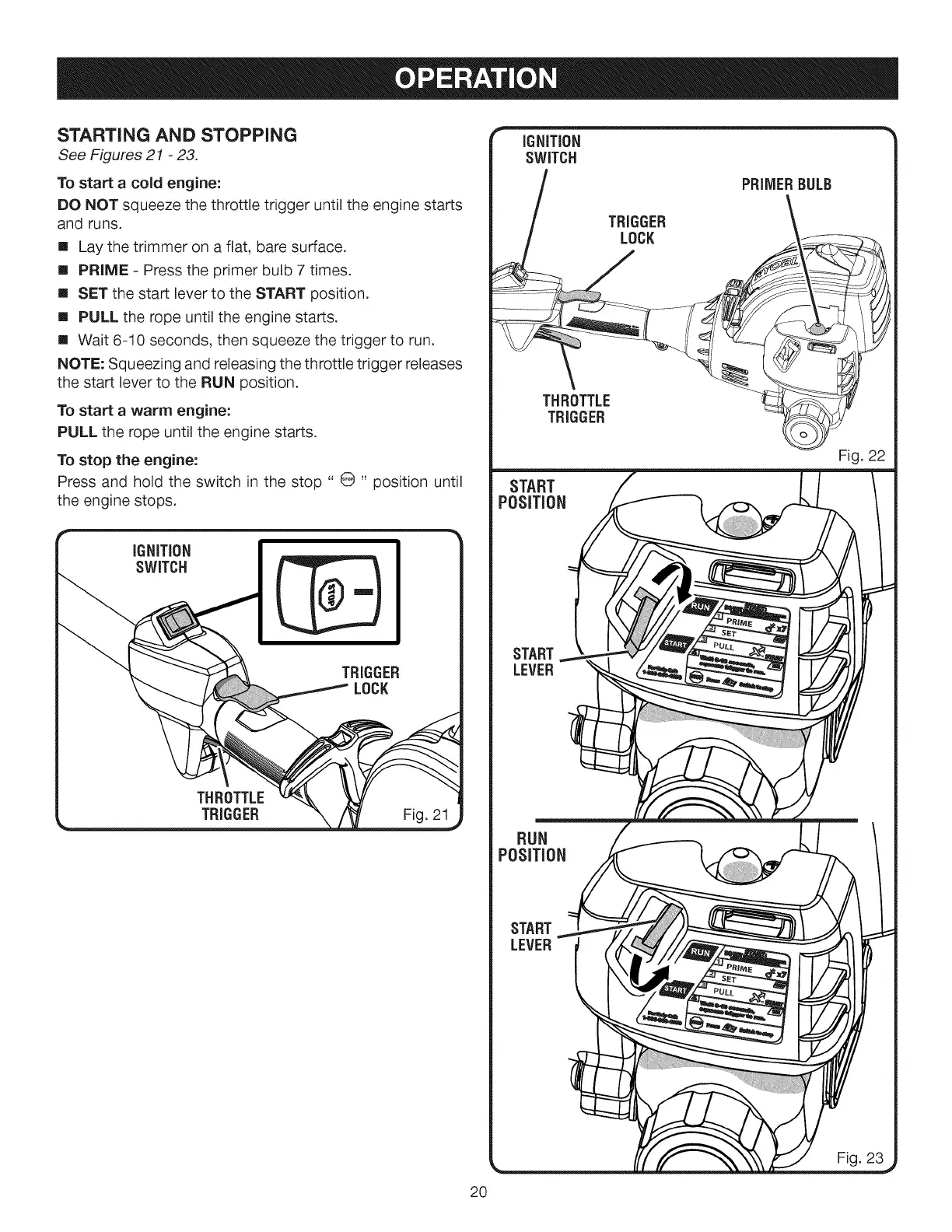

STARTING AND STOPPING
See Figures 21 - 23.
To start a cold engine:
DO NOT squeeze the throttle trigger until the engine starts
and runs.
[] Lay the trimmer on a flat, bare surface.
[] PRIME - Press the primer bulb 7 times.
[] SET the start lever to the START position.
[] PULL the rope until the engine starts.
[] Wait 6-10 seconds, then squeeze the trigger to run.
NOTE: Squeezing and releasing the throttle trigger releases
the start lever to the RUN position.
To start a warm engine:
PULL the rope until the engine starts.
To stop the engine:
Press and hold the switch in the stop " _ " position until
the engine stops.
IGNiTiON
SWITCH
TRIGGER
LOCK
THROTTLE
TRIGGER
START
POSITION
START
LEVER
RUN
POSITION
START
LEVER
Fig. 22
Fig. 23
20

Ryobi CS30 Specifications

General

Engine Displacement	30cc
Engine Type	2-cycle
Cutting Swath	17 inches
Line Diameter	0.095 inches
Shaft Type	Straight
Type	Gas Trimmer
Power Source	Gasoline
