iNSTALLiNG STRING iN REEL EASY STRING
HEAD

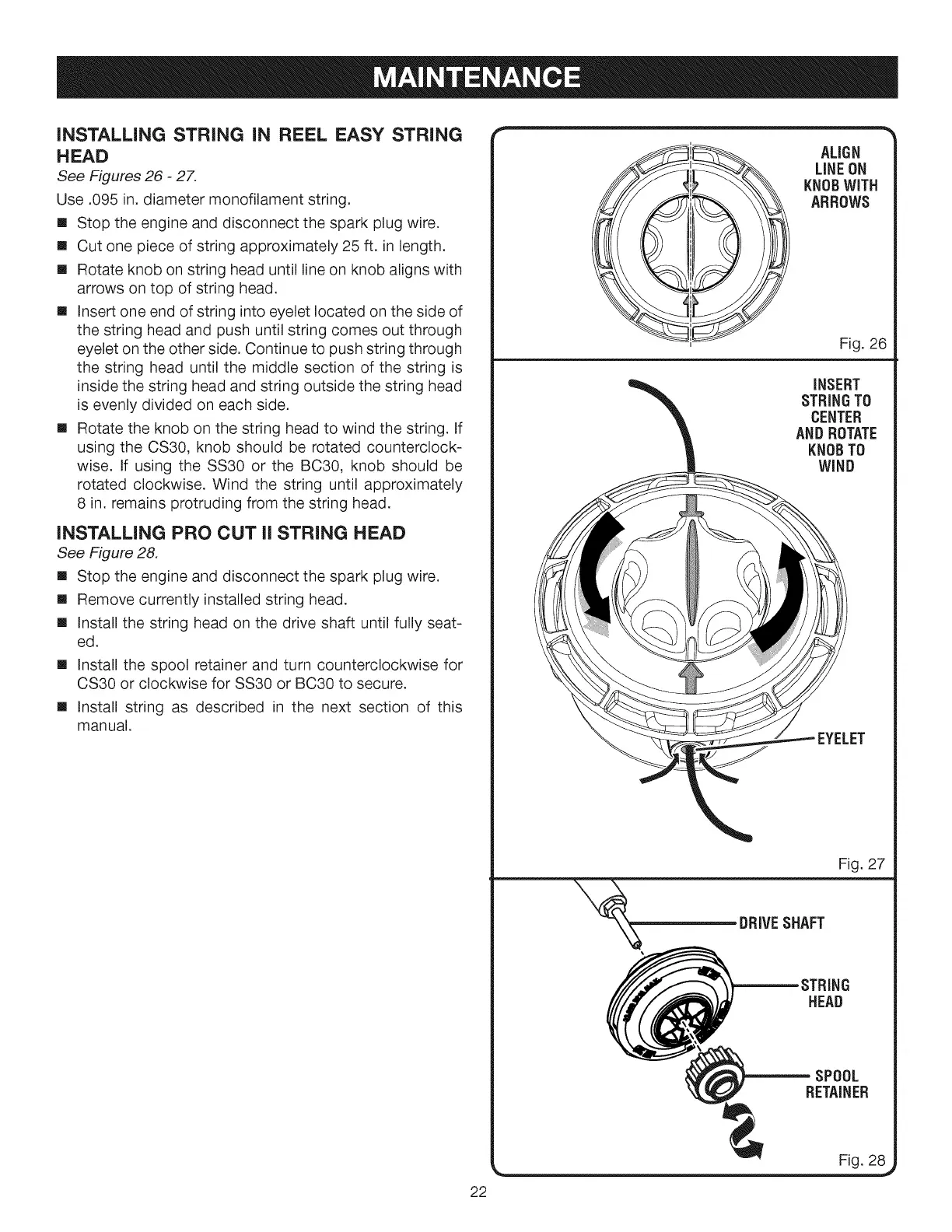

See Figures 26 - 27.
Use .095 in. diameter monofilament string.
[] Stop the engine and disconnect the spark plug wire.
[] Cut one piece of string approximately 25 ft. in length.
[] Rotate knob on string head until line on knob aligns with
arrows on top of string head.
[] Insert one end of string into eyelet located on the side of
the string head and push until string comes out through
eyelet on the other side. Continue to push string through
the string head until the middle section of the string is
inside the string head and string outside the string head
is evenly divided on each side.
[] Rotate the knob on the string head to wind the string. If
using the CS30, knob should be rotated counterclock-
wise. If using the SS30 or the BC30, knob should be
rotated clockwise. Wind the string until approximately
8 in. remains protruding from the string head.
INSTALLING PRO CUT II STRING HEAD
See Figure 28.
[] Stop the engine and disconnect the spark plug wire.
[] Remove currently installed string head.
[] Install the string head on the drive shaft until fully seat-
ed.
[] Install the spool retainer and turn counterclockwise for
CS30 or clockwise for SS30 or BC30 to secure.
[] Install string as described in the next section of this
manual.
i
ALIGN
LiNE0N
KNOBWiTH
ARROWS
Fig. 26
iNSERT
STRINGTO
CENTER
ANDROTATE
KNOBTO
WIND
DRIVESHAFT
STRING
HEAD
Fig. 27
SPOOL
RETAINER
Fig. 28
